DESCRIPTION
SA Series is a Cleaning-Robots from Sprint Autotech. It is built for Cleaning, Scheduling, Monitoring.

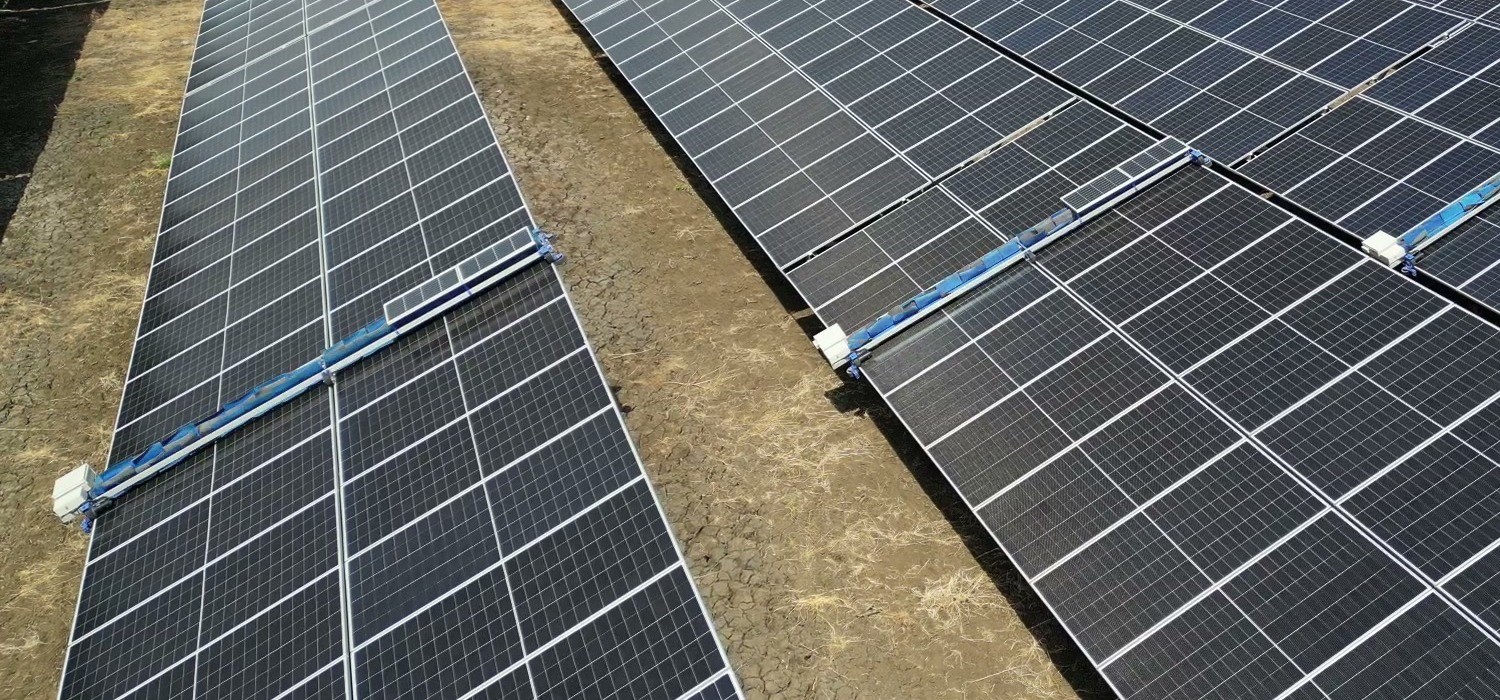

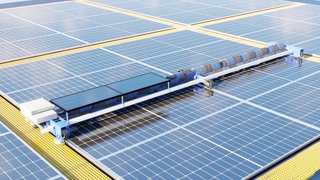

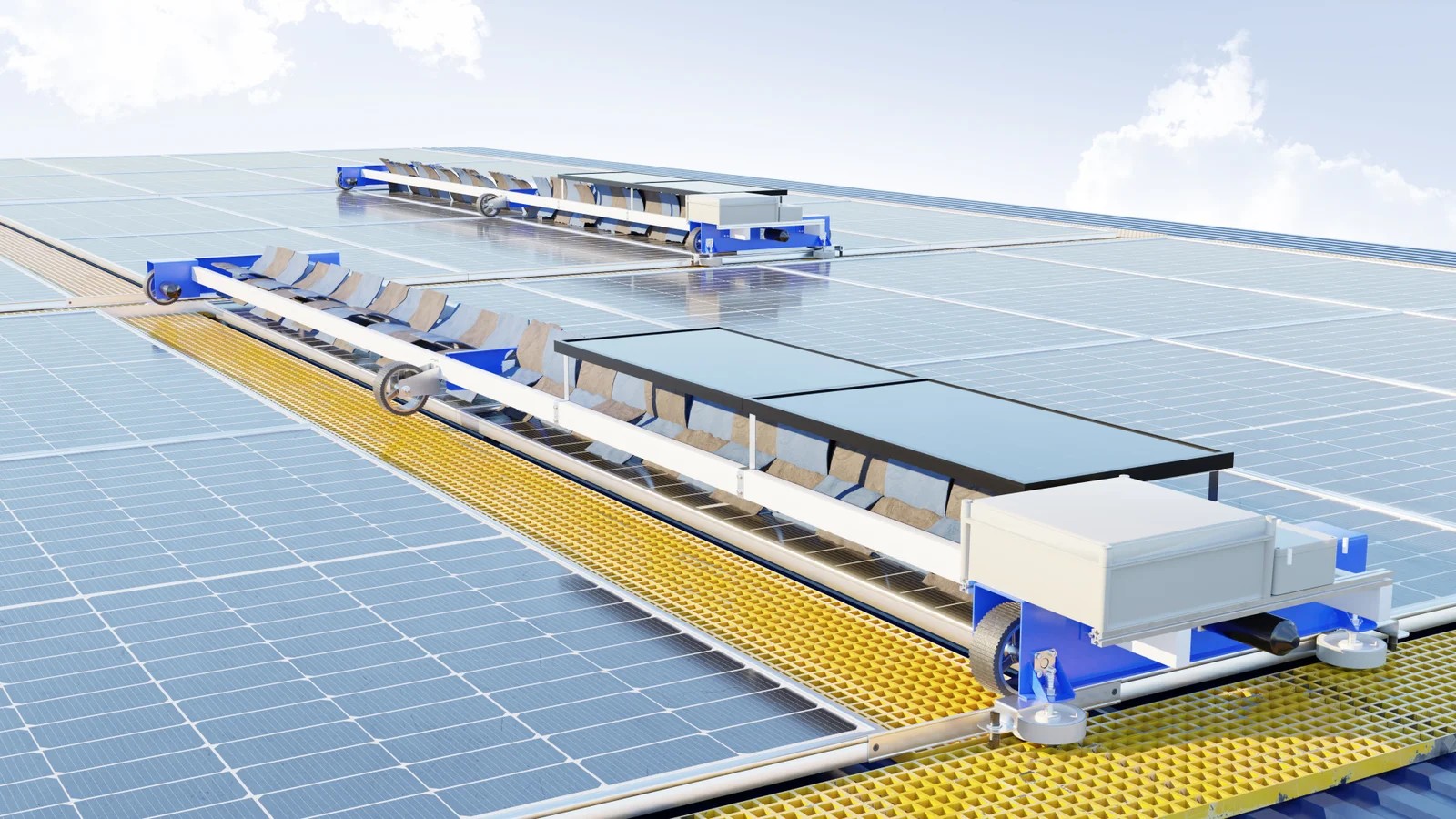

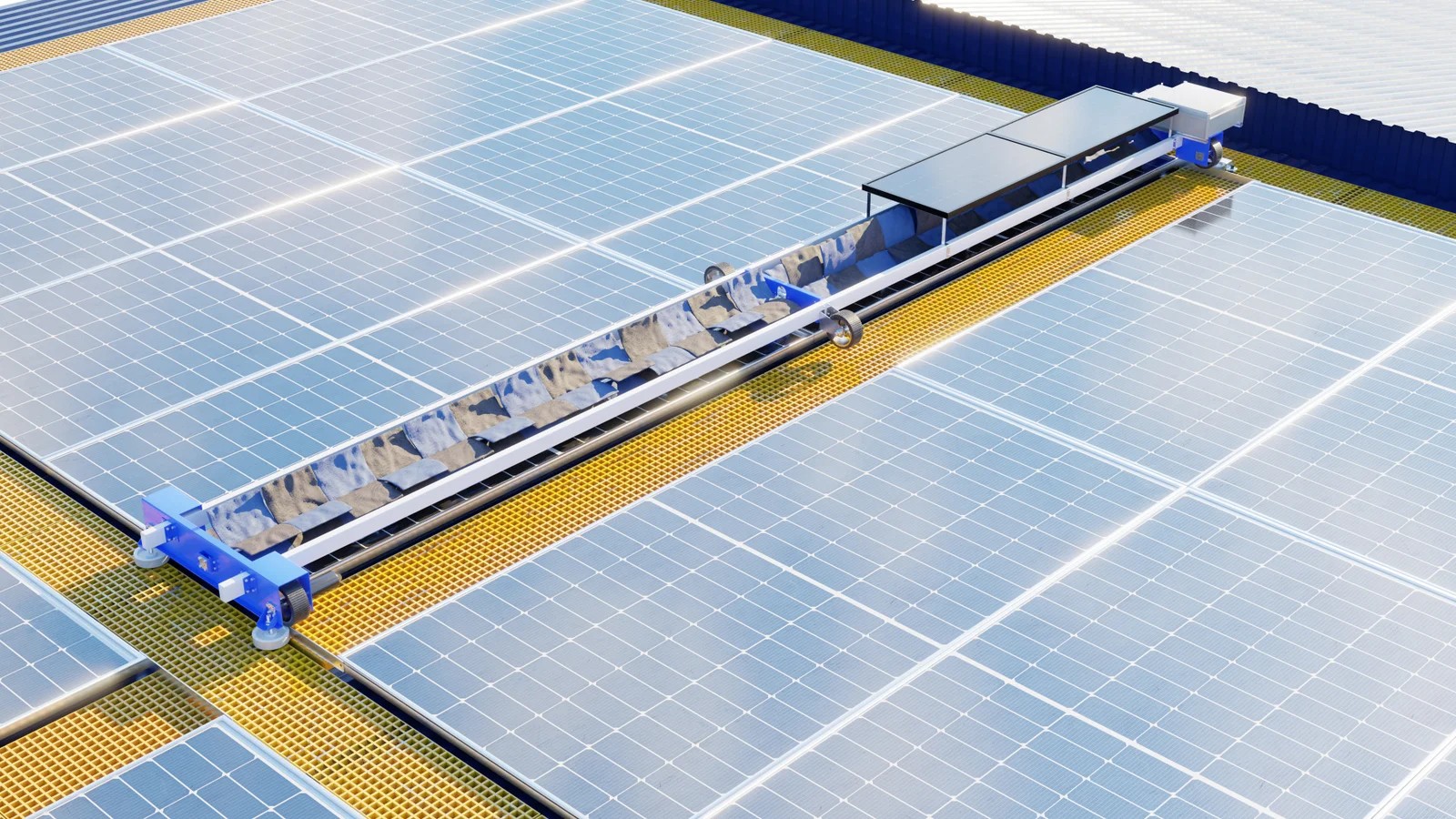

The SA Series are waterless solar panel cleaning robots from Sprint Autotech for utility and rooftop solar plants. The range has two lines: the SA-MF models wipe the modules with microfibre, while the SA-NB models sweep them with ultra-soft, UV-modified PBT bristles. Each line comes in three widths, -02, -04 and -06, sized for tables two, four or six modules long. The robot is fixed to side rails along the panel table and travels the length of the row on its own, removing dust and bird droppings without water. At each end of the row it returns to a docking station, where an automatic mechanism locks it in place. A 24 V, 25 Ah LiFePO4 battery is charged by an onboard solar panel in under four hours, and limit detection at both ends, overcurrent and short-circuit protection and an emergency stop button are built in. The electronics are rated IP65. Sprint Autotech states that a robot can clean up to 1 km of row in under an hour with about 95 percent cleaning efficiency, and that it works at up to 60 C and 100 percent humidity. The models weigh under 30, 42 and 55 kg respectively. Plant owners track battery, working hours and schedules in an app, and can buy the robots or rent them with maintenance included.
FEATURES
- Two lines: SA-MF (microfibre cleaning) and SA-NB (ultra-soft UV-modified PBT bristles)
- Sizes -02, -04 and -06 for tables 2, 4 or 6 modules long
- SA-MF-02 / SA-NB-02: under 30 kg, 2 x 60 W 24 V drive motors, 100 W cleaning motor, 40 mm misalignment tolerance
- SA-MF-04 / SA-NB-04: under 42 kg, 2 x 80 W 24 V drive motors, 150 W cleaning motor, 50 mm misalignment tolerance
- SA-MF-06 / SA-NB-06: under 55 kg, 2 x 100 W 24 V drive motors, 200 W cleaning motor, 60 mm misalignment tolerance
- Dust collection optional on all models
- 100% waterless cleaning of dust, debris and bird droppings
- Travels automatically along side rails fixed to the panel table
- Automatic locking at docking stations at either end of the row
- Cleans up to 1 km in under an hour (company claim)
- Up to 95% cleaning efficiency (company claim)
- 24 V DC 25 Ah LiFePO4 battery (capacity per model)
- battery life 5-7 years
- Onboard solar panel
- fully automatic charging in under 4 hours
- IP65 electronics
- End-to-end limit detection
- Overcurrent and short-circuit protection
- Emergency stop button
- Operates up to 60 C and 100% humidity
- Lightweight aluminium frame with shock absorption
- App dashboard for battery, working hours and operating schedules
- Available to buy or on a rental plan with maintenance included
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Materials | Aluminium frame, Microfibre (SA-MF), UV-modified PBT bristles (SA-NB) |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Environment | Outdoor solar plants; up to 60 C and 100% humidity, IP65, ?°C to 60°C |
| Actuators | Electric: two 24 V drive motors and one cleaning motor |
| Power | |
| Battery Life | 24 V DC 25 Ah LiFePO4 (per model), charged by onboard solar panel |
| Sensing & Compute | |
| Software / AI | App dashboard for battery, working hours and schedules |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Materials | Aluminium frame, Microfibre (SA-MF), UV-modified PBT bristles (SA-NB) |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Environment | Outdoor solar plants; up to 60 C and 100% humidity, IP65, ?°C to 60°C |
| Actuators | Electric: two 24 V drive motors and one cleaning motor |
| Power | |
| Battery Life | 24 V DC 25 Ah LiFePO4 (per model), charged by onboard solar panel |
| Sensing & Compute | |
| Software / AI | App dashboard for battery, working hours and schedules |
Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the SA Series?
The SA Series are waterless solar panel cleaning robots from Sprint Autotech for utility and rooftop solar plants. The range has two lines: the SA-MF models wipe the modules with microfibre, while the SA-NB models sweep them with ultra-soft, UV-modified PBT bristles.
Who makes the SA Series?
The SA Series is made by Sprint Autotech, a robotics company based in India.
How much does the SA Series cost?
Sprint Autotech has not publicly announced pricing for the SA Series. You can enquire through RobotAIGeek for current pricing.
What is the SA Series used for?
The SA Series is designed for cleaning, scheduling, and monitoring. It is used in energy and cleaning & facilities settings.
