DESCRIPTION
REBORG-Z is a Mobile-Robots from ALSOK. It is built for Security, Monitoring, Patrol. Key figures: 180 kg, 120 min runtime, price ¥12,000,000, released 2019.

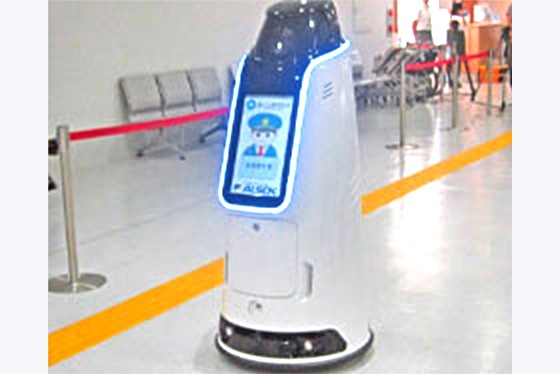

REBORG-Z is ALSOK's autonomous security and guide robot, its eleventh-generation security robot. It was unveiled at SECURITY SHOW 2019 in March 2019 and offered from spring 2019 for outright purchase or lease. It is meant to work alongside human guards rather than replace them, taking over standing watch and patrols in shopping malls, airports and stations, exhibition halls, banks, offices and factories; Mt. Fuji Shizuoka Airport was the first Japanese airport to deploy it. LiDARs on the front, rear and front diagonals let it move safely among people, ultrasonic sensors catch glass and other transparent obstacles, and touch sensors detect contact. It is dust- and water-resistant, so it can also patrol terraces and walkways outdoors. On security duty it uses face recognition to check people against a pre-registered list, detects screams and other abnormal sounds, carries flammable- and toxic-gas detectors, and spots fires with an infrared camera and flame sensor. It can sound a warning or light a deterrent lamp when someone crosses a guarded line, and sends images and alerts to guards and ALSOK control centres. A fire extinguisher and AED can be mounted as options. A touchscreen gives multilingual facility guidance with voice. ALSOK's 2025 flyer lists 700 x 700 x 1,530 mm dimensions, about 180 kg, a top speed of 4.6 km/h, slopes up to 5 degrees, six-wheel drive and a lithium-ion battery good for about two hours of continuous travel.
FEATURES
- Autonomous patrol and standing watch alongside human guards
- indoor and outdoor (dust/water resistant)
- LiDAR front, rear and diagonal
- ultrasonic sensors for glass
- touch sensors for contact
- Face recognition against a registered list (suspicious / specific persons)
- Abnormal-sound detection (e.g. screams)
- flammable and toxic gas detection
- Fire detection by infrared camera and flame sensor
- optional built-in extinguisher for initial firefighting
- Warnings and deterrent lamp when a guarded line is crossed
- images and alerts to guards / control centre
- Touchscreen facility guidance with voice
- multilingual content (EN, ZH, KO)

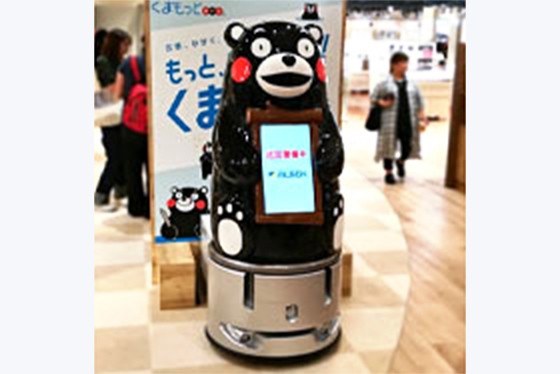

- Options: AED, fire extinguisher, custom exterior designs (e.g. Kumamon version in Kumamoto)
- 700 x 700 x 1,530 mm
- approx. 180 kg
- 4.6 km/h max (0.16 km/h min)
- +/-5 degree slopes
- 6-wheel drive
- Lithium-ion battery
- approx. 2 h continuous travel (2025 flyer)
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 180 kg |
|---|---|
| Dimensions | L 700 mm × W 700 mm × H 1.53 m |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 4.6 km/h |
| Environment | Indoor public facilities (shopping malls, airports, stations, exhibition halls, banks, offices, factories); outdoor terraces and walkways |
| Actuators | 6-wheel drive |
| Power | |
| Battery Life | 120 min |
| Sensing & Compute | |
| Sensors | LiDAR (front, rear, diagonal), ultrasonic sensors, touch sensors, cameras (face recognition), microphones (abnormal sound), gas detectors, infrared camera, flame sensor |
| Connectivity | Reports to ALSOK control centres and on-site guards |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 180 kg |
|---|---|
| Dimensions | L 700 mm × W 700 mm × H 1.53 m |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 4.6 km/h |
| Environment | Indoor public facilities (shopping malls, airports, stations, exhibition halls, banks, offices, factories); outdoor terraces and walkways |
| Actuators | 6-wheel drive |
| Power | |
| Battery Life | 120 min |
| Sensing & Compute | |
| Sensors | LiDAR (front, rear, diagonal), ultrasonic sensors, touch sensors, cameras (face recognition), microphones (abnormal sound), gas detectors, infrared camera, flame sensor |
| Connectivity | Reports to ALSOK control centres and on-site guards |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the REBORG-Z?
REBORG-Z is ALSOK's autonomous security and guide robot, its eleventh-generation security robot. It was unveiled at SECURITY SHOW 2019 in March 2019 and offered from spring 2019 for outright purchase or lease.
Who makes the REBORG-Z?
The REBORG-Z is made by ALSOK, a robotics company based in Japan.
How much does the REBORG-Z cost?
The REBORG-Z is priced at around ¥12,000,000.
What is the REBORG-Z used for?
The REBORG-Z is designed for security, monitoring, patrol, and security patrols and standing watch, anomaly detection (sound, gas, fire, faces), facility guidance. It is used in commercial, facilities, airports, and retail settings.
How much does the REBORG-Z weigh?
The REBORG-Z weighs 180 kg.
How fast is the REBORG-Z?
The REBORG-Z can move at speeds of up to 4.6 km/h.
What is the battery life of the REBORG-Z?
The REBORG-Z runs for about 120 minutes on a charge.
When was the REBORG-Z released?
The REBORG-Z was released in 2019.
