DESCRIPTION
R-GAIT is a Medical-Robots from BTL Industries. It is built for Medical-Assistance, Helping, Gait rehabilitation for stroke, TBI, cerebral palsy, MS and Parkinson's. Key figures: 175 kg payload.

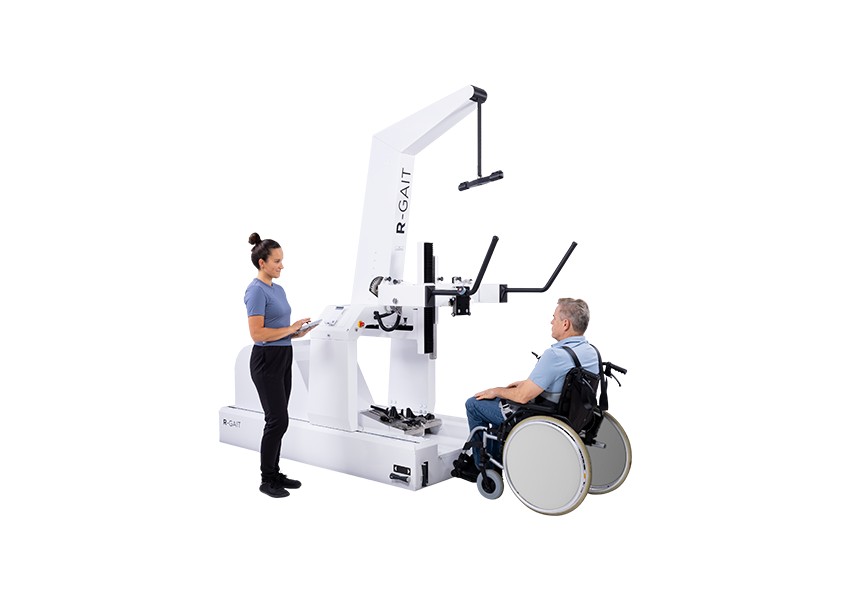

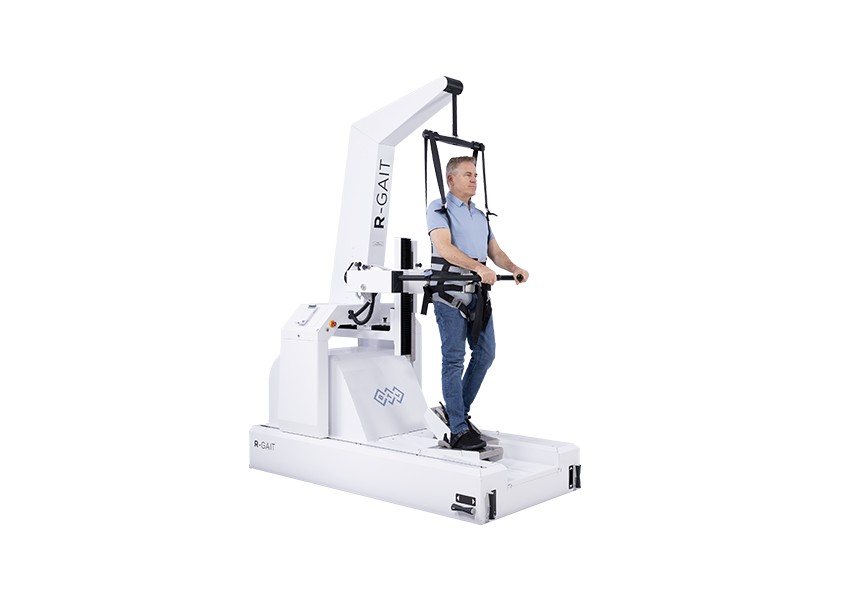

R-GAIT is BTL's end-effector robotic gait trainer for neurorehabilitation. Instead of an exoskeleton strapped to the legs, motorised footplates guide the patient's feet through the walking cycle while the patient is supported from above, so people can start relearning to walk early after a stroke or injury. Flexible footplates actively flex the metatarsal joint, the pelvis moves in three dimensions (vertical, horizontal and rotational), and dynamic body-weight support is synchronised with the rhythm of walking to reproduce a natural gait. Patients can take up to 1,500 steps in under 30 minutes, and setup takes less than five minutes. It works in passive or assistive mode and suits patients weighing up to 175 kg as well as children from 80 cm tall. Sixteen sensors in the footplates give therapists real-time feedback, motivational on-screen exercises keep patients engaged, and session data is stored in a patient database for export. BTL positions it for stroke, traumatic brain injury, cerebral palsy, multiple sclerosis, Parkinson's disease and other neurological conditions.
FEATURES
- End-effector gait robot: motorised footplates guide the stance and swing phases
- Flexible footplates that flex the metatarsal joint
- 3D pelvic motion (vertical, horizontal, rotational)
- Dynamic body-weight support synchronised with the gait rhythm
- Up to 1,500 steps in under 30 minutes
- patient setup under 5 minutes
- Passive and assistive modes
- Patients up to 175 kg
- children from 80 cm height
- 16 footplate sensors with real-time feedback

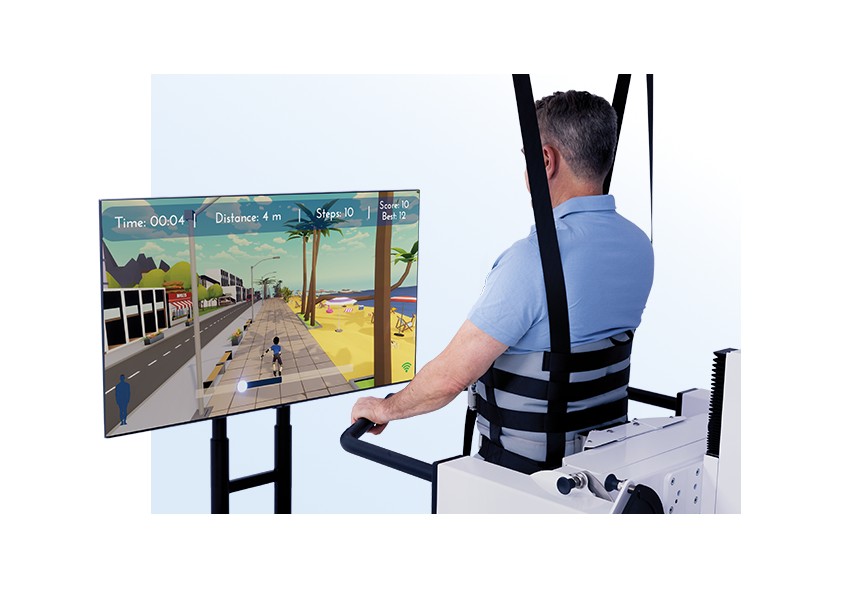

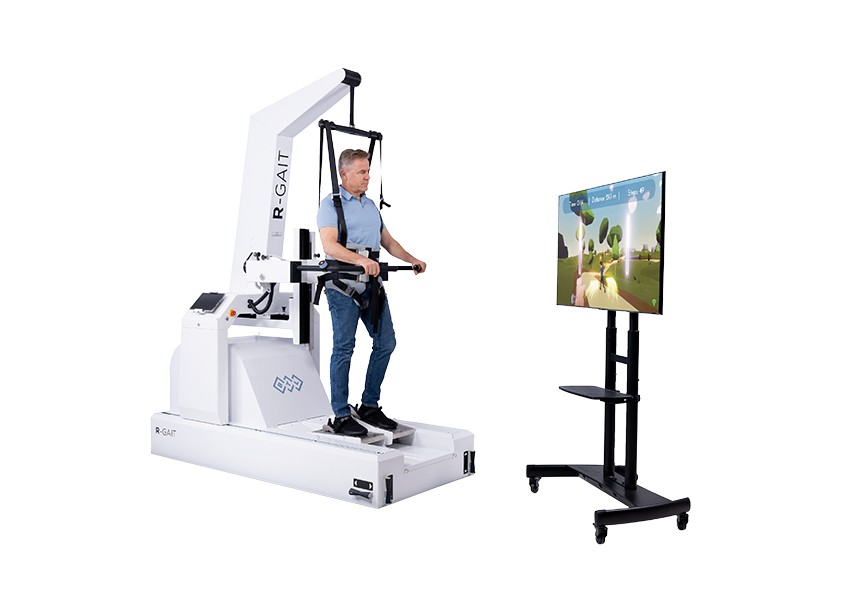

- interactive exercises
- patient database
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 175 kg |
|---|---|
| Mobility | |
| Movement Type | Stationary |
| Environment | Rehabilitation clinics and hospitals (adult and paediatric neurorehabilitation) |
| Sensing & Compute | |
| Sensors | 16 footplate force/position sensors |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 175 kg |
|---|---|
| Mobility | |
| Movement Type | Stationary |
| Environment | Rehabilitation clinics and hospitals (adult and paediatric neurorehabilitation) |
| Sensing & Compute | |
| Sensors | 16 footplate force/position sensors |
Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the R-GAIT?
R-GAIT is BTL's end-effector robotic gait trainer for neurorehabilitation. Instead of an exoskeleton strapped to the legs, motorised footplates guide the patient's feet through the walking cycle while the patient is supported from above, so people can start relearning to walk early after a stroke or injury.
Who makes the R-GAIT?
The R-GAIT is made by BTL Industries, a robotics company based in Czechia.
How much does the R-GAIT cost?
BTL Industries has not publicly announced pricing for the R-GAIT. You can enquire through RobotAIGeek for current pricing.
What is the R-GAIT used for?
The R-GAIT is designed for medical-assistance, helping, and gait rehabilitation for stroke, tbi, cerebral palsy, ms and parkinson's. It is used in healthcare settings.
What is the payload capacity of the R-GAIT?
The R-GAIT has a payload capacity of 175 kg.
