DESCRIPTION
Proprio Foot is a Medical-Robots from Össur. It is built for Medical-Assistance, Helping, Powered lower-limb prosthesis (ankle-foot). Key figures: 1 degrees of freedom.

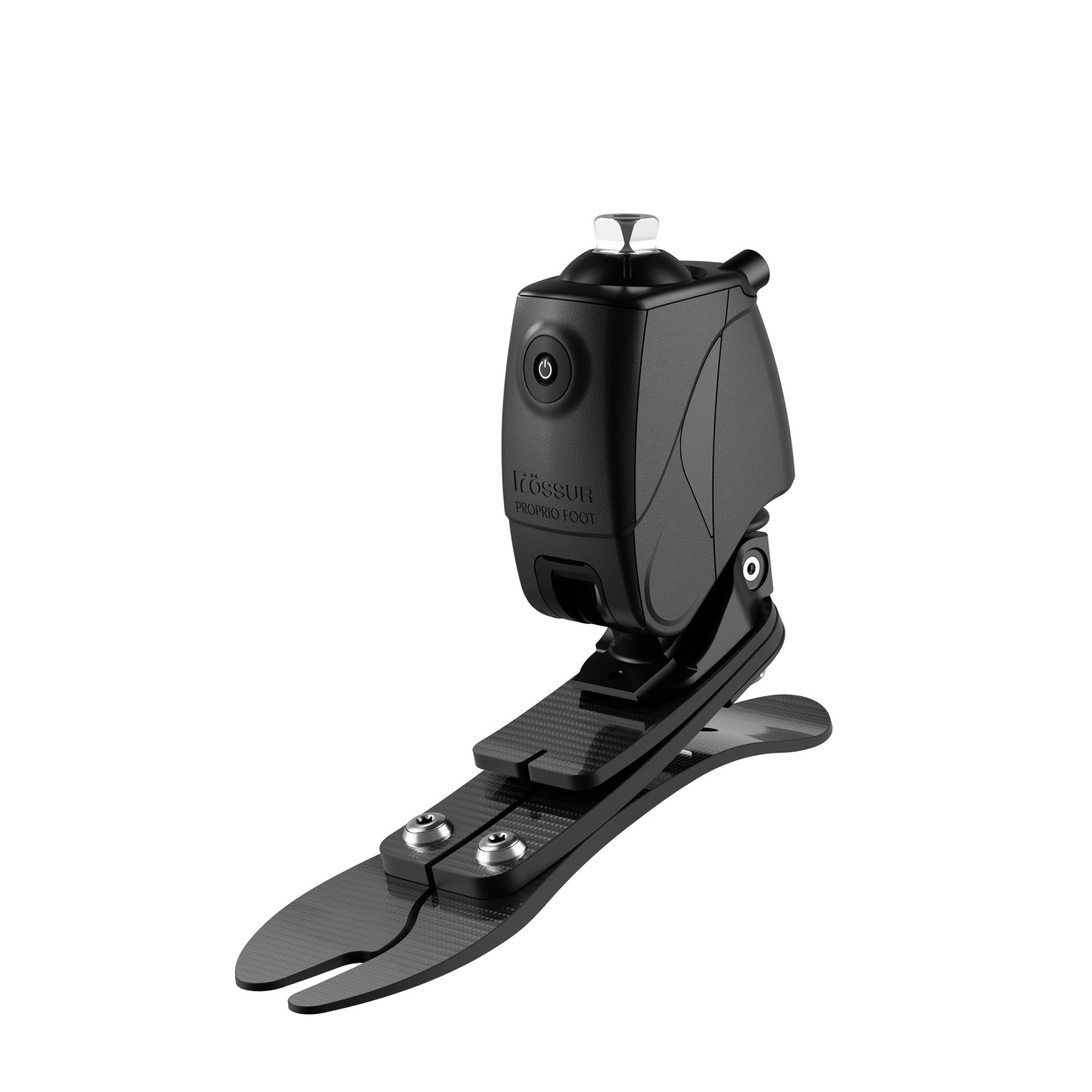

Proprio Foot is Össur's motorized microprocessor ankle-foot prosthesis. First launched in 2006 as the world's first microprocessor ankle, it pairs a motor-driven ankle with the carbon-fibre Pro-Flex foot module. On every step the motor actively lifts the toe during swing for extra clearance and repositions the foot for heel contact; in field testing Össur reports 46% fewer stumbles and 70% fewer falls than users' previous prostheses. Sensors continuously track surface angle and acceleration so the ankle pre-positions for inclines, declines and stairs, with 33 degrees of motorized range of motion. Relax mode and chair exit mimic natural ankle motion when sitting and standing up, and auto-alignment re-sets the ankle for different shoe heights at the touch of a button. The current version is fully submersible to IP67 in fresh and salt water, runs up to two days on a charge, supports users up to 125 kg and carries a three-year warranty. It is set up and personalised through the Össur Logic app and is compatible with Össur's Unity vacuum suspension.
FEATURES
- Motorized ankle with active toe lift (dorsiflexion) in swing phase
- Terrain adaptation for inclines, declines and stairs
- 33-degree motorized range of motion
- Relax mode, chair exit and push-button auto-alignment for different footwear
- Pro-Flex carbon foot module for energy return
- IP67 - submersible in fresh and salt water
- Battery up to 2 days per charge
- User weight limit 125 kg
- K2-K3 (K4 per brochure)
- 3-year warranty
- Össur Logic app
- Unity vacuum suspension compatible
TECHNICAL SPECIFICATIONS
Verified| Mobility | |
| Movement Type | Other |
|---|---|
| Degrees of Freedom | 1 |
| Environment | Worn daily by people with below-knee or higher limb loss; IP67, fresh and salt water |
| Actuators | Electric motor-driven ankle; Pro-Flex carbon foot |
| Power | |
| Battery Life | Up to 2 days per charge |
| Sensing & Compute | |
| Sensors | Surface-angle and acceleration sensors |
| Connectivity | Bluetooth (Össur Logic app) |
| Software / AI | Össur Logic app |
TECHNICAL SPECIFICATIONS
Verified| Mobility | |
| Movement Type | Other |
|---|---|
| Degrees of Freedom | 1 |
| Environment | Worn daily by people with below-knee or higher limb loss; IP67, fresh and salt water |
| Actuators | Electric motor-driven ankle; Pro-Flex carbon foot |
| Power | |
| Battery Life | Up to 2 days per charge |
| Sensing & Compute | |
| Sensors | Surface-angle and acceleration sensors |
| Connectivity | Bluetooth (Össur Logic app) |
| Software / AI | Össur Logic app |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Proprio Foot?
Proprio Foot is Össur's motorized microprocessor ankle-foot prosthesis. First launched in 2006 as the world's first microprocessor ankle, it pairs a motor-driven ankle with the carbon-fibre Pro-Flex foot module.
Who makes the Proprio Foot?
The Proprio Foot is made by Össur, a robotics company based in Iceland.
How much does the Proprio Foot cost?
Össur has not publicly announced pricing for the Proprio Foot. You can enquire through RobotAIGeek for current pricing.
What is the Proprio Foot used for?
The Proprio Foot is designed for medical-assistance, helping, and powered lower-limb prosthesis (ankle-foot). It is used in consumer and healthcare settings.
What is the battery life of the Proprio Foot?
The Proprio Foot runs for Up to 2 days per charge on a charge.
How many degrees of freedom does the Proprio Foot have?
The Proprio Foot has 1 degrees of freedom.
