DESCRIPTION
PA-AMR High Capacity Model is a Mobile-Robots from Rapyuta Robotics. It is built for Intralogistics, Picking, Transport. Key figures: 45 kg, 480 min runtime, 45 kg payload.

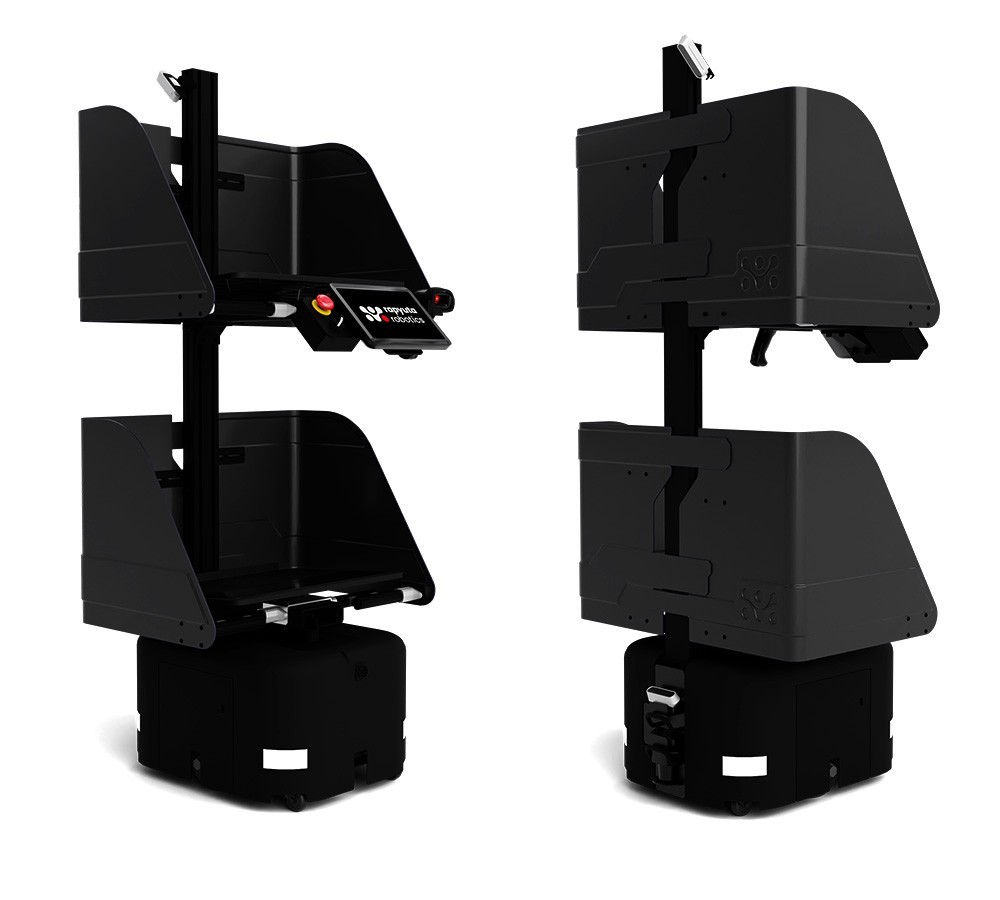

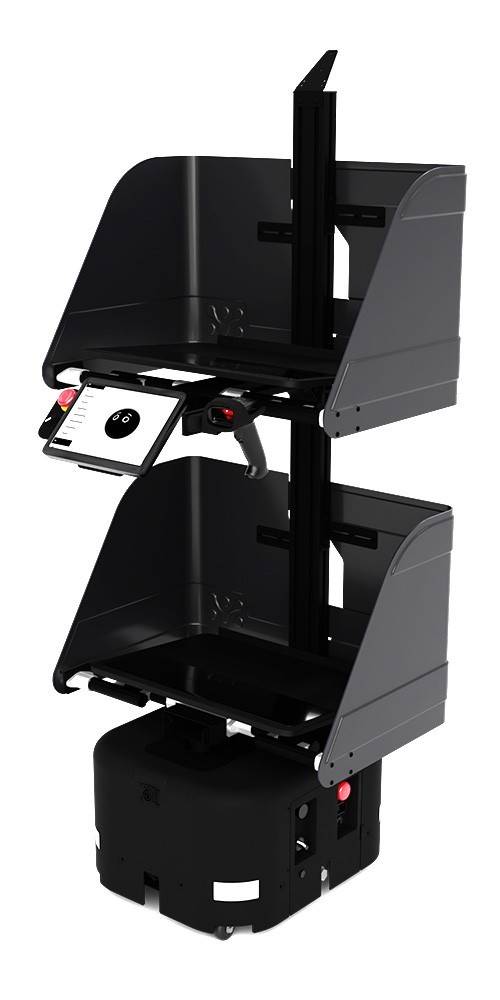

The Rapyuta PA-AMR High Capacity Model is a pick-assist autonomous mobile robot for warehouses with large items such as shoe boxes, apparel and household goods. It carries two 75-litre totes on tilted top and bottom trays behind an open front and width-adjustable covers, and leads pickers through the aisles on routes planned by Rapyuta's AI, so they only pick and place while the robot does the walking and transport. A touch screen and barcode scanner sit between the trays, with an E-stop and four indicator LEDs. The robot carries 45 kg, weighs about 45 kg, travels at up to 1.4 m/s (adjustable), runs about eight hours and recharges in two, and suits sites with more than about 1,000 m2 of picking space, seven or more pickers and aisles of at least 1.2 m.
FEATURES
- Capacity 2 x 75 L totes
- payload 45 kg

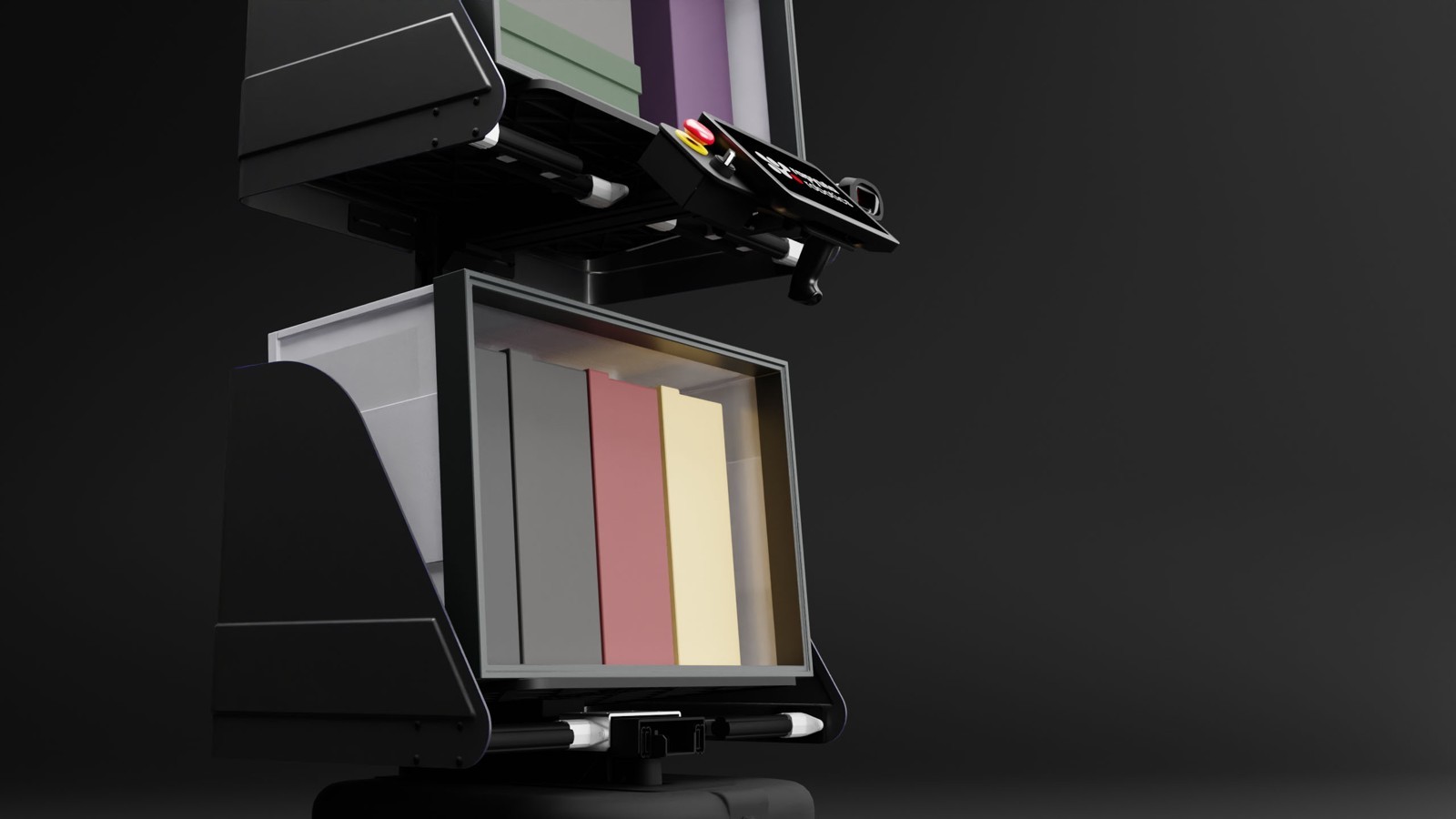

- Open front, tilted trays, width-adjustable covers

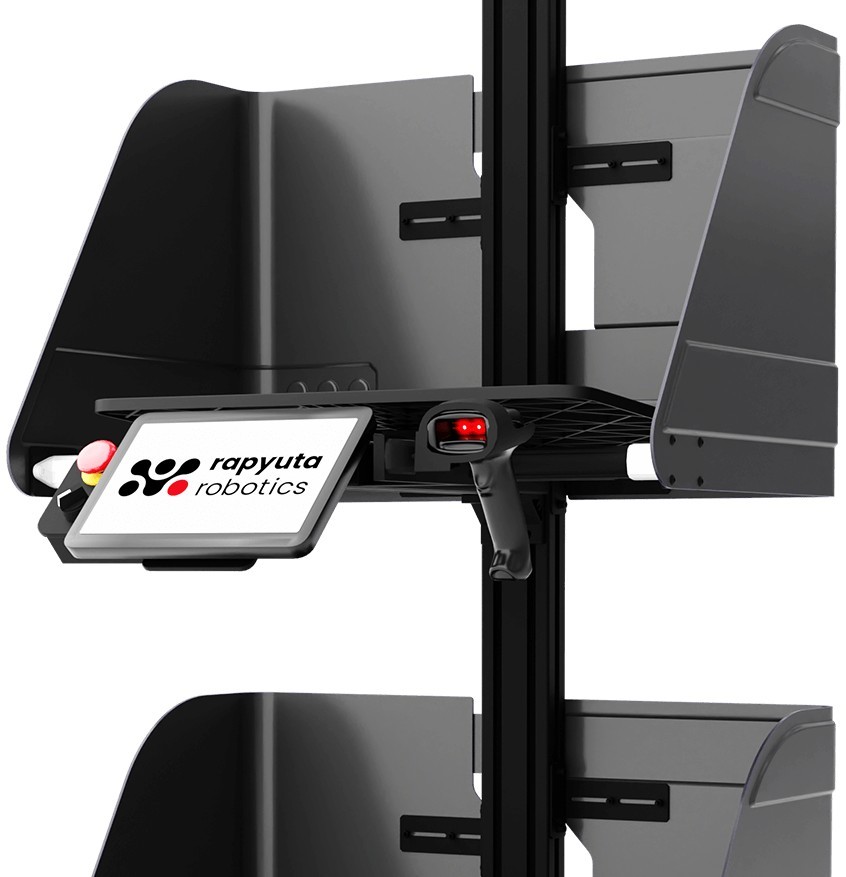

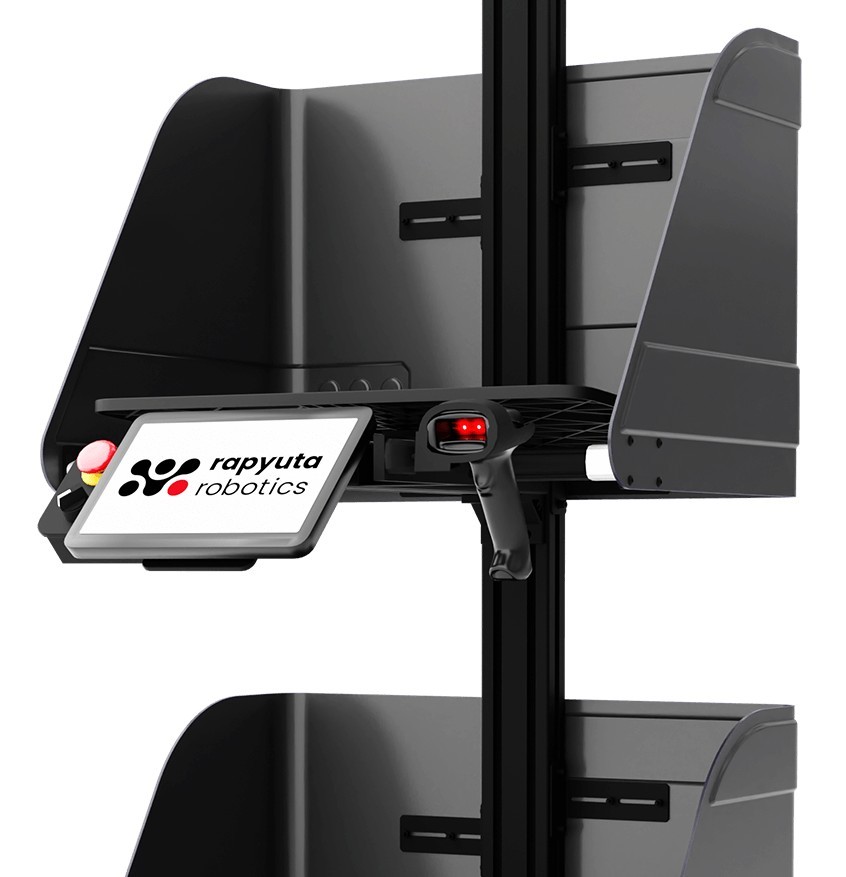

- Touch screen, barcode scanner, E-stop, 4 indicator LEDs
- Max speed 1.4 m/s (adjustable)
- Weight about 45 kg
- About 8 h operation
- 2 h charging
- Operating 0-40 C
- 0-80 % RH
- Suits >10,000 sq ft picking space, 7+ pickers, aisles >= 1.2 m
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 45 kg |
|---|---|
| Payload | 45 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.04 km/h |
| Environment | Indoor logistics warehouses, 0-40 C, 0-80 % RH non-condensing |
| Power | |
| Battery Life | 480 min |
| Charging Type | Charging station; 2 h |
| Sensing & Compute | |
| Sensors | LiDAR, 3D cameras, barcode scanner |
| Connectivity | rapyuta.io cloud fleet management |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 45 kg |
|---|---|
| Payload | 45 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.04 km/h |
| Environment | Indoor logistics warehouses, 0-40 C, 0-80 % RH non-condensing |
| Power | |
| Battery Life | 480 min |
| Charging Type | Charging station; 2 h |
| Sensing & Compute | |
| Sensors | LiDAR, 3D cameras, barcode scanner |
| Connectivity | rapyuta.io cloud fleet management |
Images
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the PA-AMR High Capacity Model?
The Rapyuta PA-AMR High Capacity Model is a pick-assist autonomous mobile robot for warehouses with large items such as shoe boxes, apparel and household goods.
Who makes the PA-AMR High Capacity Model?
The PA-AMR High Capacity Model is made by Rapyuta Robotics, a robotics company based in Japan.
How much does the PA-AMR High Capacity Model cost?
Rapyuta Robotics has not publicly announced pricing for the PA-AMR High Capacity Model. You can enquire through RobotAIGeek for current pricing.
What is the PA-AMR High Capacity Model used for?
The PA-AMR High Capacity Model is designed for intralogistics, picking, transport, and warehouse automation. It is used in warehouse & logistics and retail settings.
What is the payload capacity of the PA-AMR High Capacity Model?
The PA-AMR High Capacity Model has a payload capacity of 45 kg.
How much does the PA-AMR High Capacity Model weigh?
The PA-AMR High Capacity Model weighs 45 kg.
How fast is the PA-AMR High Capacity Model?
The PA-AMR High Capacity Model can move at speeds of up to 5.04 km/h.
What is the battery life of the PA-AMR High Capacity Model?
The PA-AMR High Capacity Model runs for about 480 minutes on a charge.
