DESCRIPTION
P-Series Case-Handling Picking Robot is a Mobile-Robots from Hangcha. It is built for Intralogistics, Material-Handling, Picking. Key figures: 480 min runtime, 300 kg payload.

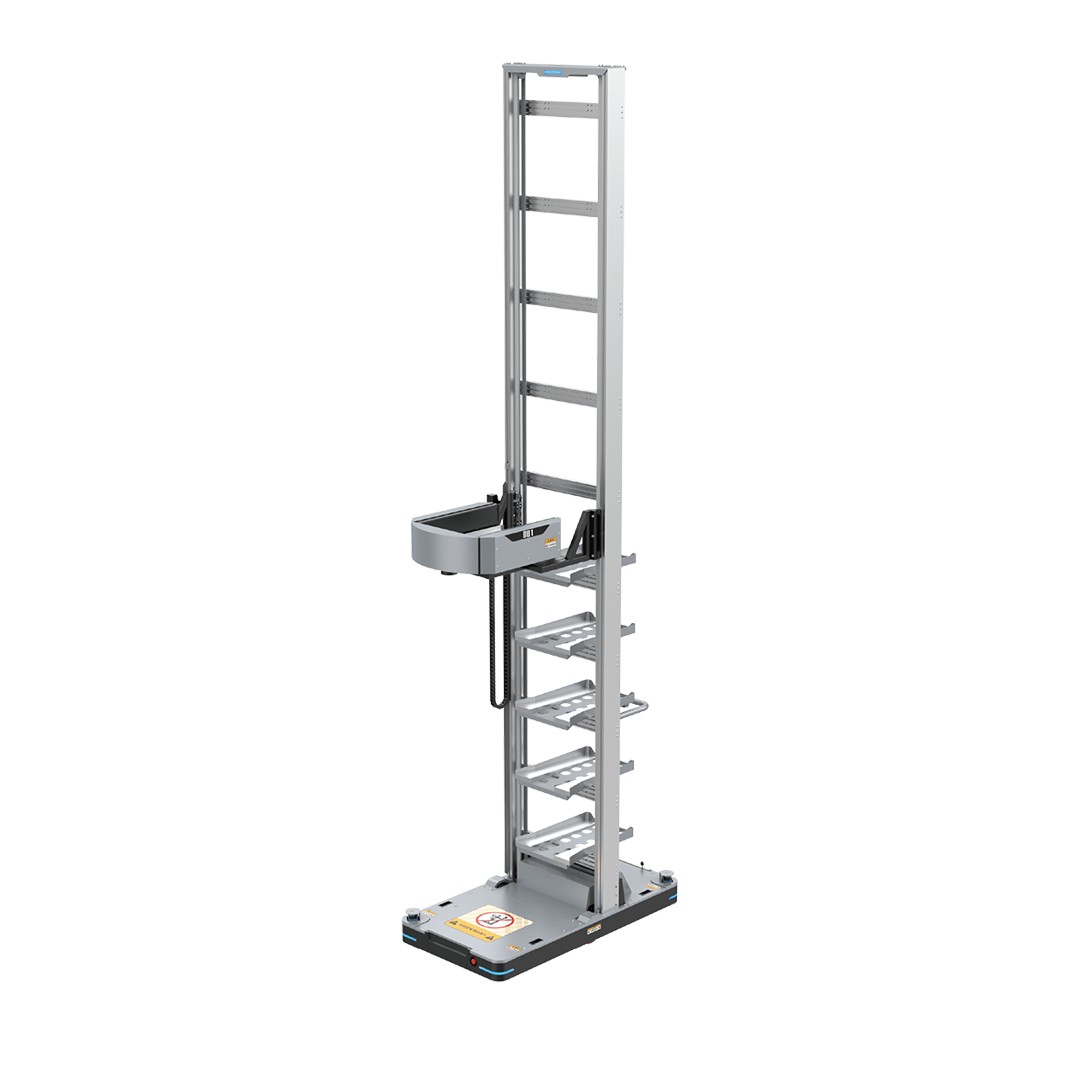

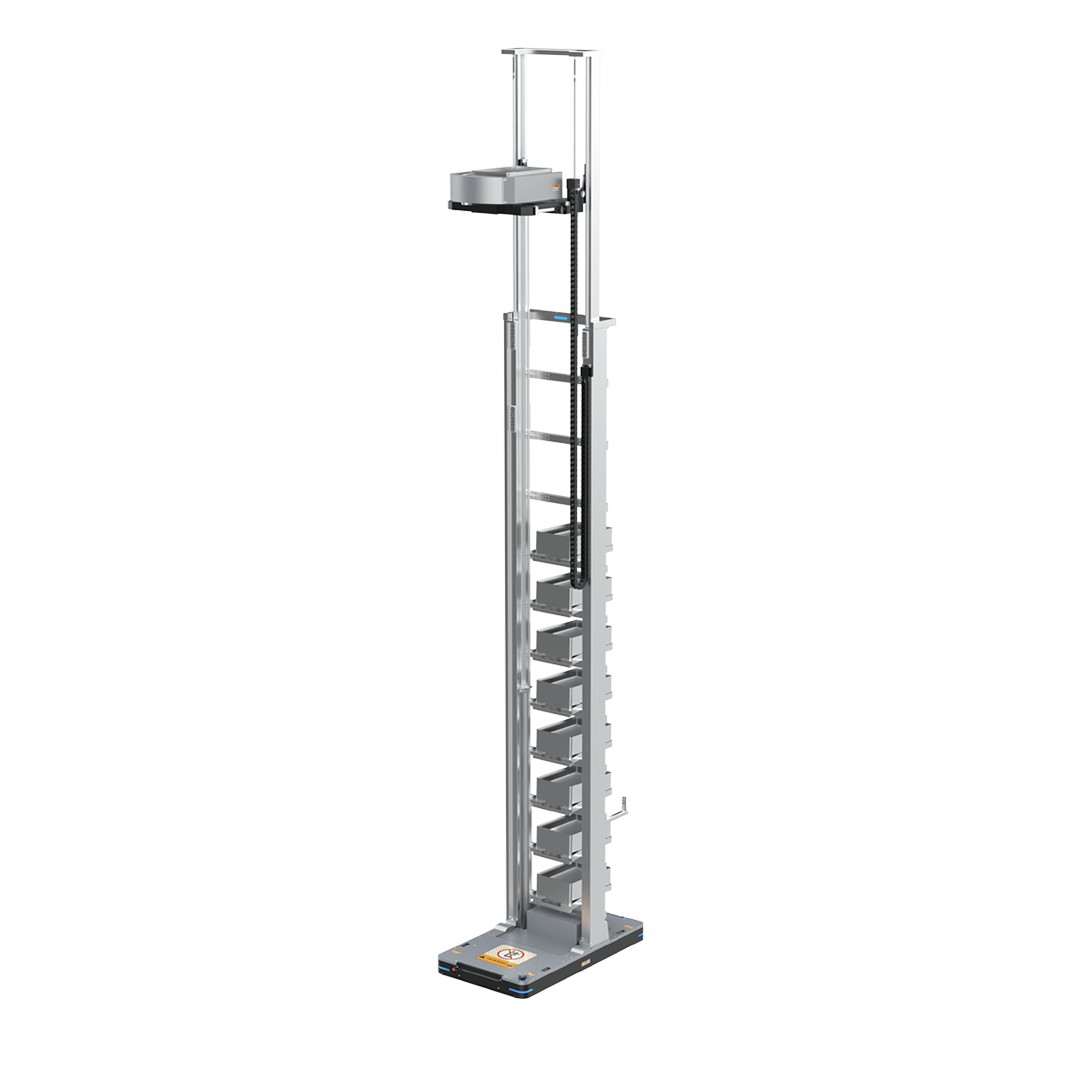

Hangcha's P-Series intelligent picking robots are tall autonomous case-handling robots for high-density bin storage. They drive into the aisles, take storage bins from the shelves with an on-board pickup unit, carry several bins at once on their gantry and bring them to workstations for order picking. Listed models are the P4, P5, P5-X-D and P5-L. They have a 300 kg rated load, a 50 kg pickup-unit load on the P5 models, a standard 5-level gantry that can be customised to 10 levels, and an overall height of 6.3 m. They weigh 500-1,160 kg, run for 8 hours and navigate by QR code or laser SLAM.
FEATURES
- P4: Rated load 300 (kg)
- Weight 520 (kg)
- Rated operating time 8 (h)
- Standard gantry layers 5 layers, up to 10 layers can be customized.
- Dimensions L×W×H 1720×1040×6300 (mm)
- Navigation methods QR code navigation / Laser SLAM
- P5: Rated load 300 (kg)
- Weight 500 (kg)
- Dimensions L×W×H 1600×880×6300 (mm)
- Standard gantry layers 5 layers, up to 10 layers can be customized.
- Maximum load of the pickup unit 50 (kg)
- Navigation methods QR code navigation / Laser SLAM
- P5-X-D: Rated load 300 (kg)
- Weight 520 (kg)
- Rated operating time 8 (h)
- Standard gantry layers 5 layers, up to 10 layers can be customized.
- Dimensions L×W×H 1720×1040×6300 (mm)
- Navigation methods QR code navigation / Laser SLAM
- P5-L: Rated load 300 (kg)
- Weight 1160 (kg)
- Standard gantry layers 5 layers, up to 10 layers can be customized.
- Rated operating time 8 (h)
- Navigation methods QR code navigation / Laser SLAM
- Maximum load of pickup unit 50 (kg)
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 300 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Environment | Indoor bin-storage warehouses and e-commerce fulfilment centres |
| Power | |
| Battery Life | 480 min |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 300 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Environment | Indoor bin-storage warehouses and e-commerce fulfilment centres |
| Power | |
| Battery Life | 480 min |
Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the P-Series Case-Handling Picking Robot?
Hangcha's P-Series intelligent picking robots are tall autonomous case-handling robots for high-density bin storage. They drive into the aisles, take storage bins from the shelves with an on-board pickup unit, carry several bins at once on their gantry and bring them to workstations for order picking.
Who makes the P-Series Case-Handling Picking Robot?
The P-Series Case-Handling Picking Robot is made by Hangcha, a robotics company based in China.
How much does the P-Series Case-Handling Picking Robot cost?
Hangcha has not publicly announced pricing for the P-Series Case-Handling Picking Robot. You can enquire through RobotAIGeek for current pricing.
What is the P-Series Case-Handling Picking Robot used for?
The P-Series Case-Handling Picking Robot is designed for intralogistics, material-handling, picking, and tall mobile picking robots that retrieve storage bins from shelving up to 10 levels high. It is used in warehouse & logistics, manufacturing, and retail settings.
What is the payload capacity of the P-Series Case-Handling Picking Robot?
The P-Series Case-Handling Picking Robot has a payload capacity of 300 kg.
What is the battery life of the P-Series Case-Handling Picking Robot?
The P-Series Case-Handling Picking Robot runs for about 480 minutes on a charge.
