DESCRIPTION
Optima Pro is an Educational-Robots from Zarnitza. It is built for Research, Education, Robotics education. Key figures: 5 kg, 0.3 kg payload, 400 mm reach, 5 degrees of freedom, price 195,000 RUB.

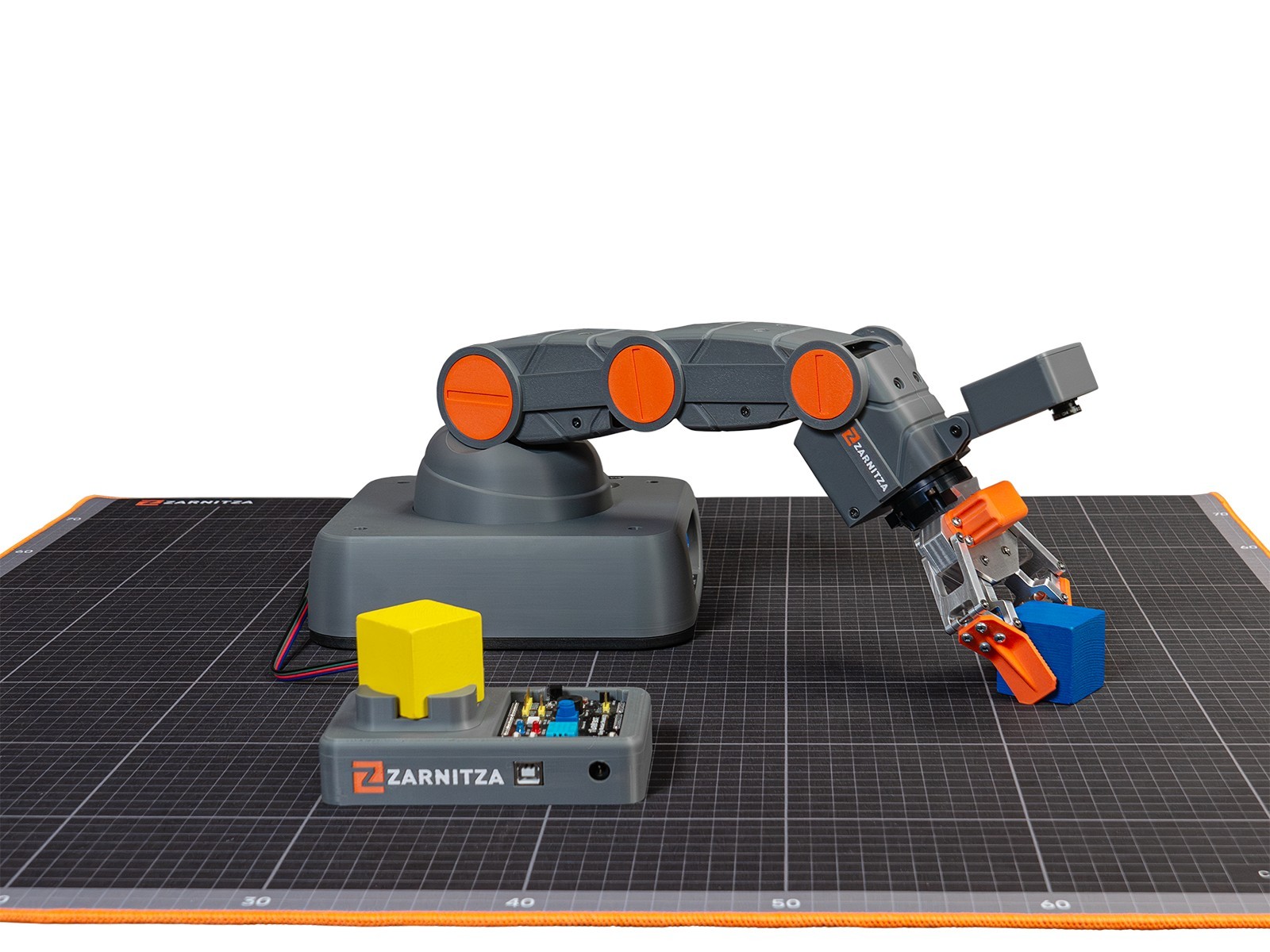

Optima Pro is Zarnitza's teaching manipulator for school, college and university robotics: a five-degree-of-freedom arm with smart servos that report angle, speed, torque, temperature and voltage in real time, and a machine-vision module whose camera recognises objects by colour, shape and QR code so the arm can sort items on its own. It recognises which tool is fitted and sets its parameters automatically, comes with an electromechanical gripper, a vacuum gripper, a sensor module and a marked work mat, and is controlled over Bluetooth. It reaches up to 400 mm, lifts 0.3 kg, weighs up to 5 kg and runs from a 12 V / 2 A adapter, and is programmed in Scratch and Arduino IDE for beginners or Python and C/C++ for deeper work - from drawing and moving objects in middle school to sorting, warehousing and palletising tasks in colleges and computer-vision research at university.
FEATURES
- 5 degrees of freedom
- Smart servos with feedback (angle, speed, torque, temperature, voltage)
- Machine-vision module: colour, shape and QR-code recognition
- Automatic tool recognition

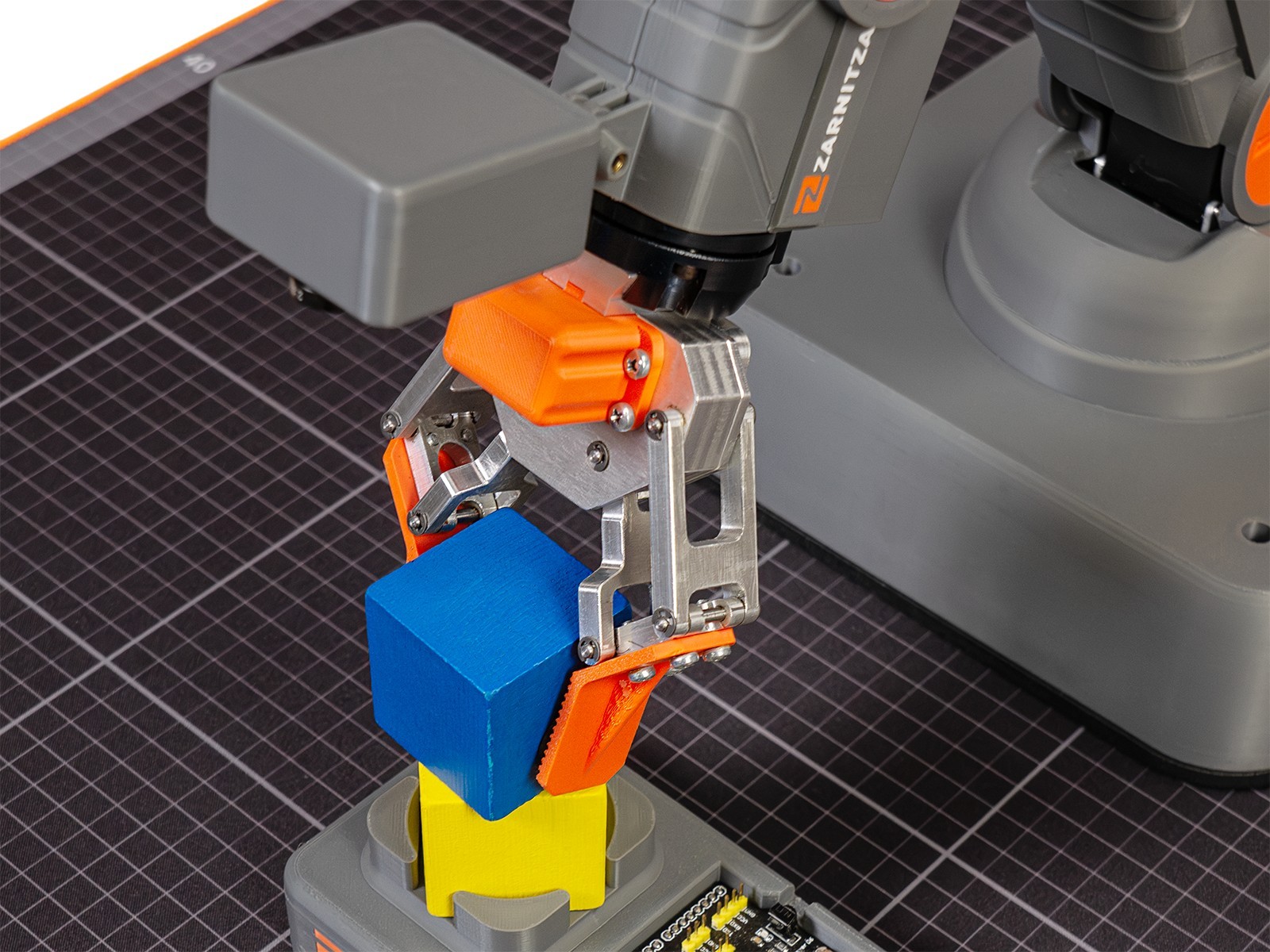

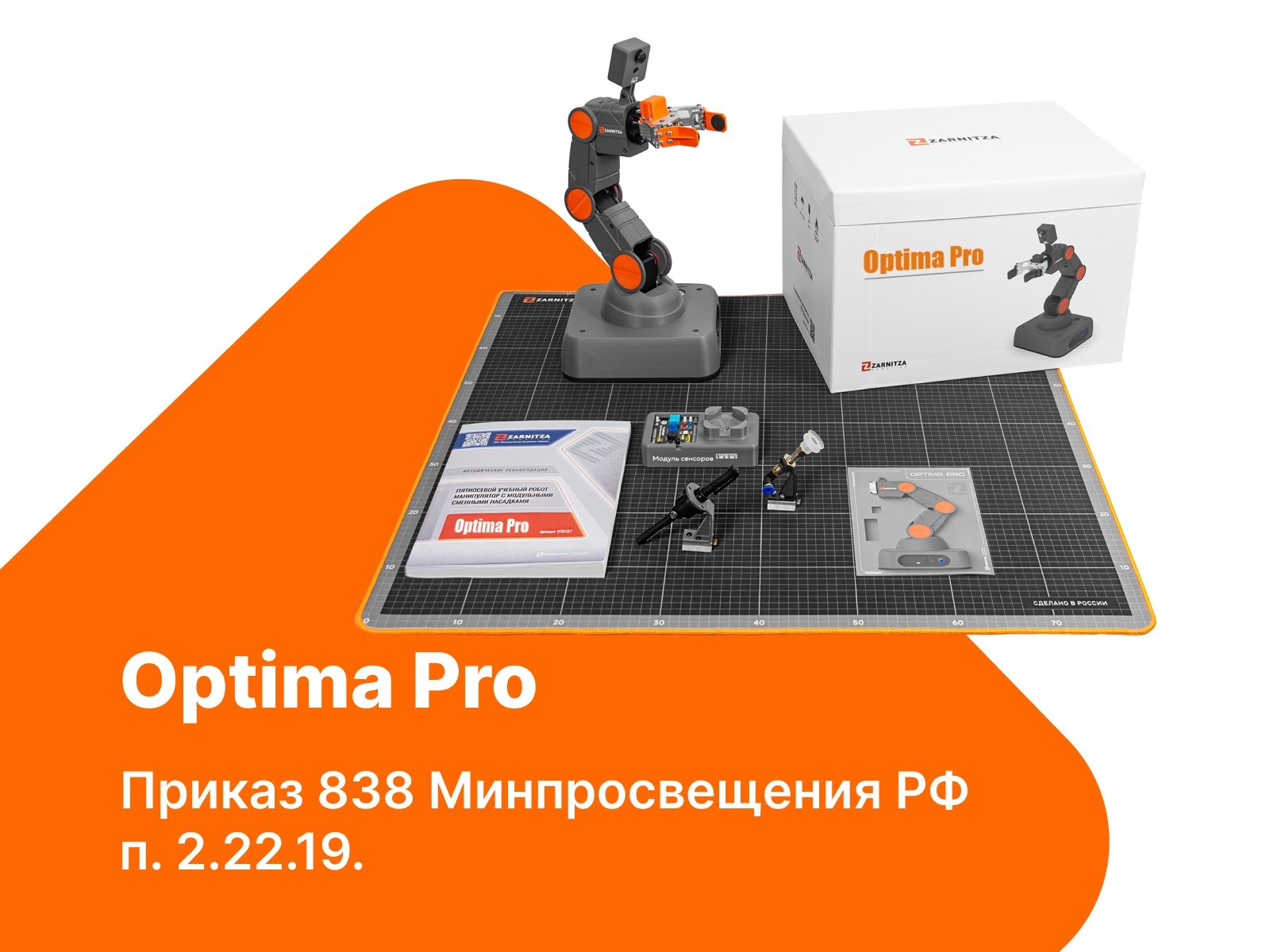

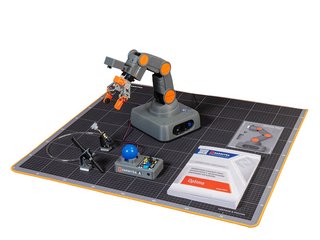

- electromechanical and vacuum grippers, sensor module, marked mat
- Working radius up to 400 mm
- payload 0.3 kg
- weight up to 5 kg
- Transport size 400 x 300 x 300 mm

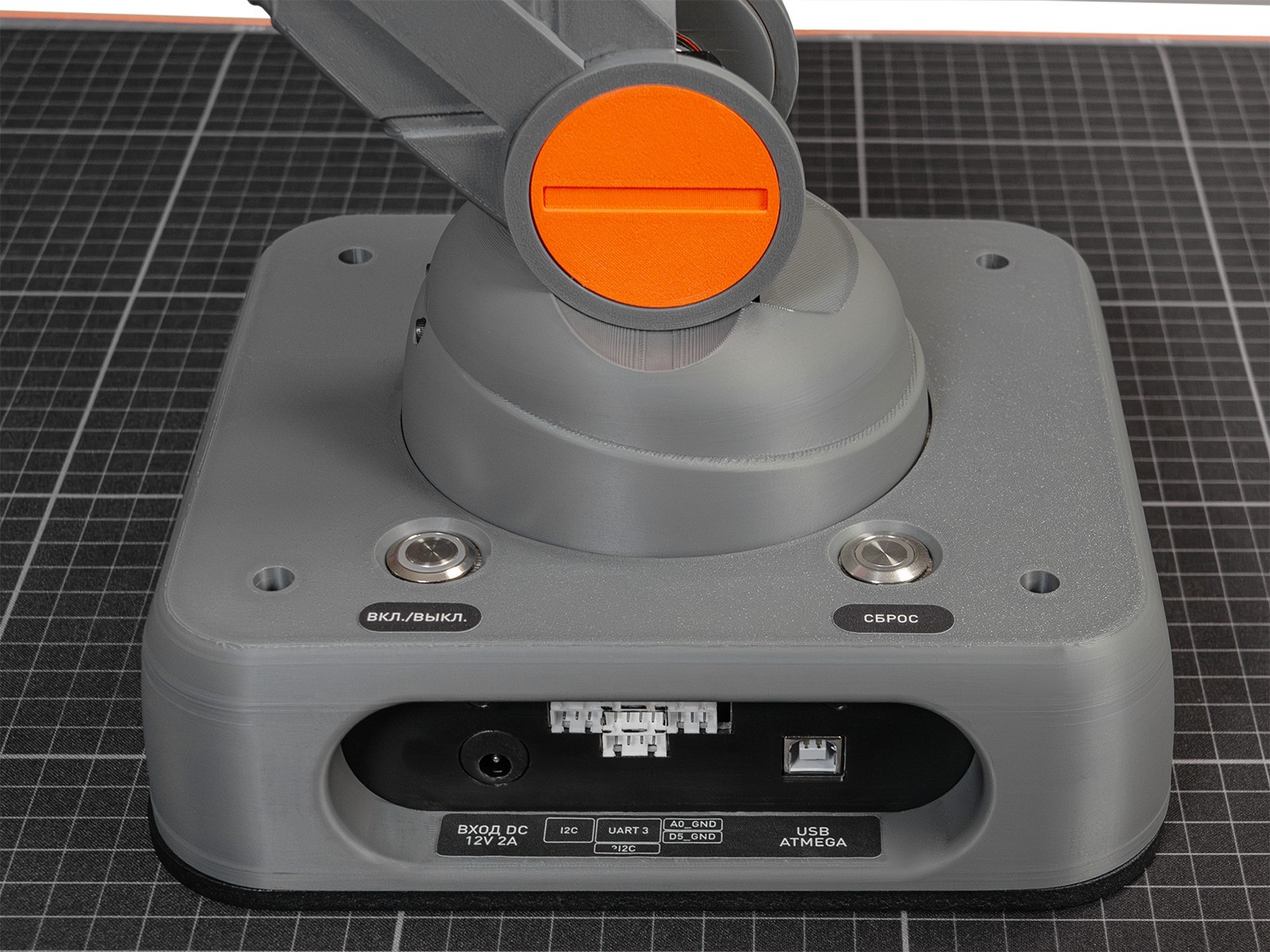

- 12 V / 2 A supply
- Bluetooth control
- Scratch, Arduino IDE, Python, C/C++
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 5 kg |
|---|---|
| Payload | 0.3 kg |
| Reach | 400 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 5 |
| Environment | Schools, colleges and university labs |
| Sensing & Compute | |
| Sensors | machine-vision camera, servo feedback sensors, sensor module |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 5 kg |
|---|---|
| Payload | 0.3 kg |
| Reach | 400 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 5 |
| Environment | Schools, colleges and university labs |
| Sensing & Compute | |
| Sensors | machine-vision camera, servo feedback sensors, sensor module |
Images
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Optima Pro?
Optima Pro is Zarnitza's teaching manipulator for school, college and university robotics: a five-degree-of-freedom arm with smart servos that report angle, speed, torque, temperature and voltage in real time, and a machine-vision module whose camera recognises objects by colour, shape and QR code so the arm can sort i…
Who makes the Optima Pro?
The Optima Pro is made by Zarnitza, a robotics company based in Russia.
How much does the Optima Pro cost?
The Optima Pro is priced at around 195,000 RUB.
What is the Optima Pro used for?
The Optima Pro is designed for research, education, and robotics education. It is used in research and education settings.
What is the payload capacity of the Optima Pro?
The Optima Pro has a payload capacity of 0.3 kg and a reach of 400 mm.
How much does the Optima Pro weigh?
The Optima Pro weighs 5 kg.
How many degrees of freedom does the Optima Pro have?
The Optima Pro has 5 degrees of freedom.
