DESCRIPTION
Noell A-STRAD is an Industrial-Robot from Konecranes. It is built for Heavy-Lifting, Heavy-Load-Transportation, Loading. Key figures: 50000 kg payload.

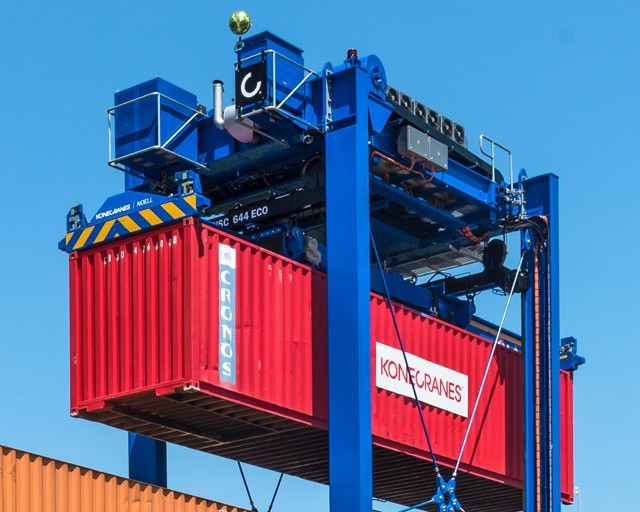

The Konecranes Noell A-STRAD is an automated straddle carrier for brownfield, greenfield and future terminals. Terminals running manual straddle fleets can adopt it in controlled phases - automating one section as a trial and then others, or converting horizontal transport and stacking one function at a time - towards full automation with minimal disruption. Existing diesel-electric Konecranes Noell straddle carriers have automation-ready controls and can be converted by retrofitting navigation antennae and positioning sensors, and A-STRADs are also delivered fully automated for greenfield terminals. It builds on the diesel-electric drive of the manual Noell carriers, which gives very precise manoeuvring, and Konecranes supplies the complete system including interchange control, fence control and software. Four versions are offered: A-N SC 634 E and 644 E with diesel-electric drives, and the 634 EHY and 644 EHY with diesel-battery hybrid drives. All lift 50 tonnes (60 tonnes in exceptional cases, depending on the spreader); the 634 models stack 1-over-2 and travel at up to 30 km/h, while the 644 models stack 1-over-3 at up to 24 km/h, with speed electronically limited for safety.
FEATURES
- Automated straddle carrier for brownfield, greenfield and future terminals
- phased automation
- Manual diesel-electric Noell straddle carriers convertible (automation-ready controls
- retrofit navigation antennae + positioning sensors)
- A-N SC 634 E / 634 EHY: 50 t, stacks 1-over-2 (9'6"), max 30 km/h
- A-N SC 644 E / 644 EHY: 50 t, stacks 1-over-3 (9'6"), max 24 km/h
- 60 t in exceptional cases (depends on spreader)
- speed electronically limited for safety
- E = diesel-electric hoisting and travel drives
- EHY = diesel-battery hybrid
- Delivered with interchange control, fence control systems and software
TECHNICAL SPECIFICATIONS
| Physical | |
| Payload | 50000 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Speed | 30 km/h |
| Environment | Outdoor automated container terminals (quay to stackyard) |
| Sensing & Compute | |
| Sensors | navigation antennae, positioning sensors |
| Software / AI | Konecranes interchange control and fence control systems |
TECHNICAL SPECIFICATIONS
| Physical | |
| Payload | 50000 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Speed | 30 km/h |
| Environment | Outdoor automated container terminals (quay to stackyard) |
| Sensing & Compute | |
| Sensors | navigation antennae, positioning sensors |
| Software / AI | Konecranes interchange control and fence control systems |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Noell A-STRAD?
The Konecranes Noell A-STRAD is an automated straddle carrier for brownfield, greenfield and future terminals. Terminals running manual straddle fleets can adopt it in controlled phases - automating one section as a trial and then others, or converting horizontal transport and stacking one function at a time - towards…
Who makes the Noell A-STRAD?
The Noell A-STRAD is made by Konecranes, a robotics company based in Finland.
How much does the Noell A-STRAD cost?
Konecranes has not publicly announced pricing for the Noell A-STRAD. You can enquire through RobotAIGeek for current pricing.
What is the Noell A-STRAD used for?
The Noell A-STRAD is designed for heavy-lifting, heavy-load-transportation, loading, and unloading. It is used in warehouse & logistics settings.
What is the payload capacity of the Noell A-STRAD?
The Noell A-STRAD has a payload capacity of 50,000 kg.
How fast is the Noell A-STRAD?
The Noell A-STRAD can move at speeds of up to 30 km/h.
