Maia 2000

Humro

Mobile-Robots India

IndiaReleased

★Not rated yet

Compare

Sources:

humro.com

Industries:

Warehouse & Logistics Manufacturing Retail

Uses:

Intralogistics Material-Handling Pallet-Transportation Transport

Price:

Not announced

DESCRIPTION

Maia 2000 is a Mobile-Robots from Humro. It is built for Intralogistics, Material-Handling, Pallet-Transportation. Key figures: 550 kg, 480 min runtime, 2000 kg payload.

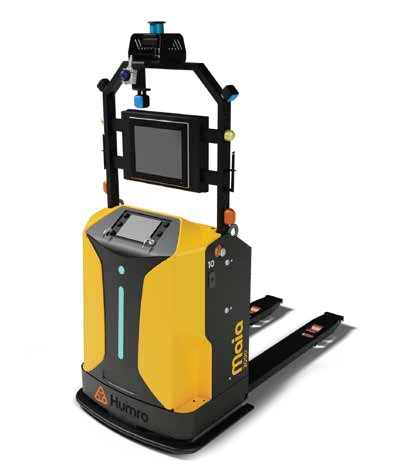

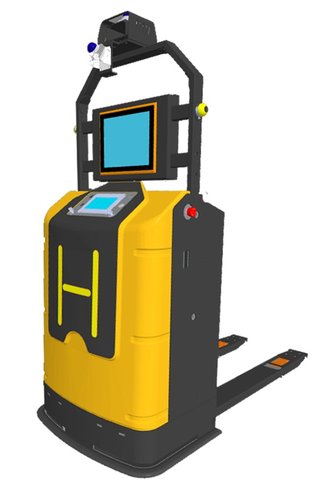

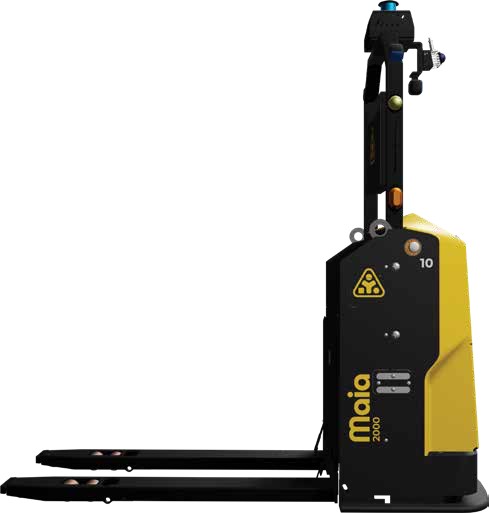

Maia 2000 is an autonomous pallet jack from Humro, the robotics brand of Pune-based ARAPL. It moves closed or open pallets floor to floor in warehouses, for example from docks to staging lanes, and is synchronised with digital warehouse systems. The pallet jack navigates by laser SLAM and uses real-time traffic management and pallet detection to pick up loads. Laser scanners at the front, sides and rear, a 3D laser scanner on top, a 3D camera, anti-collision bumpers and emergency stops protect people around it, and it slows or stops in configured zones. It is rated for 2,000 kg, lifts 180 mm, travels at 1.5 m/s and positions to within 10 mm. The truck measures 1,837 x 901 x 2,025 mm and works in a 2,042 mm aisle with a 40 x 48 in pallet. A 24 V, 210 Ah lithium iron phosphate battery supports opportunity charging, with about 2 hours of charging for 8 hours of work, in temperatures from -5 to 40 C. Humro also lists a Maia 1500.

FEATURES

Autonomous pallet jack for ground-to-ground pallet transport
Rated capacity: 2,000 kg (4,409 lb)
Pallet type: closed or open
Lifting height: 180 mm
Max travelling speed: 1.5 m/s (3.35 mph)
Positional accuracy: +/-10 mm
Dimensions (L x W x H): 1,837 x 901 x 2,025 mm
Turning radius (wheels up): 1,370 + 200 mm
Aisle width for 40 x 48 in pallet: 2,042 mm
Fork spread: 660 mm
Fork dimensions (l/e/s): 1,070 / 100 / 45 mm
Body weight: 550 kg (website) / 520 kg (brochure)
Max gradeability: 5%
Working temperature: -5 to 40 C
Laser SLAM navigation with traffic management
Pallet detection
Front and side safety: laser scanner and anti-collision bumper
Rear safety: laser scanner
top safety: 3D laser scanner
3D camera obstacle detection
Emergency stop buttons and alarm
Battery: LiFePO4, 24 V / 210 Ah, 3-year battery warranty
Opportunity charging
about 2 h charging for 8 h working time
Integration with WMS and digital warehouse systems
Family: Maia 1500, Maia 2000

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	550 kg
Dimensions	L 1.84 m × W 901 mm × H 2.02 m
Payload	2000 kg
Mobility
Movement Type	Wheeled
Speed	5.4 km/h
Environment	Indoor warehouse floors, -5°C to 40°C
Power
Battery Life	480 min
Sensing & Compute
Sensors	LiDAR safety scanners (front, rear, sides), 3D laser scanner (top), 3D camera, Anti-collision bumpers
Software / AI	Laser SLAM navigation, traffic management and pallet detection; WMS integration

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

ROBOT FORUMS

Loading forums...

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	550 kg
Dimensions	L 1.84 m × W 901 mm × H 2.02 m
Payload	2000 kg
Mobility
Movement Type	Wheeled
Speed	5.4 km/h
Environment	Indoor warehouse floors, -5°C to 40°C
Power
Battery Life	480 min
Sensing & Compute
Sensors	LiDAR safety scanners (front, rear, sides), 3D laser scanner (top), 3D camera, Anti-collision bumpers
Software / AI	Laser SLAM navigation, traffic management and pallet detection; WMS integration

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

FREQUENTLY ASKED QUESTIONS

What is the Maia 2000?

Who makes the Maia 2000?

The Maia 2000 is made by Humro, a robotics company based in India.

How much does the Maia 2000 cost?

Humro has not publicly announced pricing for the Maia 2000. You can enquire through RobotAIGeek for current pricing.

What is the Maia 2000 used for?

The Maia 2000 is designed for intralogistics, material-handling, pallet-transportation, and transport. It is used in warehouse & logistics, manufacturing, and retail settings.
