DESCRIPTION
iCRA3 is an Industrial-Robot from RobotoAI Technologies. It is built for Assembly, Dispensing, palletizing. Key figures: 40 kg, 3 kg payload, 3 degrees of freedom.

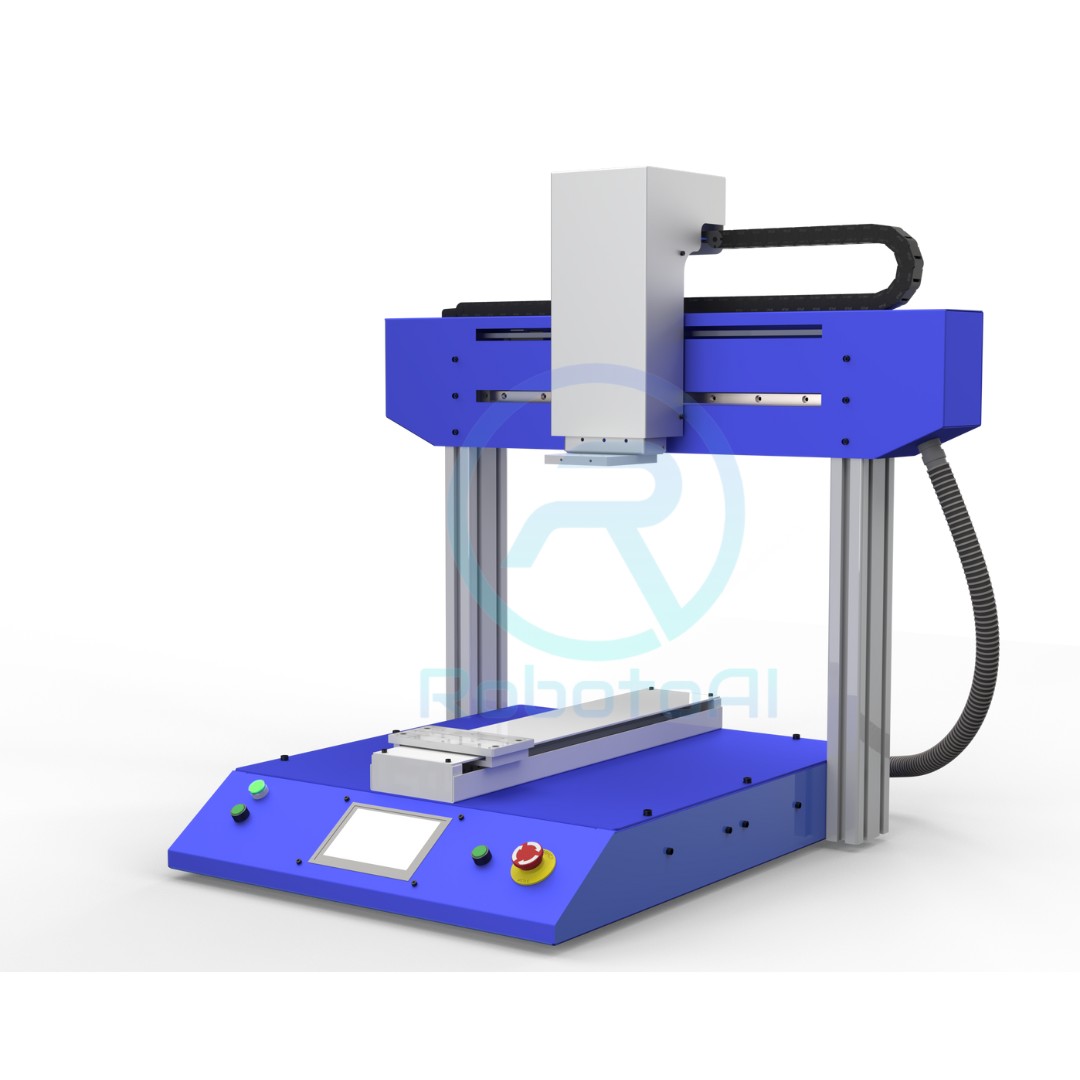

The iCRA3 is a benchtop three-axis Cartesian robot made by RobotoAI Technologies in Coimbatore for small assembly tasks. A Cartesian (gantry) robot moves its tool along three straight axes, X, Y and Z, which makes it simple to program and accurate for repeated point-to-point work on parts held on its table. The machine has a 360 x 360 x 150 mm working area, a stated repeatability of plus or minus 0.02 mm and a resolution of 0.005 mm per axis, and moves at up to 100 mm per second. It carries a workpiece load of 3 kg and a tool load of 6 kg, weighs 40 kg, measures 770 x 626 x 747 mm and draws at most 70 W from a 200-240 V AC supply. Jobs are programmed from a built-in touch screen. RobotoAI offers it for dispensing adhesives and sealants, PCB depanelling, engraving, cutting, material scanning, light palletising, pick and place, welding and drawing. A video on the maker's site shows it dispensing onto a circuit board.
FEATURES
- Benchtop 3-axis Cartesian (gantry) robot
- Work area (X/Y/Z) 360 x 360 x 150 mm
- Repeatability +/-0.02 mm
- Resolution 0.005 mm per axis
- Point-to-point motion control
- Work load 3 kg
- Tool load 6 kg
- Working speed 100 mm/s
- Weight 40 kg
- Dimensions (L x B x H) 770 x 626 x 747 mm
- Power supply 200-240 V AC
- Power consumption 70 W max
- Touch screen for programming and operation
- Applications: dispensing, palletising, PCB depanelling, engraving, cutting, material scanning, pick and place, welding, drawing
- Made in India (Coimbatore)
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 40 kg |
|---|---|
| Dimensions | L 770 mm × W 626 mm × H 747 mm |
| Payload | 3 kg |
| Repeatability | ±0.02 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 3 |
| Speed | 0.36 km/h |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 40 kg |
|---|---|
| Dimensions | L 770 mm × W 626 mm × H 747 mm |
| Payload | 3 kg |
| Repeatability | ±0.02 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 3 |
| Speed | 0.36 km/h |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the iCRA3?
The iCRA3 is a benchtop three-axis Cartesian robot made by RobotoAI Technologies in Coimbatore for small assembly tasks. A Cartesian (gantry) robot moves its tool along three straight axes, X, Y and Z, which makes it simple to program and accurate for repeated point-to-point work on parts held on its table.
Who makes the iCRA3?
The iCRA3 is made by RobotoAI Technologies, a robotics company based in India.
How much does the iCRA3 cost?
RobotoAI Technologies has not publicly announced pricing for the iCRA3. You can enquire through RobotAIGeek for current pricing.
What is the iCRA3 used for?
The iCRA3 is designed for assembly, dispensing, palletizing, and pick-and-place. It is used in electronics and manufacturing settings.
What is the payload capacity of the iCRA3?
The iCRA3 has a payload capacity of 3 kg.
How much does the iCRA3 weigh?
The iCRA3 weighs 40 kg.
How fast is the iCRA3?
The iCRA3 can move at speeds of up to 0.36 km/h.
How many degrees of freedom does the iCRA3 have?
The iCRA3 has 3 degrees of freedom.
