DESCRIPTION
Gottwald Lift AGV is an Industrial-Robot from Konecranes. It is built for Heavy-Lifting, Heavy-Load-Transportation, Loading. Key figures: 31000 kg, 70000 kg payload.
The Konecranes Gottwald Lift AGV is a further development of the company's automated guided vehicle for container terminals. Unlike a conventional AGV, it has two active lifting platforms that let it lift containers and set them down by itself on transfer racks in the interchange zone in front of the stacking cranes, so container transport and container storage are decoupled. It can handle two 20-foot containers independently of each other or one container of any size, cutting waiting time and raising the work rate per vehicle, which helps terminals optimise fleet size. Like the standard AGV it carries a 70-tonne payload, moves forwards, backwards and sideways, and is guided to within 25 mm by Konecranes' management and navigation software and transponders in the road surface. It runs on lead-acid batteries with fully automatic exchange in about five minutes, or on lithium-ion batteries with automated quick charging, and weighs 31 or 39 tonnes unladen depending on battery type.
FEATURES
- Two active lifting platforms: picks up and sets down containers on transfer racks independently
- Handles two 20 ft containers independently or one container of any size
- Decouples container transport from stacking-crane operations
- fewer waiting times
- Unladen weight 31 or 39 t (Li-ion vs lead-acid variant)
- Battery-electric (lead-acid or Li-ion) or diesel-electric drive
- payload 70 t
- Carries 20, 40 and 45 ft containers
- travels forwards, backwards and sideways
- Navigation by management/navigation software + transponders in the terminal road surface
- +/-25 mm positioning

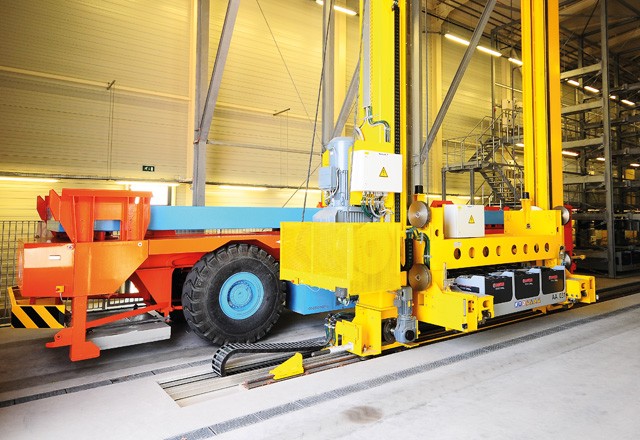

- Fully automated battery exchange in about 5 minutes (lead-acid) or automated quick charging in the AGV (Li-ion)
- Li-ion: lower deadweight, up to 3x more recharge cycles and about 4x faster charging than lead-acid
- In-house fleet management and navigation software
- integration with terminal management systems
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 31000 kg |
|---|---|
| Payload | 70000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Environment | Outdoor automated container terminals (quay to stackyard) |
| Actuators | Two active container lifting platforms |
| Power | |
| Charging Type | Automatic battery exchange (~5 min) or automated quick charging (Li-ion) |
| Sensing & Compute | |
| Sensors | transponder-based navigation |
| Connectivity | Terminal management system integration |
| Software / AI | Konecranes AGV management and navigation system |
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 31000 kg |
|---|---|
| Payload | 70000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Environment | Outdoor automated container terminals (quay to stackyard) |
| Actuators | Two active container lifting platforms |
| Power | |
| Charging Type | Automatic battery exchange (~5 min) or automated quick charging (Li-ion) |
| Sensing & Compute | |
| Sensors | transponder-based navigation |
| Connectivity | Terminal management system integration |
| Software / AI | Konecranes AGV management and navigation system |
Images
martti
martti
martti
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Gottwald Lift AGV?
The Konecranes Gottwald Lift AGV is a further development of the company's automated guided vehicle for container terminals. Unlike a conventional AGV, it has two active lifting platforms that let it lift containers and set them down by itself on transfer racks in the interchange zone in front of the stacking cranes, s…
Who makes the Gottwald Lift AGV?
The Gottwald Lift AGV is made by Konecranes, a robotics company based in Finland.
How much does the Gottwald Lift AGV cost?
Konecranes has not publicly announced pricing for the Gottwald Lift AGV. You can enquire through RobotAIGeek for current pricing.
What is the Gottwald Lift AGV used for?
The Gottwald Lift AGV is designed for heavy-lifting, heavy-load-transportation, loading, and unloading. It is used in warehouse & logistics settings.
What is the payload capacity of the Gottwald Lift AGV?
The Gottwald Lift AGV has a payload capacity of 70,000 kg.
How much does the Gottwald Lift AGV weigh?
The Gottwald Lift AGV weighs 31,000 kg.
