G5Q.1

Yeefung

Mobile-Robots China

ChinaReleased

★Not rated yet

Compare

Sources:

yfagv.com

Industries:

Warehouse & Logistics Manufacturing Retail

Uses:

Intralogistics Material-Handling Sorting TransportAutomated material handling

Price:

Not announced

Model:

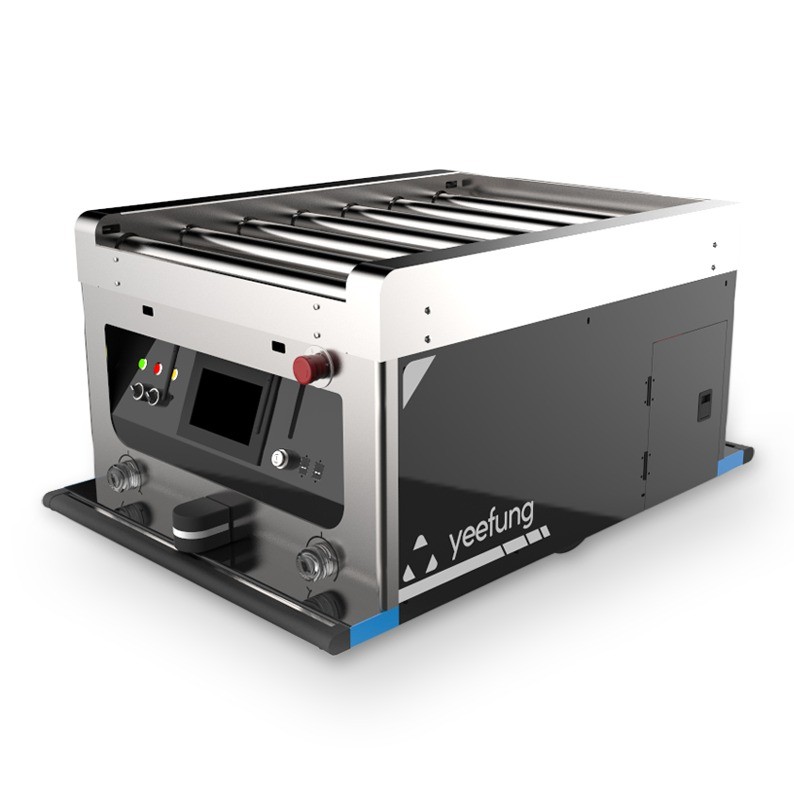

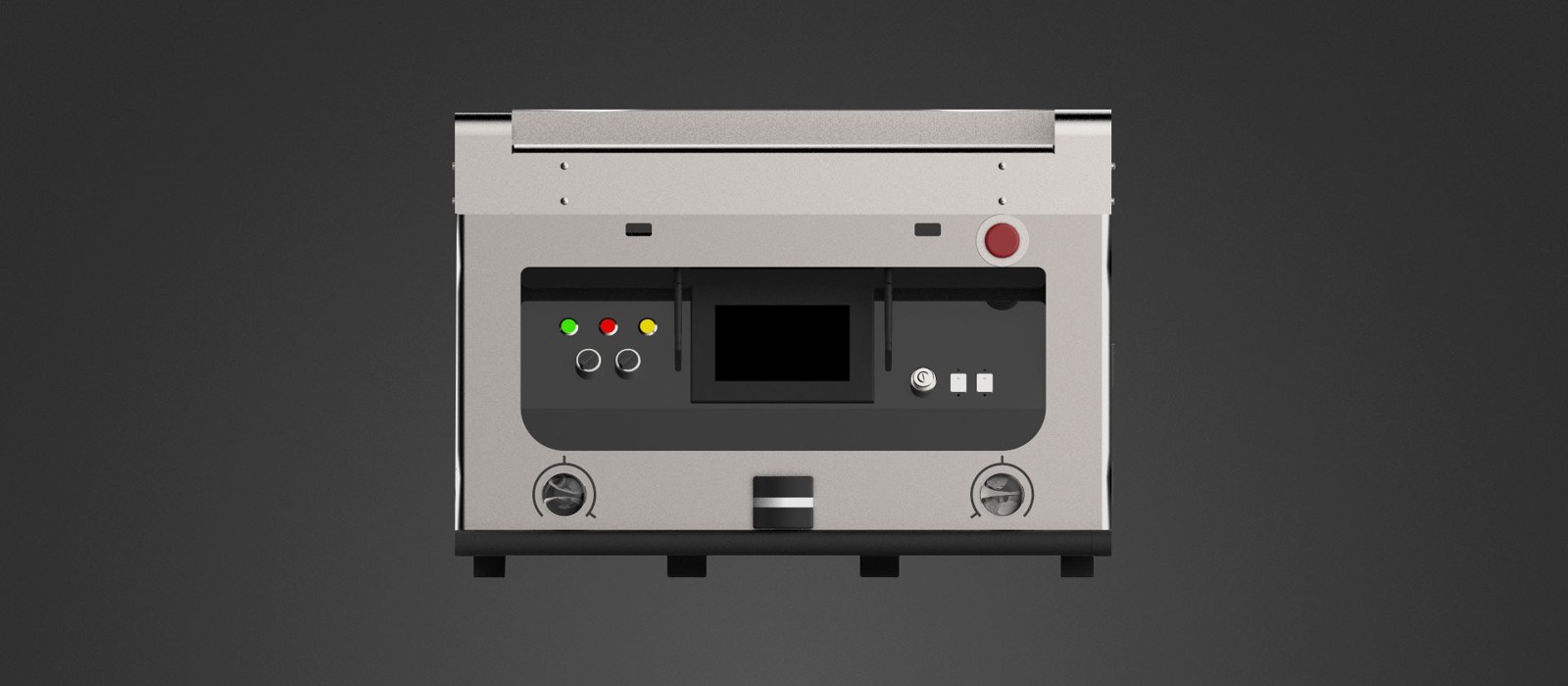

Yeefung G5Q.1 roller tugger AGV

DESCRIPTION

G5Q.1 is a Mobile-Robots from Yeefung. It is built for Intralogistics, Material-Handling, Sorting. Key figures: 260 kg, 500 kg payload.

G5Q.1 is a roller-conveyor AGV on the G5 chassis that can either tow a trolley or carry a pallet between manufacturing workstations, transferring loads on its adjustable-speed roller conveyor at 495 mm height. It follows visual or QR-code navigation and carries up to 500 kg. It measures 1100 x 750 x 535 mm, weighs 260 kg, carries 500 kg, travels at up to 1 m/s, and positions to +/-10mm. Power comes from a 48V Lithium 38Ah battery with automatic or manual charging; it communicates over WLAN, and E-stops, non-contact and mechanical protection plus a SICK TIM320 laser obstacle scanner keep it safe.

FEATURES

Navigation accuracy +/-10mm
positioning accuracy +/-10mm
Navigation: Visual/QR code navigation
Moving function: Forward, backward, turning,rotating
Drive mode: Differential drive
Size: 1100 mm(L) x 750 mm(W) x 535mm(H)
Connection: Lifting connection
MAX Payload: 500kg
Weight: 260kg
MAX Driving speed: 1.0m/s
Turning speed(MAX): Rotating: 45 deg /s
Battery: 48V Lithium 38Ah
Charger power: 3.5KW
Roller speed: 0-30m/min(adjustable)
Roller diameter: 50mm
Roller gap: 78.5mm
Distance between roller and ground: 495mm
Distance between AGV chassis and ground: 20mm
Gradeability: 3%
Laser obstacle avoidance device: SICK TIM320
Safety: E-stop, non-contact protection, mechanical protection
sensing range 0-3m

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	260 kg
Dimensions	L 1.1 m × W 750 mm × H 535 mm
Payload	500 kg
Repeatability	±10 mm
Mobility
Movement Type	Wheeled
Speed	3.6 km/h
Environment	Indoor factories and warehouses
Actuators	Differential drive
Power
Battery Life	48V Lithium 38Ah
Charging Type	Automatic / manual charging
Sensing & Compute
Sensors	Visual/QR code navigation sensors, SICK TIM320 laser obstacle scanner
Connectivity	WLAN

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

ROBOT FORUMS

Loading forums...

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	260 kg
Dimensions	L 1.1 m × W 750 mm × H 535 mm
Payload	500 kg
Repeatability	±10 mm
Mobility
Movement Type	Wheeled
Speed	3.6 km/h
Environment	Indoor factories and warehouses
Actuators	Differential drive
Power
Battery Life	48V Lithium 38Ah
Charging Type	Automatic / manual charging
Sensing & Compute
Sensors	Visual/QR code navigation sensors, SICK TIM320 laser obstacle scanner
Connectivity	WLAN

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

FREQUENTLY ASKED QUESTIONS

What is the G5Q.1?

Who makes the G5Q.1?

The G5Q.1 is made by Yeefung, a robotics company based in China.

How much does the G5Q.1 cost?

Yeefung has not publicly announced pricing for the G5Q.1. You can enquire through RobotAIGeek for current pricing.

What is the G5Q.1 used for?

The G5Q.1 is designed for intralogistics, material-handling, sorting, and transport. It is used in warehouse & logistics, manufacturing, and retail settings.
