DESCRIPTION
Fangzhou is a Mobile-Robots from Chuangze Intelligent Robot. It is built for Service, Transport, Commercial service robotics. Key figures: 45 kg, 660 min runtime, 80 kg payload.

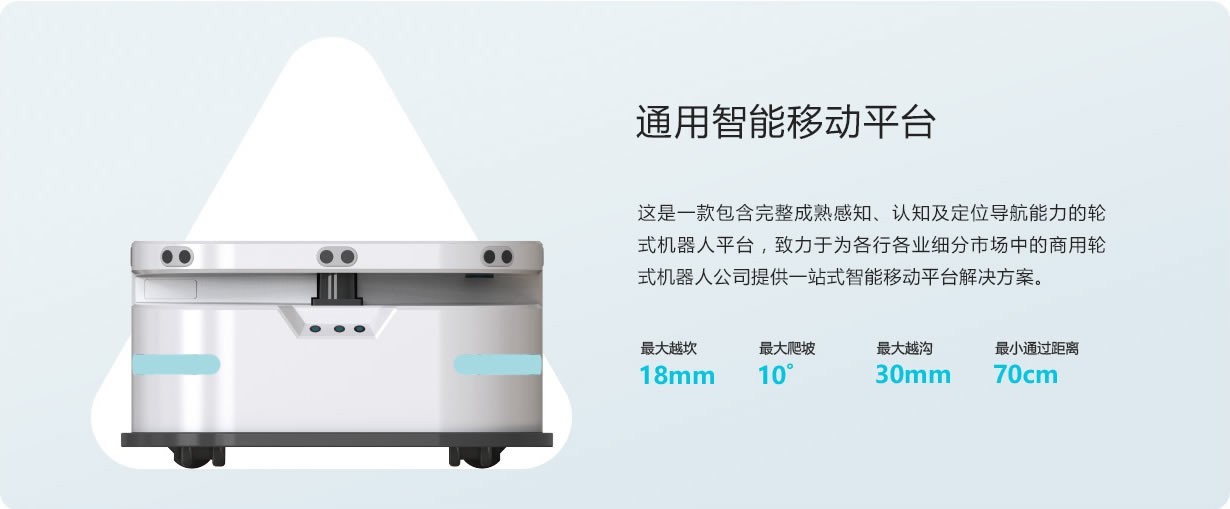

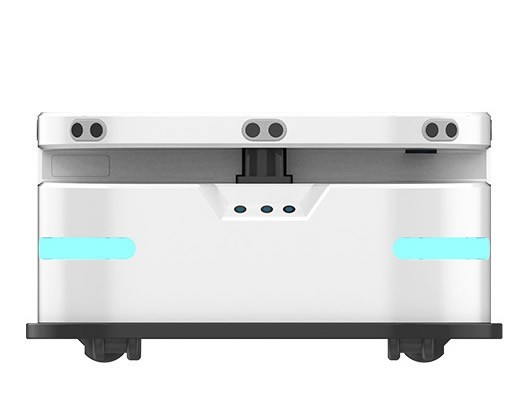

Fangzhou ('Ark') is Chuangze's square service-robot chassis: 510 x 510 x 280 mm and 45 kg, it carries 50 kg as standard and up to 80 kg on level floors. Two 200 W hub servo motors with differential drive and active suspension on seven wheels move it at 0.6 m/s by default (1.2 m/s max), over 18 mm sills and 10-degree slopes with a 252.5 mm turning radius. It shares the Shuidi II sensor set - laser rangefinder, RGBD camera, two-way vision, ultrasonic sensors, six-axis IMU and bumpers - maps 50,000 m2 at once, runs 11 hours unloaded on a 25.2 V 35 Ah pack (4-5 h charge) and has an eight-core ARM Linux controller with Ethernet and Wi-Fi.
FEATURES
- 510 x 510 x 280 mm
- 45 kg
- payload 50 kg standard, 80 kg max on level floors
- Speed 0.6 m/s default, 1.2 m/s max
- 18 mm sills, 10 deg slopes
- 7 wheels (2 drive, 4 caster, 1 auxiliary)
- differential drive + active suspension
- 2 x 200 W hub servo motors
- Laser rangefinder, RGBD camera, two-way vision, ultrasonic, 6-axis IMU, bumpers
- Maps 50,000 m2
- up to 200,000 m2
- 25.2 V 35 Ah
- 11 h
- 4-5 h charging
- 8-core ARM Linux
- Ethernet, Wi-Fi
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 45 kg |
|---|---|
| Dimensions | L 510 mm × W 510 mm × H 280 mm |
| Payload | 80 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 4.32 km/h |
| Environment | Indoor flat floors (thresholds up to 15-18 mm) |
| Power | |
| Battery Life | 660 min |
| Charging Type | Charging dock |
| Sensing & Compute | |
| Sensors | laser rangefinder, RGBD depth camera, binocular vision, ultrasonic sensors, 6-axis IMU, bumpers |
| Connectivity | Ethernet; Wi-Fi |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 45 kg |
|---|---|
| Dimensions | L 510 mm × W 510 mm × H 280 mm |
| Payload | 80 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 4.32 km/h |
| Environment | Indoor flat floors (thresholds up to 15-18 mm) |
| Power | |
| Battery Life | 660 min |
| Charging Type | Charging dock |
| Sensing & Compute | |
| Sensors | laser rangefinder, RGBD depth camera, binocular vision, ultrasonic sensors, 6-axis IMU, bumpers |
| Connectivity | Ethernet; Wi-Fi |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Fangzhou?
Fangzhou ('Ark') is Chuangze's square service-robot chassis: 510 x 510 x 280 mm and 45 kg, it carries 50 kg as standard and up to 80 kg on level floors.
Who makes the Fangzhou?
The Fangzhou is made by Chuangze Intelligent Robot, a robotics company based in China.
How much does the Fangzhou cost?
Chuangze Intelligent Robot has not publicly announced pricing for the Fangzhou. You can enquire through RobotAIGeek for current pricing.
What is the Fangzhou used for?
The Fangzhou is designed for service, transport, and commercial service robotics. It is used in commercial and others settings.
What is the payload capacity of the Fangzhou?
The Fangzhou has a payload capacity of 80 kg.
How much does the Fangzhou weigh?
The Fangzhou weighs 45 kg.
How fast is the Fangzhou?
The Fangzhou can move at speeds of up to 4.32 km/h.
What is the battery life of the Fangzhou?
The Fangzhou runs for about 660 minutes on a charge.
