DESCRIPTION

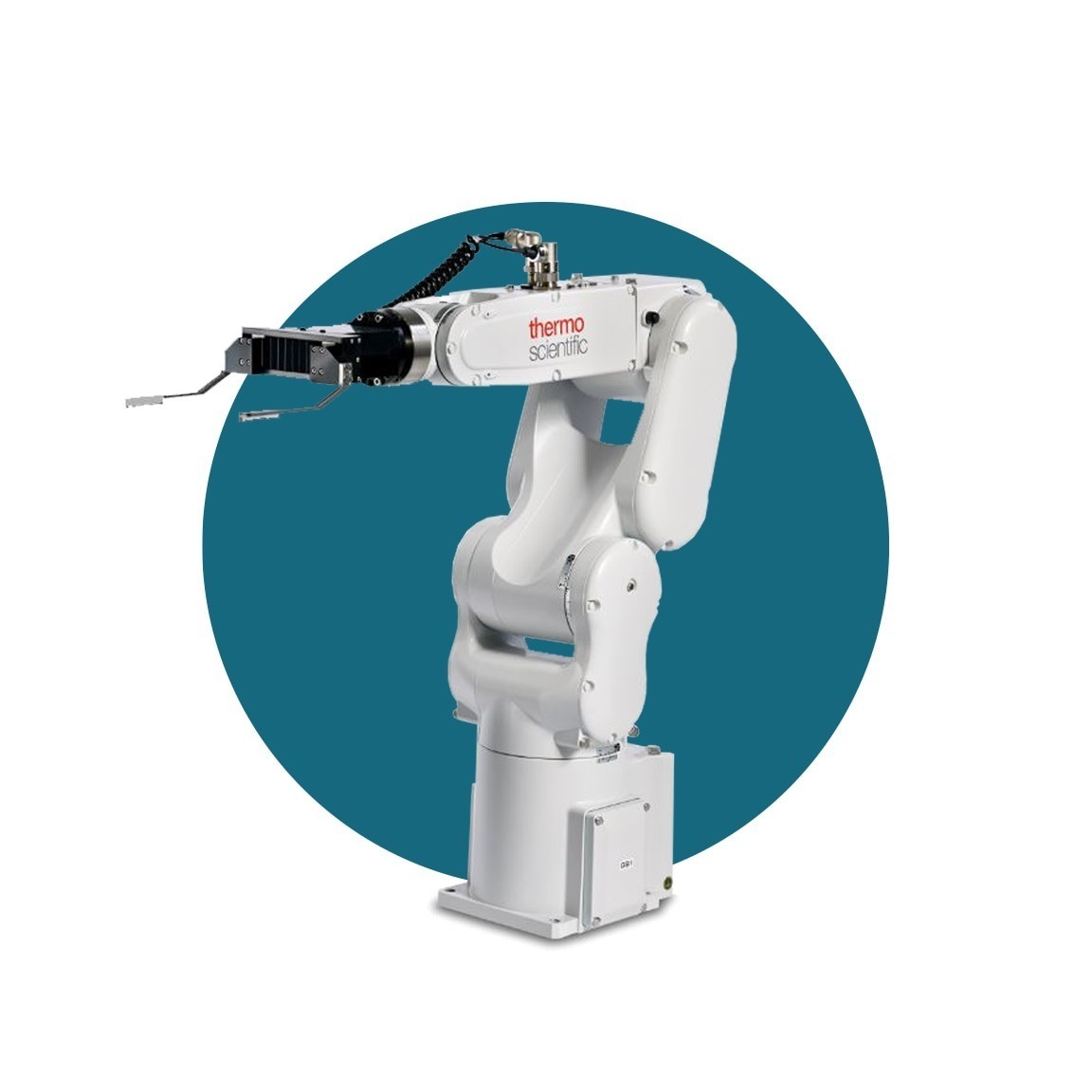

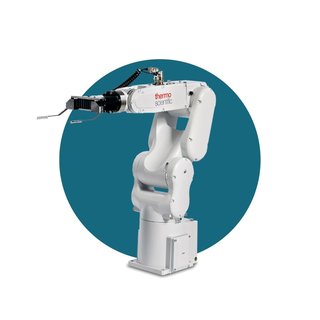

F7 Robot is an Industrial-Robot from Thermo Fisher Scientific. It is built for Material-Handling, Pick-and-place, Research. Key figures: 1 kg payload, 717 mm reach, 6 degrees of freedom.
The Thermo Scientific F7 Robot is a six-axis articulated arm that combines industrial-grade performance with a lab-specific design, for high-throughput, precision-critical workflows. Its six-axis motion is smooth and vibration-free even at full speed, protecting sample integrity, and it repeats positions to +/-0.02 mm. Thermo Fisher lists a reach of 717 mm and a payload of up to 1 kg. The compact arm can be mounted upright, angled, on a wall or inverted, and its track-ready, modular design fits tight or complex lab layouts. IP67/IP69-rated arms keep it reliable in clean-room, sterile or harsh conditions. It is programmed and taught through Thermo Fisher's MoverFramework and integrates with Momentum lab scheduling software for quick reconfiguration; barcode reading is optional.
FEATURES
- Six-axis articulated arm for precision lab workflows
- vibration-free motion
- Repeatability +/-0.02 mm
- reach 717 mm
- payload up to 1 kg
- Mounting: upright, angled, wall or inverted
- modular, track-ready
- IP67/IP69-rated arms - cleanroom ready, sterile or harsh environments
- MoverFramework teaching + Momentum scheduling software
- optional barcode reading
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 1 kg |
|---|---|
| Reach | 717 mm |
| Repeatability | ±0.02 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Environment | Indoor life-science laboratories (benchtop / lab floors) |
| Actuators | 6-axis articulated arm |
| Sensing & Compute | |
| Software / AI | Thermo Scientific Momentum workflow scheduling software |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 1 kg |
|---|---|
| Reach | 717 mm |
| Repeatability | ±0.02 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Environment | Indoor life-science laboratories (benchtop / lab floors) |
| Actuators | 6-axis articulated arm |
| Sensing & Compute | |
| Software / AI | Thermo Scientific Momentum workflow scheduling software |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the F7 Robot?
The Thermo Scientific F7 Robot is a six-axis articulated arm that combines industrial-grade performance with a lab-specific design, for high-throughput, precision-critical workflows.
Who makes the F7 Robot?
The F7 Robot is made by Thermo Fisher Scientific, a robotics company based in United States.
How much does the F7 Robot cost?
Thermo Fisher Scientific has not publicly announced pricing for the F7 Robot. You can enquire through RobotAIGeek for current pricing.
What is the F7 Robot used for?
The F7 Robot is designed for material-handling, pick-and-place, research, and high-precision labware handling in automated life-science workflows. It is used in research and healthcare settings.
What is the payload capacity of the F7 Robot?
The F7 Robot has a payload capacity of 1 kg and a reach of 717 mm.
How many degrees of freedom does the F7 Robot have?
The F7 Robot has 6 degrees of freedom.
