Endobot

DESCRIPTION

Endobot is a Service-Robots from Solinas. It is built for Mapping, Inspection, Monitoring.

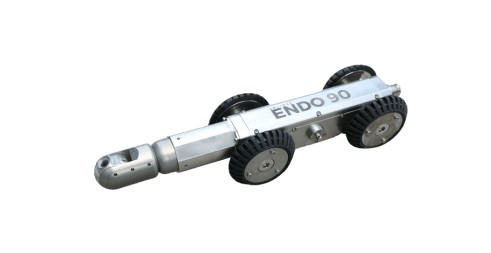

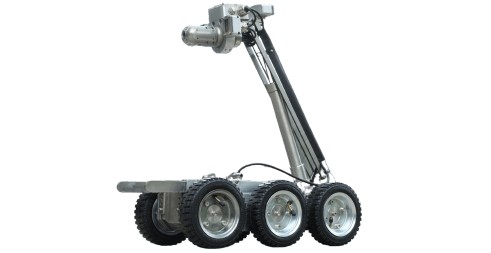

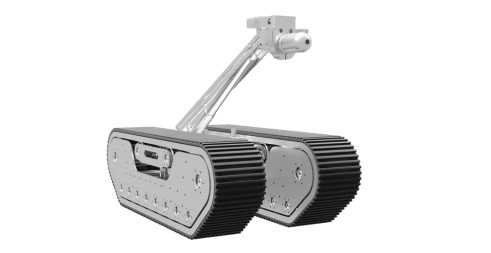

Endobot is a family of tethered robotic crawlers from Solinas that drive inside water, sewer, storm-water and industrial pipelines to film and measure them, so faults can be found without digging up roads. Inspection video feeds Solinas' AI software, which marks defects such as leaks, cracks, blockages, root intrusion, illegal connections and contamination points. The range covers pipe diameters from about 90 mm to 2,100 mm. ENDO90, which Solinas calls Asia's first crawler for sub-90 mm pipes, fits 90-200 mm pipes, runs on a 120 m tether with a 2 MP pan-tilt-zoom camera and is rated to 30 m water depth. ENDO250 serves 250-1,000 mm sewers and water mains with a pantograph PTZ camera and 250-300 m of tether. ENDO600 is a tracked crawler for 600-1,200 mm storm drains and sewers, with 500 m of tether, able to work in up to 150 mm of sludge. ENDORAFT is a floating robot for 600-1,500 mm sewers. All models measure pipe gradient with an onboard IMU and can carry an optional laser profiler. Municipal corporations including Chhatrapati Sambhaji Nagar and Sangli-Miraj-Kupwad, and contractors such as Veolia, are quoted on the product page.
