DESCRIPTION
Delta Robot AR-1000D is an Industrial-Robot from AE Robotics Co., Ltd.. It is built for Packaging, Pick-and-place, Sorting. Key figures: 67 kg, 5 kg payload, 1000 mm reach, 4 degrees of freedom.
The A&R AR-1000D is a delta (three-DOF spatial parallel) robot built for high-rate pick-and-place over a 1000 mm working diameter. Its motors all sit in the fixed upper platform, so the moving linkage stays light and the arm can complete a short transfer in around 0.4 seconds - the reason machines of this shape dominate packaging and food lines. It mounts overhead above a conveyor and can be ordered in three- or four-axis form.
FEATURES
- Rated load 5 kg
- Working range X=1000 mm, Y=300 mm (circular envelope 1040 mm)
- Robot weight 67 kg
- Three-DOF spatial parallel (delta) mechanism
- available in 3-axis and 4-axis configurations
- Drive train mounted entirely in the fixed upper platform, giving a low moving mass and high dynamic performance
- Repeatability +/-0.1 mm
- Suspension (overhead) mounting
- WSC-GJK2-T4 electrical control system
- Cycle time 0.4 s/beat over an x=400 mm, y=50 mm pick-and-place move
- AC servo drive
- Motion instruction set: PTP, LINE, PICK, PLACE
- 7-inch teach pendant
- Optional vision positioning module (1.3 MP camera, add-on lens, light source)
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 67 kg |
|---|---|
| Payload | 5 kg |
| Reach | 1 m |
| Repeatability | ±0.1 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 4 |
Videos
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 67 kg |
|---|---|
| Payload | 5 kg |
| Reach | 1 m |
| Repeatability | ±0.1 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 4 |

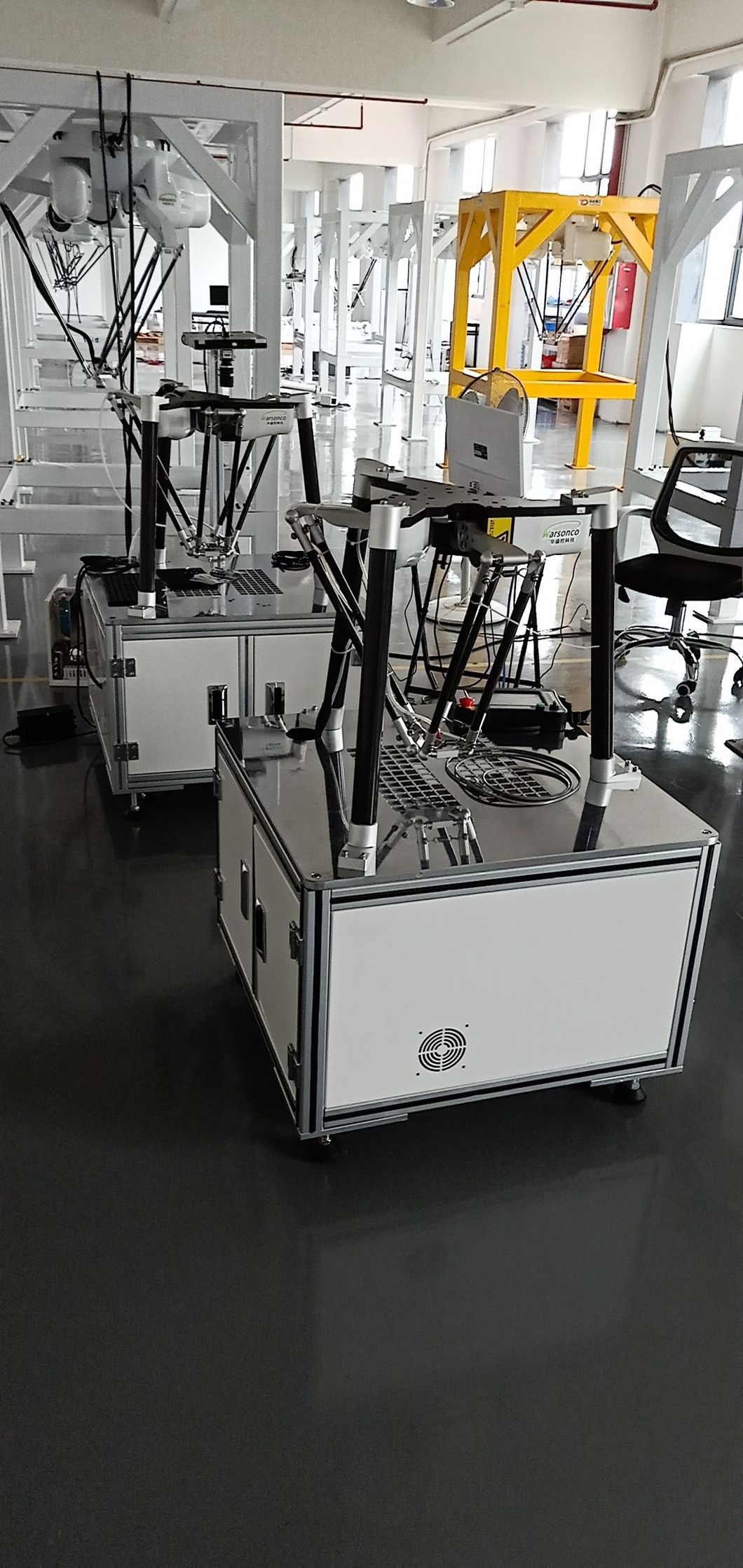

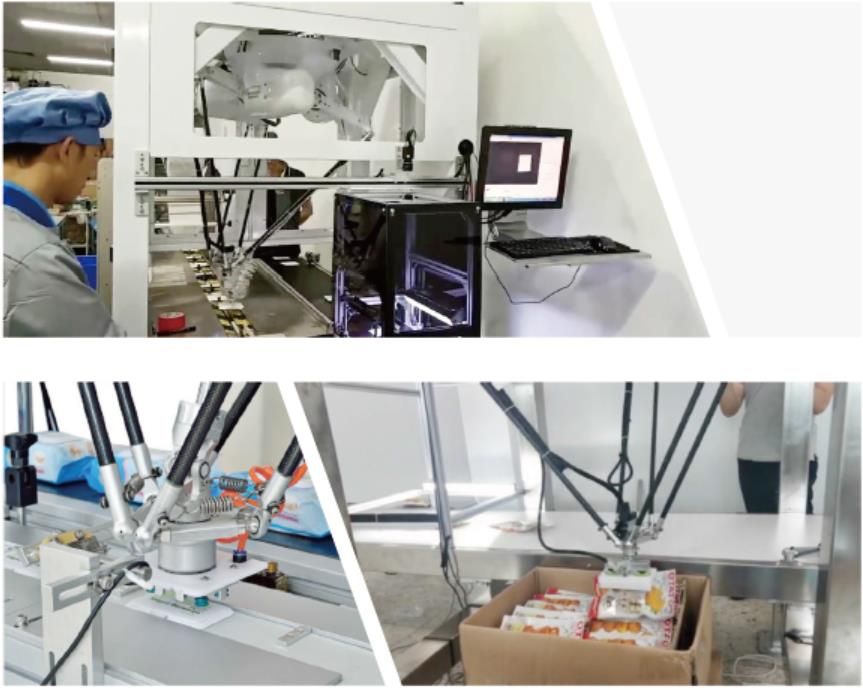

Images
martti
marttiImage Contributions
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Delta Robot AR-1000D?
The A&R AR-1000D is a delta (three-DOF spatial parallel) robot built for high-rate pick-and-place over a 1000 mm working diameter.
Who makes the Delta Robot AR-1000D?
The Delta Robot AR-1000D is made by AE Robotics Co., Ltd., a robotics company based in China.
How much does the Delta Robot AR-1000D cost?
AE Robotics Co., Ltd. has not publicly announced pricing for the Delta Robot AR-1000D. You can enquire through RobotAIGeek for current pricing.
What is the Delta Robot AR-1000D used for?
The Delta Robot AR-1000D is designed for packaging, pick-and-place, and sorting. It is used in manufacturing settings.
What is the payload capacity of the Delta Robot AR-1000D?
The Delta Robot AR-1000D has a payload capacity of 5 kg and a reach of 1 m.
How much does the Delta Robot AR-1000D weigh?
The Delta Robot AR-1000D weighs 67 kg.
How many degrees of freedom does the Delta Robot AR-1000D have?
The Delta Robot AR-1000D has 4 degrees of freedom.
