BotEyes-Pad

Name: BotEyes-Pad
Brand: BotEyes
SKU: BotEyes-Pad wheeled telepresence robot (tablet not included)
Price: 119000 RUB
Availability: InStock

BotEyes

Mobile-Robots Russia

RussiaReleased

★Not rated yet

Compare

Sources:

boteyes.ru

Industries:

Commercial Education Healthcare Homes

Uses:

Information HelpingTelepresence

Price:

Not announced

Model:

BotEyes-Pad wheeled telepresence robot (tablet not included)

DESCRIPTION

BotEyes-Pad is a Mobile-Robots from BotEyes. It is built for Information, Helping, Telepresence. Key figures: 13 kg, 600 min runtime, price 119,000 RUB.

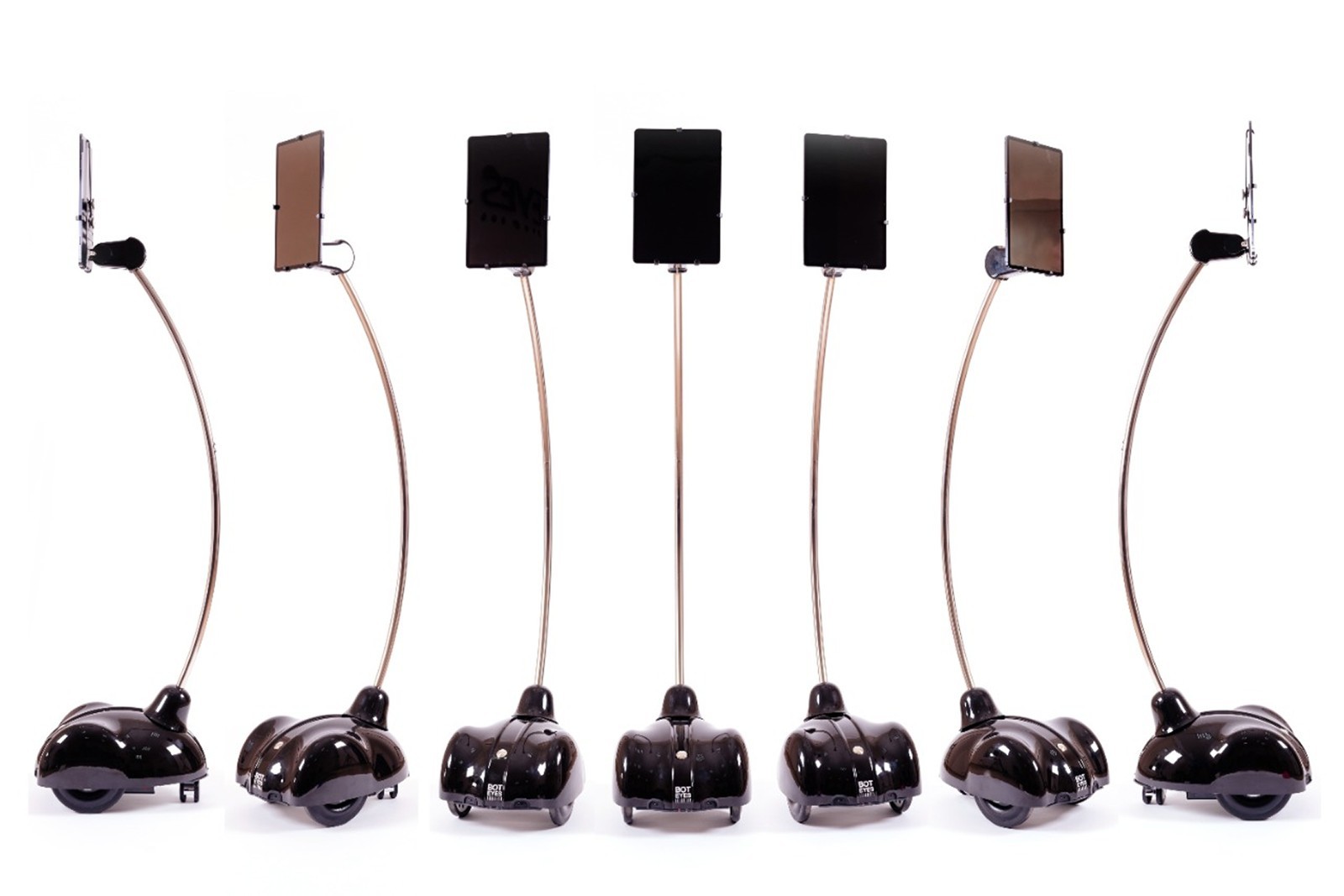

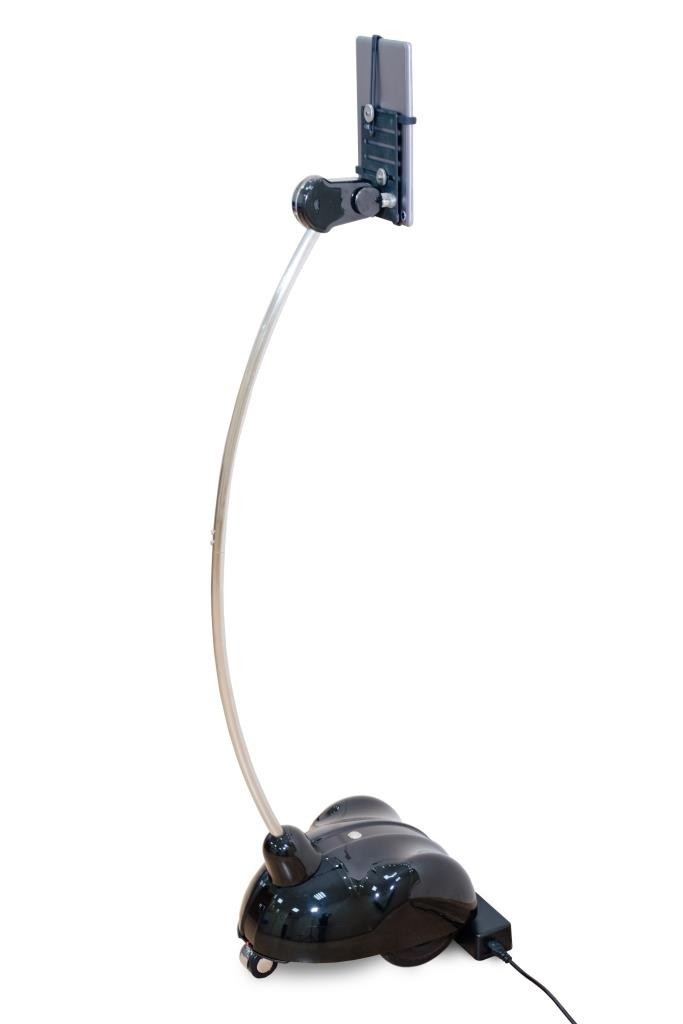

BotEyes-Pad is the wheeled floor model of NIL AP's BotEyes telepresence robots. Its slim steel mast, curved when seen from the side, rises from a rounded black base and carries any Android, iOS or Windows tablet from 8 to 12 inches as the robot's head, in portrait or landscape, so a remote user can drive through an office, factory or clinic from a phone, tablet or computer browser and talk face to face over WebRTC video, or use Skype, Zoom, WhatsApp and similar apps instead. The tablet tilts 160 degrees up and 180 degrees down to look at floor or ceiling, the user can switch between front and rear cameras, zoom digitally, take photos and video and share a desktop screen. Speed is smoothly adjustable from 0 to 2.5 km/h, two front infrared sensors prevent collisions, it climbs door sills up to 1.5 cm, and the heavy batteries in the base keep it from tipping. Two non-spillable 12 V, 7 Ah lead-acid batteries give about 10 hours of work, and it returns to its docking station automatically and charges the tablet too. A separate on-board computer drives the wheels over an independent channel, the video link is encrypted, and the robot stands 140 cm tall on a 29 x 39 cm base and weighs 13 kg.

FEATURES

Bring-your-own tablet (Android, iOS, Windows
8-12 in.), portrait or landscape
Tablet tilt 160 deg up / 180 deg down
360 deg screen rotation
Speed 0-2.5 km/h, smoothly adjustable while driving
Two front infrared obstacle sensors
collision prevention
Climbs door sills up to 1.5 cm
heavy base - does not tip over
2 x 12 V 7 Ah non-spillable lead-acid batteries
~10 h runtime
~10 h full charge
Auto-docking station (100-240 V) and automatic tablet charging
auto-answer
WebRTC video by default (or Skype, Zoom, etc.)
HTTPS, DTLS-SRTP, AES-128
Front/rear camera switching, digital zoom, photo/video capture, screen sharing
Driven from any browser on phone, tablet or PC
separate wheel-control computer
140 x 29 x 39 cm (H x W x L)
13 kg
steel and ABS
0-60 C

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	13 kg
Dimensions	L 390 mm × W 290 mm × H 1.4 m
Mobility
Movement Type	Wheeled
Speed	2.5 km/h
Environment	Offices, factory floors, hospitals, schools, showrooms and homes (indoor, flat floors)
Power
Battery Life	600 min
Charging Type	docking station
Sensing & Compute
Sensors	2 front infrared obstacle sensors, tablet cameras
Connectivity	Wi-Fi 2.4 GHz; WebRTC; browser control
