DESCRIPTION
B-Series Intelligent Transfer Robot is a Mobile-Robots from Hangcha. It is built for Intralogistics, Material-Handling, Transport.

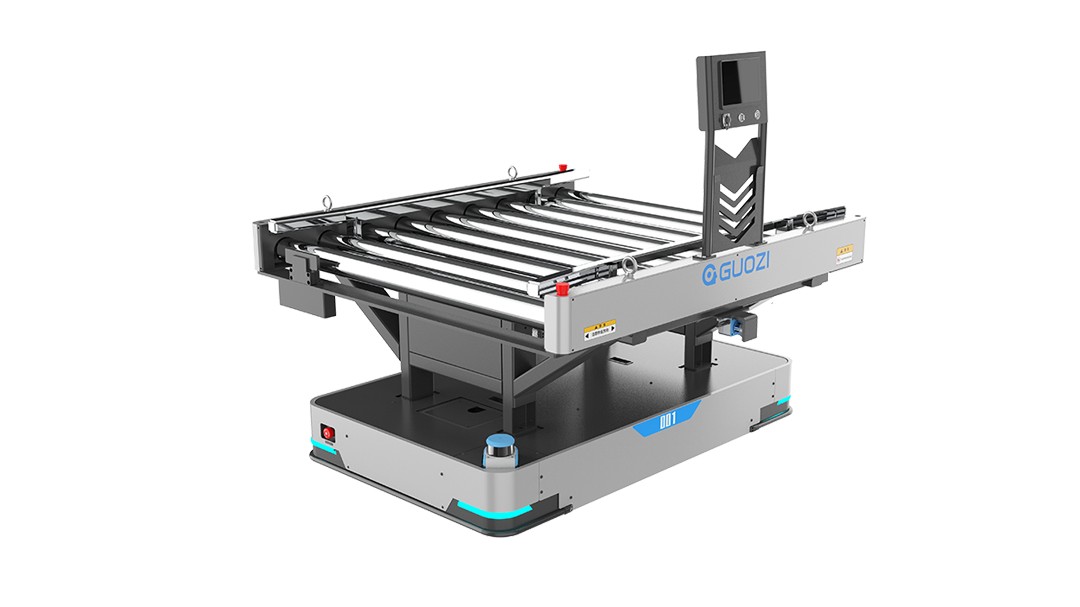

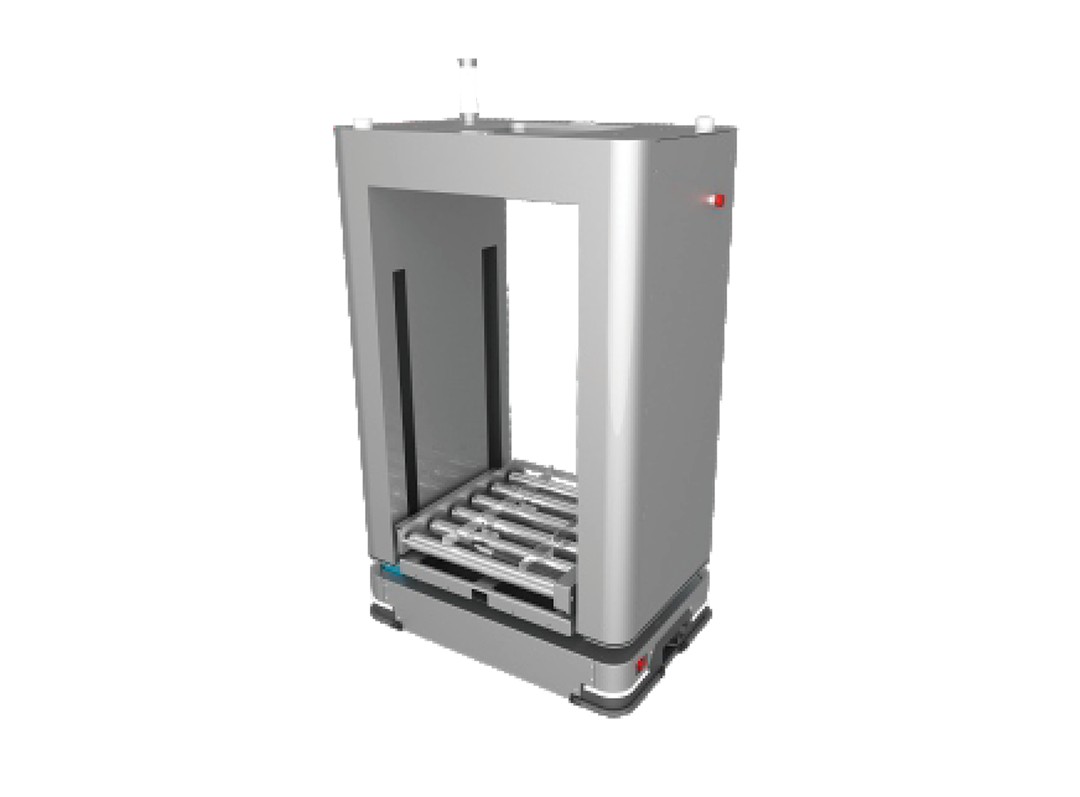

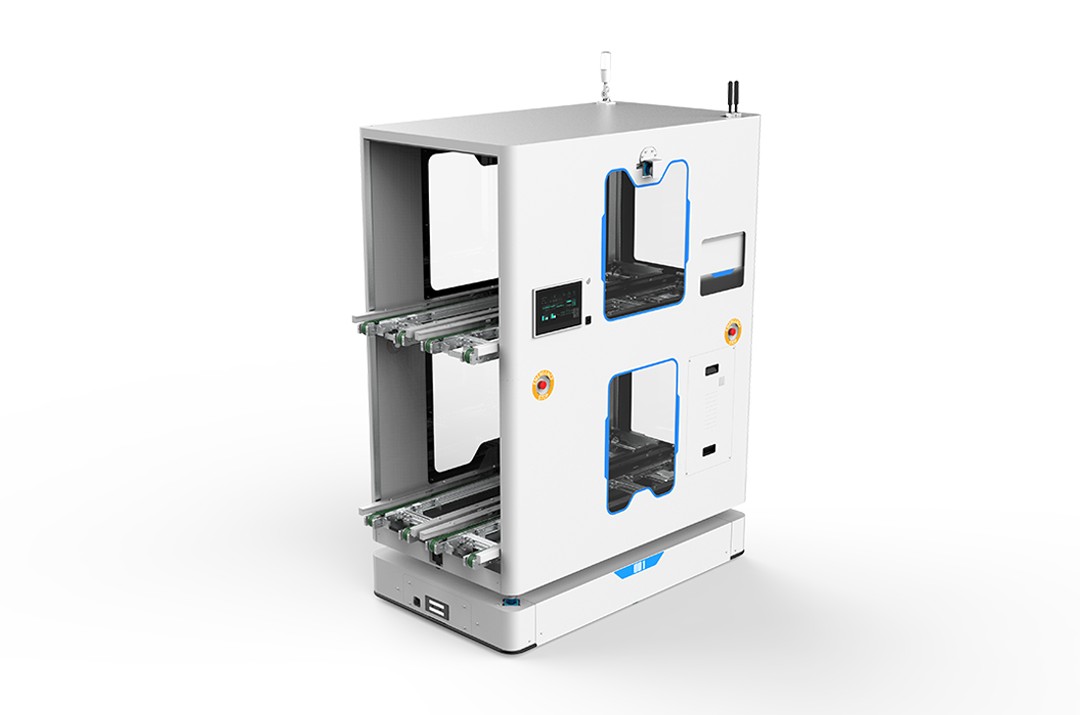

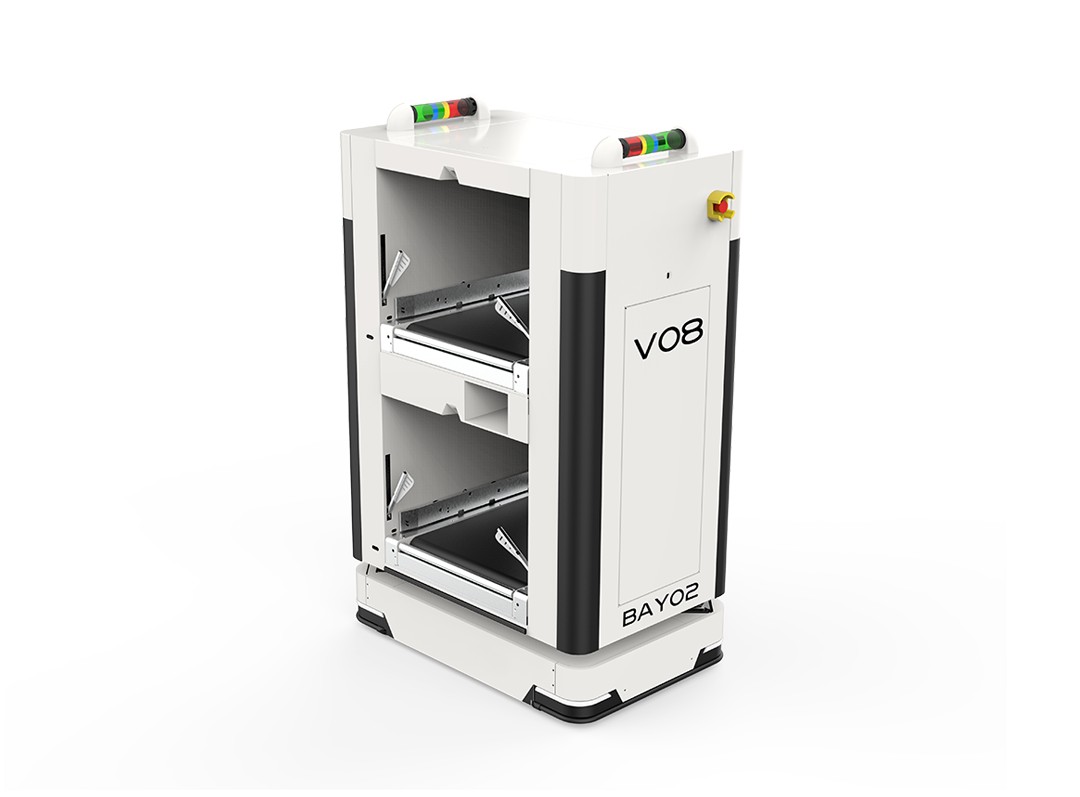

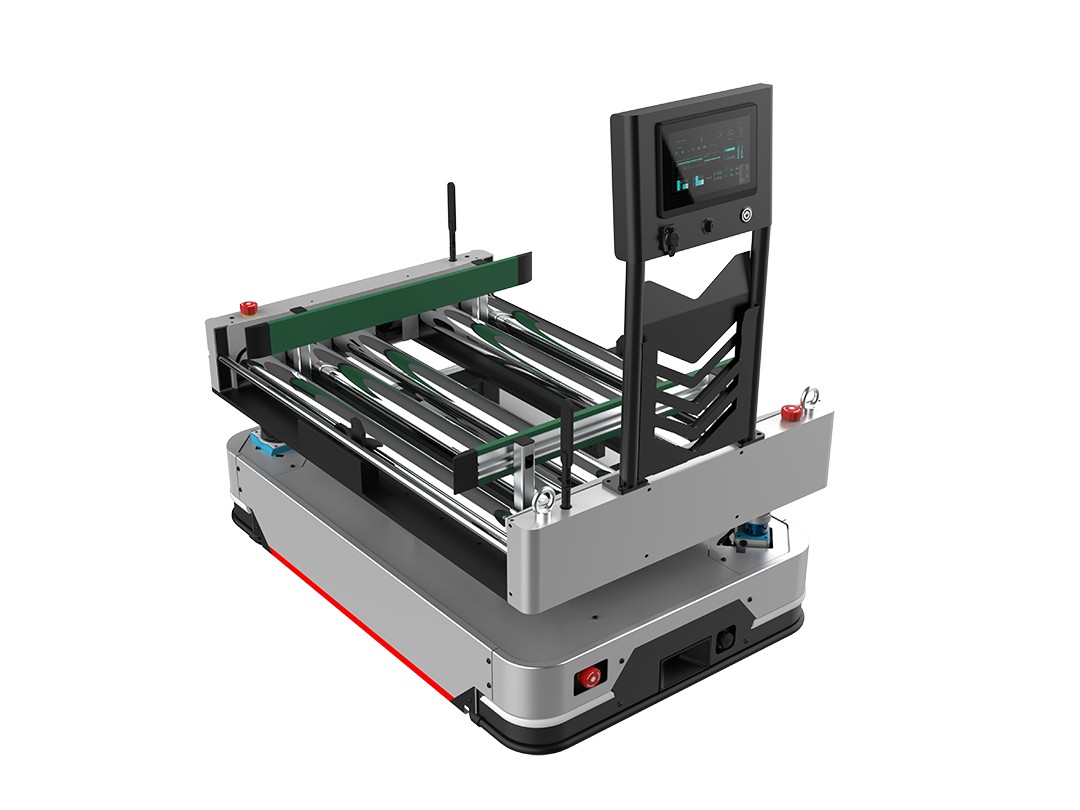

Hangcha's intelligent transfer robots are autonomous mobile robots with interchangeable top modules for moving material between production equipment, storage and workstations. Models carry roller conveyors, lifting frames or bin racks. Listed models are the B5-BSS22AL60, B5-RSDX1IL60, BX-TFS24IL240, B5-RSD11IL300 and B10-RFD11IL800. They range from 1,063 x 657 mm to 1,594 x 1,019 mm in footprint and drive forwards, backwards, turn and rotate on the spot. They navigate by QR code or laser and stop within +/-5 mm, or +/-2 mm on the laser-only BX model.
FEATURES
- B5-BSS22AL60: External dimensions L×W×H 1063×657×1588 (mm)
- Rotation diameter 1440 (mm)
- Navigation methods QR code navigation (Q) / Laser navigation (L)
- Stop repeating precision ±5 (mm)
- Stop angle accuracy <0.5 (mm)
- walking style Forward, backward, turn, rotate
- B5-RSDX1IL60: External dimensions L×W×H 1063×657×1790 (mm)
- Rotation diameter 1140 (mm)
- Navigation methods QR code navigation (Q) / Laser navigation (L)
- Stop repeating precision ±5 (mm)
- Stop angle accuracy <0.5 (mm)
- walking style Forward, backward, turn, rotate
- BX-TFS24IL240: External dimensions L×W×H 1594×1019×2346 (mm)
- Rotation diameter 1750 (mm)
- Navigation methods Laser navigation (L)
- Stop repeating precision ±2 (mm)
- Stop angle accuracy <0.5 (mm)
- Walking style Forward, backward, turn, rotate
- B5-RSD11IL300: External dimensions L×W×H 1450×915×830 (mm)
- Rotation diameter 1140 (mm)
- Navigation methods QR code navigation (Q) / Laser navigation (L)
- Stop repeating precision ±5 (mm)
- Stop angle accuracy <0.5 (mm)
- Walking style Forward, backward, turn, rotate
- B10-RFD11IL800: External dimensions L×W×H 1454×1470×1403 (mm)
- Rotation diameter 1930 (mm)
- Navigation methods QR code navigation (Q) / Laser navigation (L)
- Stop repeating precision ±5 (mm)
- Stop angle accuracy <0.5 (mm)
- Walking style Forward, backward, turn, rotate
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 1.06 m × W 657 mm × H 830 mm |
|---|---|
| Repeatability | ±5 mm |
| Mobility | |
| Movement Type | Wheeled |
| Environment | Indoor factories, warehouses and fulfilment centres |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 1.06 m × W 657 mm × H 830 mm |
|---|---|
| Repeatability | ±5 mm |
| Mobility | |
| Movement Type | Wheeled |
| Environment | Indoor factories, warehouses and fulfilment centres |
Images
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the B-Series Intelligent Transfer Robot?
Hangcha's intelligent transfer robots are autonomous mobile robots with interchangeable top modules for moving material between production equipment, storage and workstations. Models carry roller conveyors, lifting frames or bin racks.
Who makes the B-Series Intelligent Transfer Robot?
The B-Series Intelligent Transfer Robot is made by Hangcha, a robotics company based in China.
How much does the B-Series Intelligent Transfer Robot cost?
Hangcha has not publicly announced pricing for the B-Series Intelligent Transfer Robot. You can enquire through RobotAIGeek for current pricing.
What is the B-Series Intelligent Transfer Robot used for?
The B-Series Intelligent Transfer Robot is designed for intralogistics, material-handling, transport, and autonomous transfer robots with conveyor, lift and fork tops for factory material handling. It is used in warehouse & logistics and manufacturing settings.
