DESCRIPTION
Ants Under-Ride Lift Robot is a Mobile-Robots from Hangcha. It is built for Intralogistics, Material-Handling, Transport. Key figures: 2000 kg payload.
Hangcha's under-ride lift robots are low autonomous mobile robots, 265-340 mm tall, that drive underneath shelves, racks or carts, lift them on a top plate and carry them away. They are used in goods-to-person picking and factory material transport. The range runs from the 50 kg AM50 (640 x 450 x 340 mm, 70 kg) through the Ants 3 (400 kg), Ants 10s (1,200 kg) and Ants 15 (1,600 kg) to the Ants 20, which lifts 2,000 kg on a 1,080 x 768 mm plate and weighs 210 kg. Ground clearance is 20-30 mm and the rotation diameter 720-1,150 mm.
FEATURES

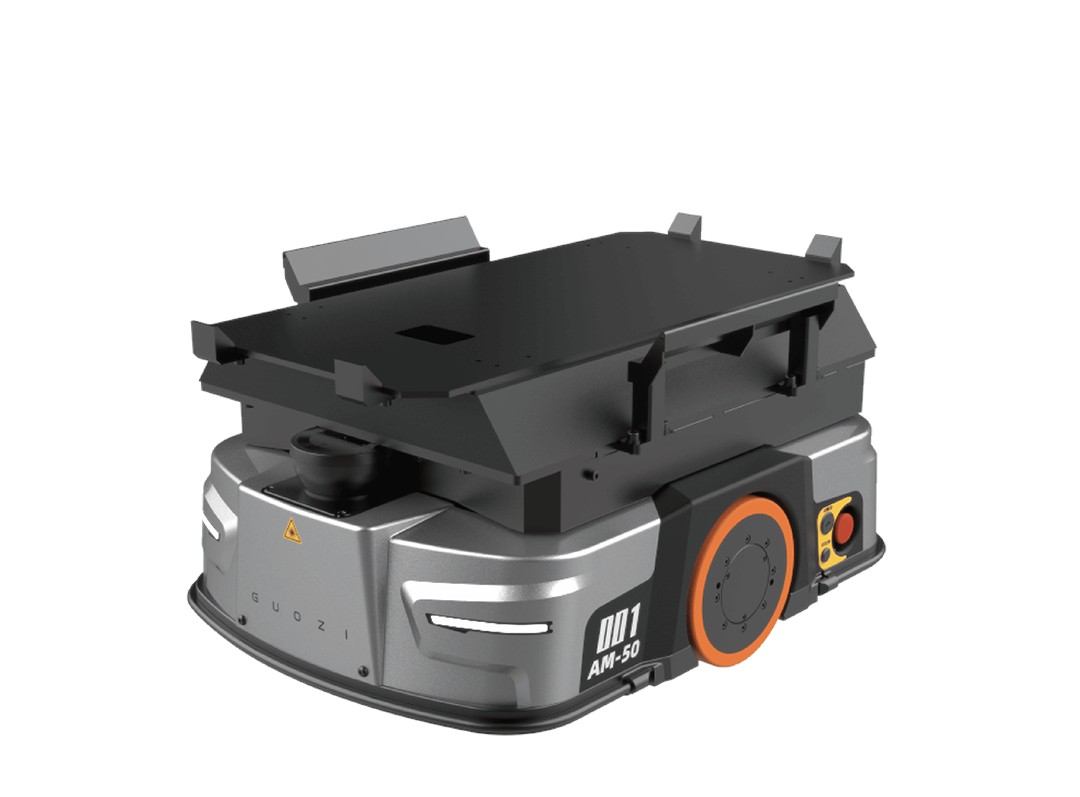

- AM50: External dimensions L×W×H 640×450×340 (mm)
- Lifting plate size L×W 640×260 (mm)
- Rated load 50 (kg)
- Weight 70 (kg)
- Chassis ground clearance 20 (mm)
- Rotation diameter 720 (mm)
- Ants 3: External dimensions L×W×H 795×560×285 (mm)
- Lifting plate size L×W 691×521 (mm)
- Rated load 400 (kg)
- Weight 100 (kg)
- Chassis ground clearance 20 (mm)
- Rotation diameter 860 (mm)
- Ants 10s: External dimensions L×W×H 995×650×265 (mm)
- Lifting plate size L×W 900×605 (mm)
- Rated load 1200 (kg)
- Weight 155 (kg)
- Chassis ground clearance 30 (mm)
- Rotation diameter 996 (mm)
- Ants 15: External dimensions L×W×H 1146×810×275 (mm)
- Lifting plate size L×W 1080×768 (mm)
- Rated load 1600 (kg)
- Weight 210 (kg)
- Chassis ground clearance 30 (mm)
- Rotation diameter 1150 (mm)
- Ants 20: External dimensions L×W×H 1146×810×275 (mm)
- Lifting plate size L×W 1080×768 (mm)
- Rated load 2000 (kg)
- Weight 210 (kg)
- Chassis ground clearance 30 (mm)
- Rotation diameter 1150 (mm)
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 2000 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Environment | Indoor factories, warehouses and fulfilment centres |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 2000 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Environment | Indoor factories, warehouses and fulfilment centres |
Images
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Ants Under-Ride Lift Robot?
Hangcha's under-ride lift robots are low autonomous mobile robots, 265-340 mm tall, that drive underneath shelves, racks or carts, lift them on a top plate and carry them away. They are used in goods-to-person picking and factory material transport.
Who makes the Ants Under-Ride Lift Robot?
The Ants Under-Ride Lift Robot is made by Hangcha, a robotics company based in China.
How much does the Ants Under-Ride Lift Robot cost?
Hangcha has not publicly announced pricing for the Ants Under-Ride Lift Robot. You can enquire through RobotAIGeek for current pricing.
What is the Ants Under-Ride Lift Robot used for?
The Ants Under-Ride Lift Robot is designed for intralogistics, material-handling, transport, and low under-ride amrs that slip beneath racks and carts and lift 50-2,000 kg. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the Ants Under-Ride Lift Robot?
The Ants Under-Ride Lift Robot has a payload capacity of 2,000 kg.
