Angel Hand

Name: Angel Hand
Brand: Bendita Bionics
SKU: Angel Hand
Price: 285000 INR
Availability: InStock

Bendita Bionics

Medical-Robots India

IndiaReleased

★Not rated yet

Compare

Sources:

bendita.in

Industries:

Healthcare

Uses:

Material-Handling Medical-Assistance Rehabilitation Helping

Price:

Not announced

DESCRIPTION

Angel Hand is a Medical-Robots from Bendita Bionics. It is built for Material-Handling, Medical-Assistance, Rehabilitation. Key figures: 0.4 kg, 1440 min runtime, 8 kg payload, price 285,000 INR.

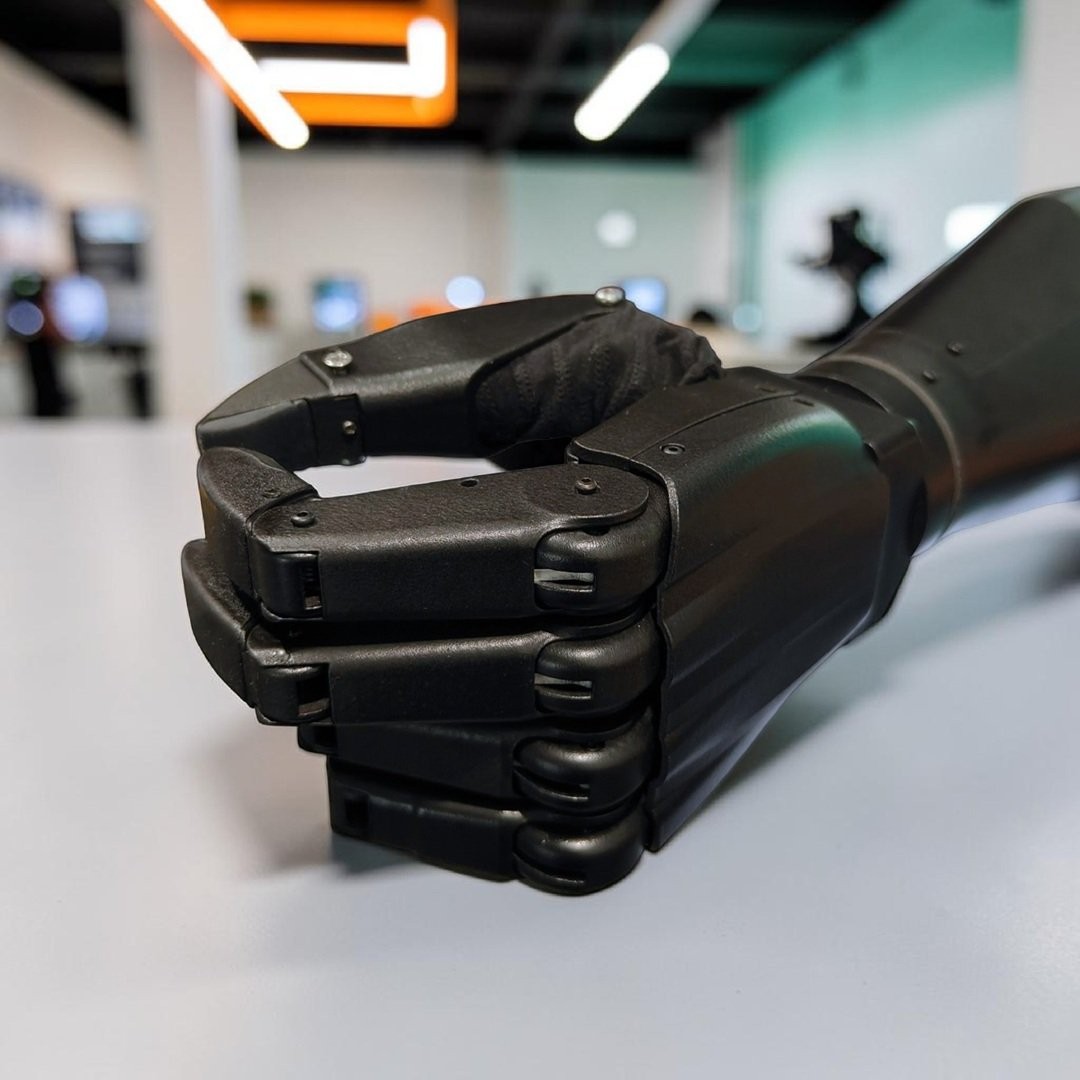

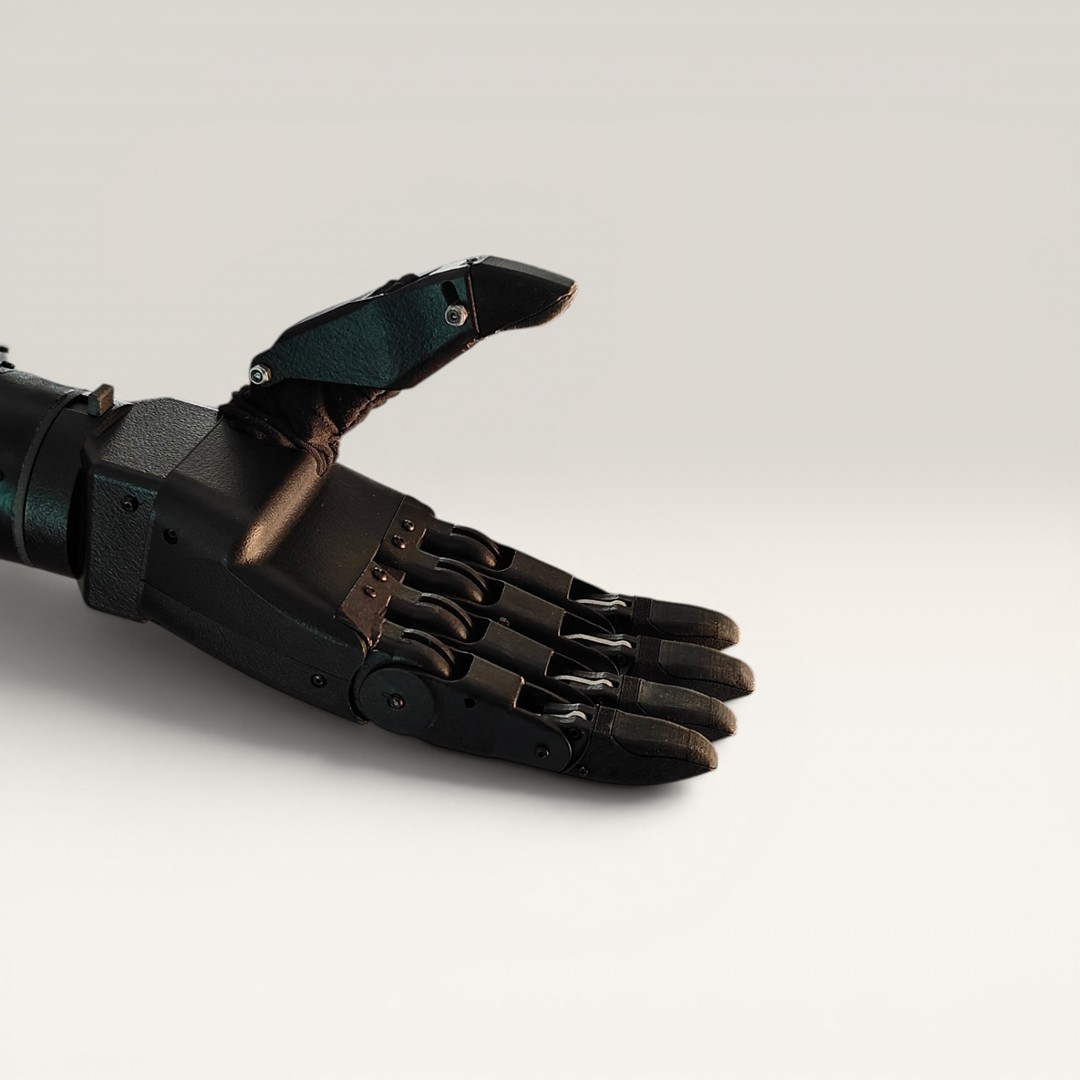

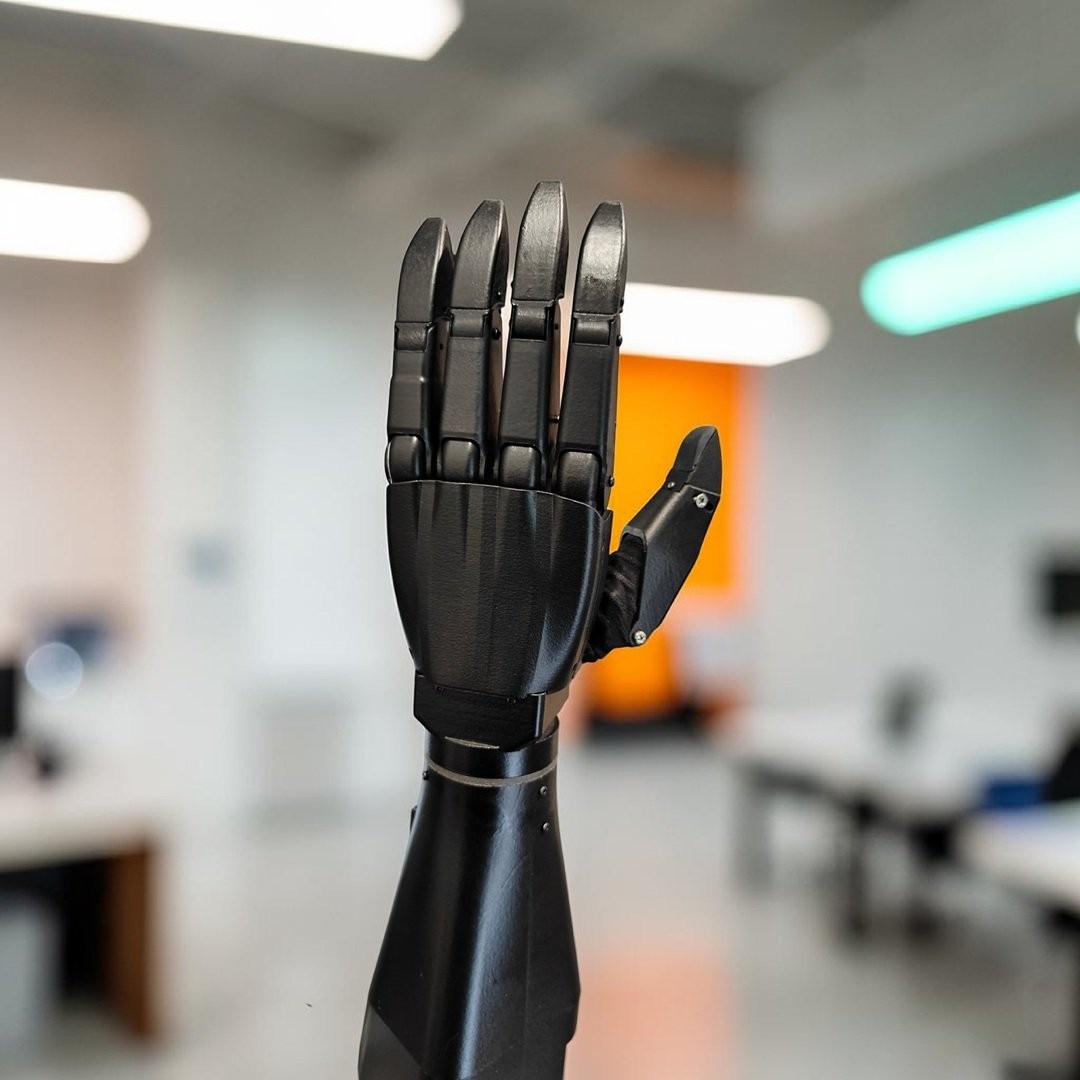

The Angel Hand is a multi-articulating myoelectric bionic hand from Bendita Bionics for people with below-elbow limb differences. Surface EMG electrodes in the socket pick up muscle signals from the residual limb, and an onboard processor classifies the user's intent in under 80 ms; an AI pattern-recognition classifier adapts to each user over time. Users open the hand with one muscle group, close it with another and co-contract both to freeze a grip, with grip speed and force proportional to contraction. The hand weighs 400 g and is built from an SLS 3D-printed PA12 nylon frame with aluminium and stainless-steel finger linkages driven by brushless DC motors. A powered thumb rotates between opposed and non-opposed positions, giving shake-hand, precision, tripod, key and hook grips. The maker quotes a grip force of 100 N (75 N in its comparison table), carry load of 8 kg and a 24-hour runtime from a 7.4 V, 2,700 mAh Li-ion battery; LEDs show grip mode and battery status. For above-elbow users the hand combines with the 960 g motorised Angel Elbow as the Angel Arm. Bendita sells through authorised clinics across India, with prices from INR 2.85 lakh for the Angel Hand and INR 4.25 lakh for the Angel Arm, including a two-year warranty.

FEATURES

Myoelectric multi-articulating bionic hand for below-elbow (transradial) users
Weight 400 g
Grip force 100 N (product page headline
comparison table says up to 75 N)
Finger force 5 kg-cm
Carry load up to 8 kg
Closing speed 1.2 s (comparison table)
6+ grip modes (FAQ says up to eight)
main grips: shake hand, precision, tripod, key, hook
Powered thumb rotation: opposed and non-opposed positions
Surface EMG electrodes in the socket
Intent-to-motion classification in under 80 ms
AI pattern recognition that learns each user's EMG profile
Proportional grip speed and force
Freeze control by co-contraction to hold a grip without effort
Grip switching by co-contraction signal or button
Real-time EMG signal monitoring display
Visual feedback LEDs for grip mode and battery status
SLS 3D-printed PA12 nylon frame and shell
Aluminium and stainless-steel finger linkages
Brushless DC finger actuators
7.4 V, 2,700 mAh Li-ion battery
24-hour runtime
2-year warranty, spare battery and clinical support included

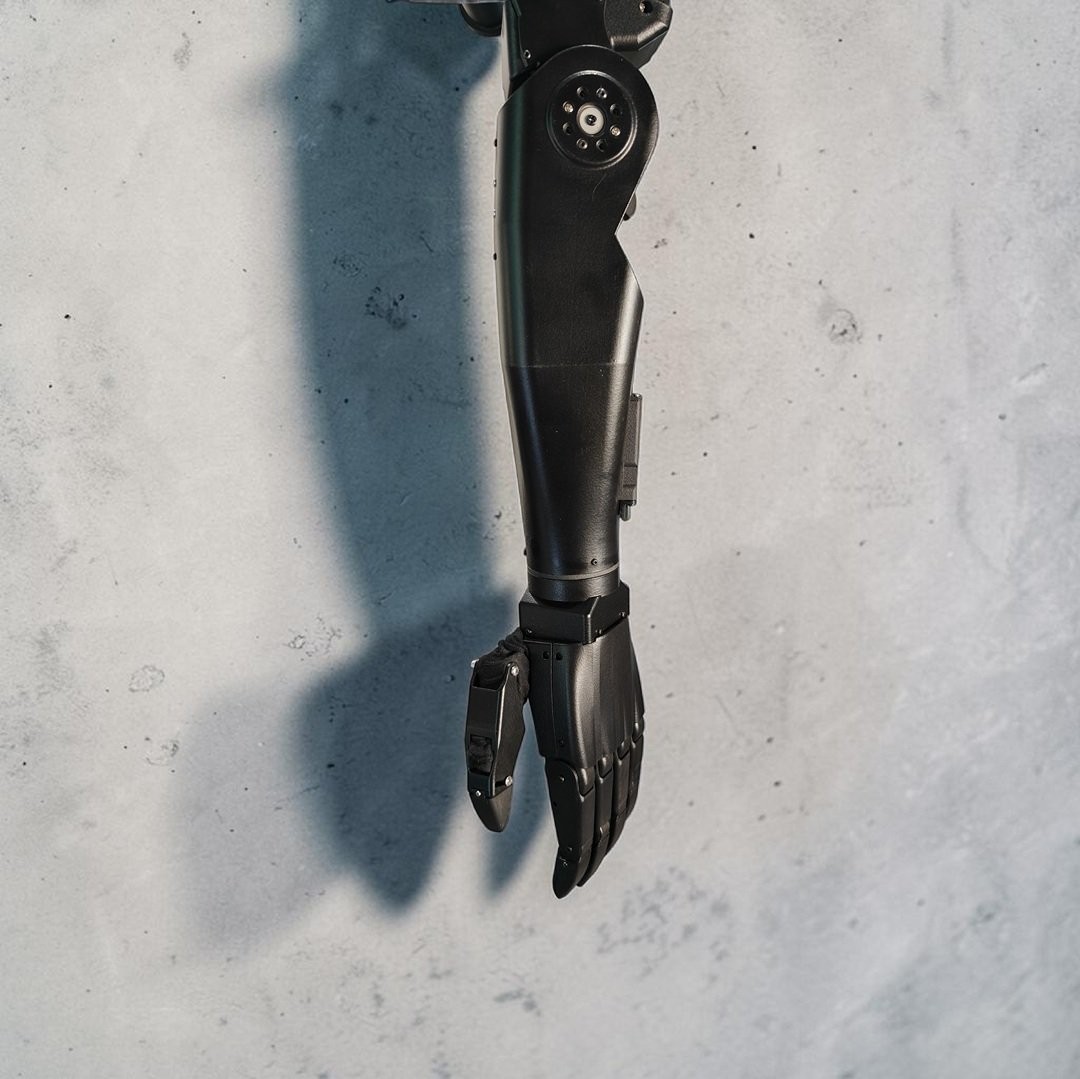

Angel Arm option: Angel Hand plus motorised Angel Elbow for above-elbow users
Angel Elbow: 960 g, 2 s lift, 11.1 V Li-ion, payload 2 kg (comparison table: 1 kg)
Angel Elbow: EMG and shoulder-flexion gesture control, unpowered hold, SafeDrop controlled lowering, manual override

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	0.4 kg
Payload	8 kg
Materials	PA12 nylon (SLS 3D-printed), Aluminium, Stainless steel
Mobility
Movement Type	Other
Environment	Worn daily by the user
Actuators	Brushless DC finger motors; powered thumb rotation
Power
Battery Life	1440 min
Sensing & Compute
Sensors	Surface EMG electrodes
Software / AI	On-board EMG intent classifier with AI pattern recognition
