DESCRIPTION
4-Series (40mm Pitch) is an Industrial-Robot from Planar Motor. It is built for Transport. Key figures: 13 kg, 1.8 kg payload.
The 4-Series (40mm Pitch) is an industrial robot from Planar Motor. Introduced in 2024, this robot is designed for the magnetically levitated transport of payloads in manufacturing industrial environments. What sets the 4-Series apart is its M4 XBot S4 flyway technology. These movers are magnetically levitated above the surface of Flyways, utilizing strong directional permanent magnets. This design focuses the magnetic field beneath the XBot, minimizing it above, which creates a safe mounting surface for products and accessories. The XBots offer multiple threaded mounting holes and dowel pin locations, allowing for numerous fixturing possibilities. M4 XBots are available in sizes starting at 160mm x 160mm and larger. The 4-Series features a 40mm magnetic pitch and a maximum levitation height of 6mm, capable of handling payloads ranging from 1.8 kg to 40 kg. Deployment evidence for this robot is available.
FEATURES

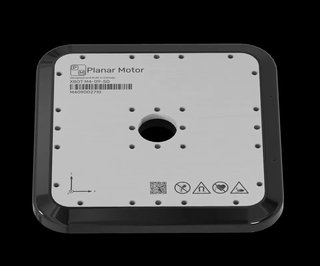

- M4 XBot S4 flyway M4 XBot XBots (movers) are magnetically levitated above the surface of Flyways.
- They rely on incredibly strong directional permanent magnets which focus the magnetic field beneath them and minimize it above the XBot, creating a safe mounting surface for products and accessories.
- With multiple threaded mounting holes and dowel pin locations, there are many possibilities for fixturing.
- M4 XBots are available in sizes starting at 160mm x 160mm and larger.
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 13 kg |
|---|---|
| Payload | 1.8 kg |
| Mobility | |
| Movement Type | Other |

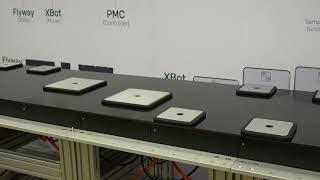

Videos
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 13 kg |
|---|---|
| Payload | 1.8 kg |
| Mobility | |
| Movement Type | Other |
Images
martti
Image Contributions
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the 4-Series (40mm Pitch)?
The 4-Series (40mm Pitch) is an industrial robot from Planar Motor. Introduced in 2024, this robot is designed for the magnetically levitated transport of payloads in manufacturing industrial environments. What sets the 4-Series apart is its M4 XBot S4 flyway technology.
Who makes the 4-Series (40mm Pitch)?
The 4-Series (40mm Pitch) is made by Planar Motor, a robotics company based in Canada.
How much does the 4-Series (40mm Pitch) cost?
Planar Motor has not publicly announced pricing for the 4-Series (40mm Pitch). You can enquire through RobotAIGeek for current pricing.
What is the 4-Series (40mm Pitch) used for?
The 4-Series (40mm Pitch) is designed for transport. It is used in manufacturing settings.
What is the payload capacity of the 4-Series (40mm Pitch)?
The 4-Series (40mm Pitch) has a payload capacity of 1.8 kg.
How much does the 4-Series (40mm Pitch) weigh?
The 4-Series (40mm Pitch) weighs 13 kg.
