DESCRIPTION
3-Series (30mm Pitch) is an Industrial-Robot from Planar Motor. It is built for Transport. Key figures: 6.6 kg, 0.6 kg payload.

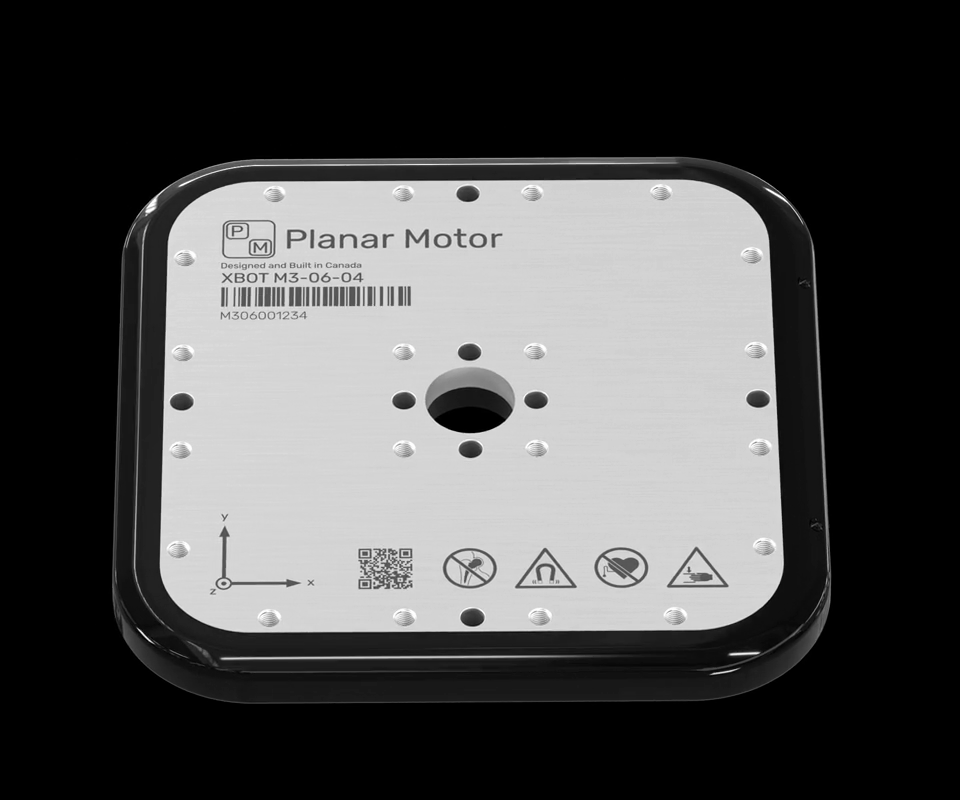

The 3-Series (30mm Pitch) is an industrial robot, medical robot, and other robot from Planar Motor. Introduced in 2017, this robot is designed for manufacturing and healthcare environments. What sets the 3-Series apart is its magnetic levitation technology. The M3 XBot S3 flyway M3 XBot XBots (movers) levitate above the surface of Flyways, utilizing strong directional permanent magnets. This design focuses the magnetic field beneath the XBot, minimizing it above, which creates a safe mounting surface for products and accessories. Multiple threaded mounting holes and dowel pin locations offer numerous fixturing possibilities. The 3-Series features a 30mm magnetic pitch and a maximum levitation height of 4mm. It supports payloads ranging from 0.6 kg to 20 kg. Deployment evidence for this robot is available.
FEATURES
- M3 XBot S3 flyway M3 XBot XBots (movers) are magnetically levitated above the surface of Flyways.
- They rely on incredibly strong directional permanent magnets which focus the magnetic field beneath them and minimize it above the XBot, creating a safe mounting surface for products and accessories.
- With multiple threaded mounting holes and dowel pin locations, there are many possibilities for fixturing.
- M3 XBots are available in sizes starting at 120mm x 120mm.
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 6.6 kg |
|---|---|
| Payload | 0.6 kg |
| Mobility | |
| Movement Type | Other |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 6.6 kg |
|---|---|
| Payload | 0.6 kg |
| Mobility | |
| Movement Type | Other |
Images
martti
Image Contributions
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the 3-Series (30mm Pitch)?
The 3-Series (30mm Pitch) is an industrial robot, medical robot, and other robot from Planar Motor. Introduced in 2017, this robot is designed for manufacturing and healthcare environments. What sets the 3-Series apart is its magnetic levitation technology.
Who makes the 3-Series (30mm Pitch)?
The 3-Series (30mm Pitch) is made by Planar Motor, a robotics company based in Canada.
How much does the 3-Series (30mm Pitch) cost?
Planar Motor has not publicly announced pricing for the 3-Series (30mm Pitch). You can enquire through RobotAIGeek for current pricing.
What is the 3-Series (30mm Pitch) used for?
The 3-Series (30mm Pitch) is designed for transport. It is used in manufacturing settings.
What is the payload capacity of the 3-Series (30mm Pitch)?
The 3-Series (30mm Pitch) has a payload capacity of 0.6 kg.
How much does the 3-Series (30mm Pitch) weigh?
The 3-Series (30mm Pitch) weighs 6.6 kg.
