설명

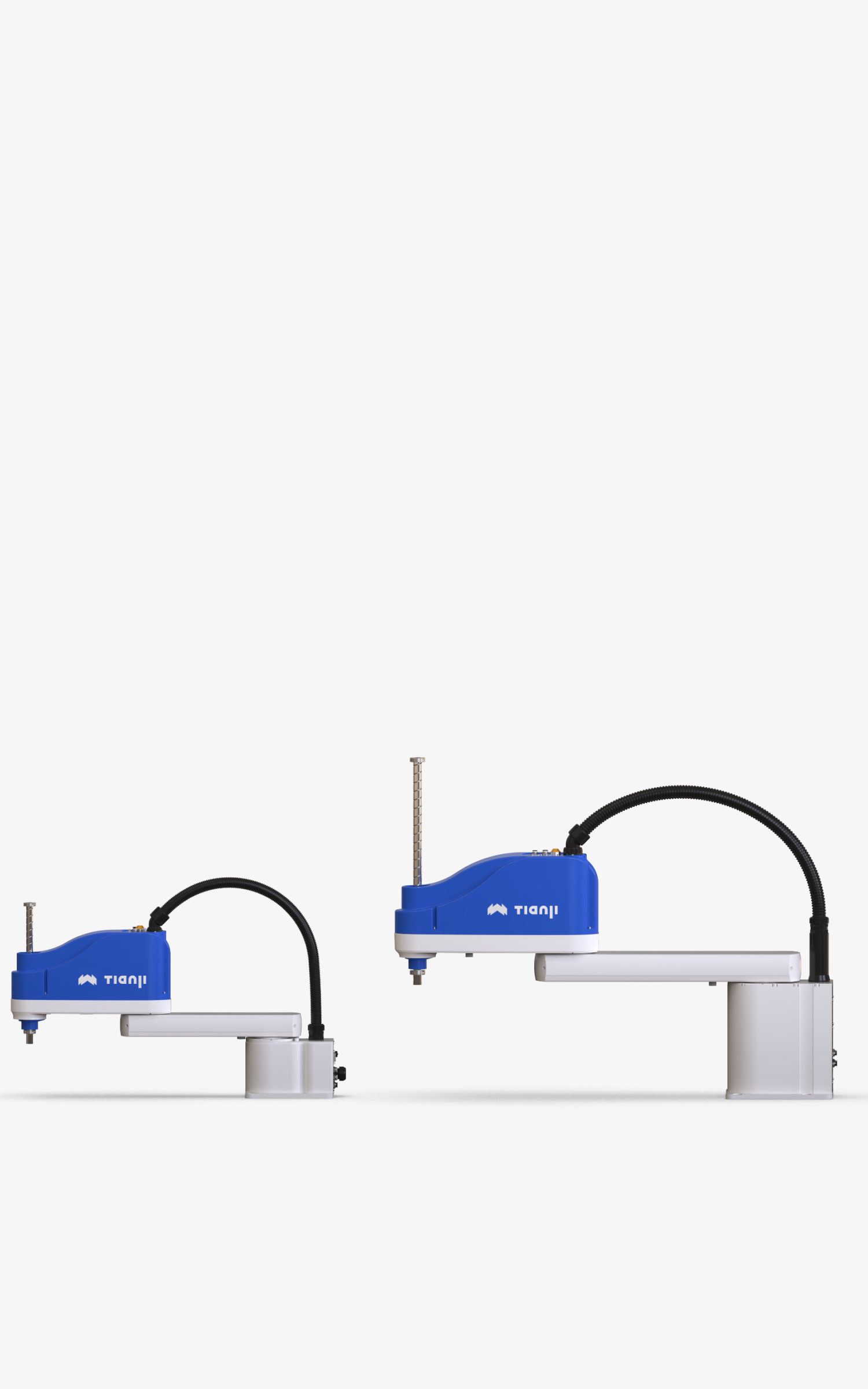

The SR10D-602 is a four-axis SCARA robot from Tianji with a 600 mm arm and 10 kg payload. It repeats to ±0.02 mm on the J1+J2 axes and completes the standard cycle in 0.4s, with a 200 (400) mm Z-axis stroke. The high-rigidity arm and robot-specific motors hold accuracy at speed for loading, assembly, inspection and palletising.
주요 기능
- 10 kg payload on a 600 mm arm
- ±0.02 mm J1+J2 repeatability
- 0.4s standard cycle time
- 200 (400) mm Z-axis stroke
- 25 kg body weight
- High-rigidity arm for stable high-speed operation
기술 사양
검증됨| 물리 사양 | |
| 무게 | 25 kg |
|---|---|
| 가반하중 | 10 kg |
| 도달거리 | 600 mm |
| 반복 정밀도 | ±0.02 mm |
| 이동성 | |
| 이동 방식 | 고정형 |
| 자유도 | 4 |
기술 사양
검증됨| 물리 사양 | |
| 무게 | 25 kg |
|---|---|
| 가반하중 | 10 kg |
| 도달거리 | 600 mm |
| 반복 정밀도 | ±0.02 mm |
| 이동성 | |
| 이동 방식 | 고정형 |
| 자유도 | 4 |
이미지
이미지 기여
동영상
로봇 포럼
포럼 불러오는 중...
평가
자주 묻는 질문
What is the SR10D-602?
The SR10D-602 is a four-axis SCARA robot from Tianji with a 600 mm arm and 10 kg payload. It repeats to ±0.02 mm on the J1+J2 axes and completes the standard cycle in 0.4s, with a 200 (400) mm Z-axis stroke.
Who makes the SR10D-602?
The SR10D-602 is made by Tianji Gento, a robotics company based in China.
How much does the SR10D-602 cost?
Tianji Gento has not publicly announced pricing for the SR10D-602. You can enquire through RobotAIGeek for current pricing.
What is the SR10D-602 used for?
The SR10D-602 is designed for 조립, 자재 취급, and 피킹. It is used in 자동차, 전자, and 제조 settings.
What is the payload capacity of the SR10D-602?
The SR10D-602 has a payload capacity of 10 kg and a reach of 600 mm.
How much does the SR10D-602 weigh?
The SR10D-602 weighs 25 kg.
How many degrees of freedom does the SR10D-602 have?
The SR10D-602 has 4 degrees of freedom.
