SCOUT MINI COBOT

AgileX Robotics Co., Ltd.
Computing-PlatformChinaChina출시됨
SCOUT MINI COBOT
비교
출처:
agilex.ai
산업:
연구교육
용도:
연구교육
가격:
미공개
출시:
2021

설명

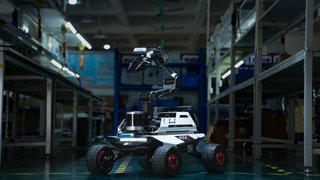

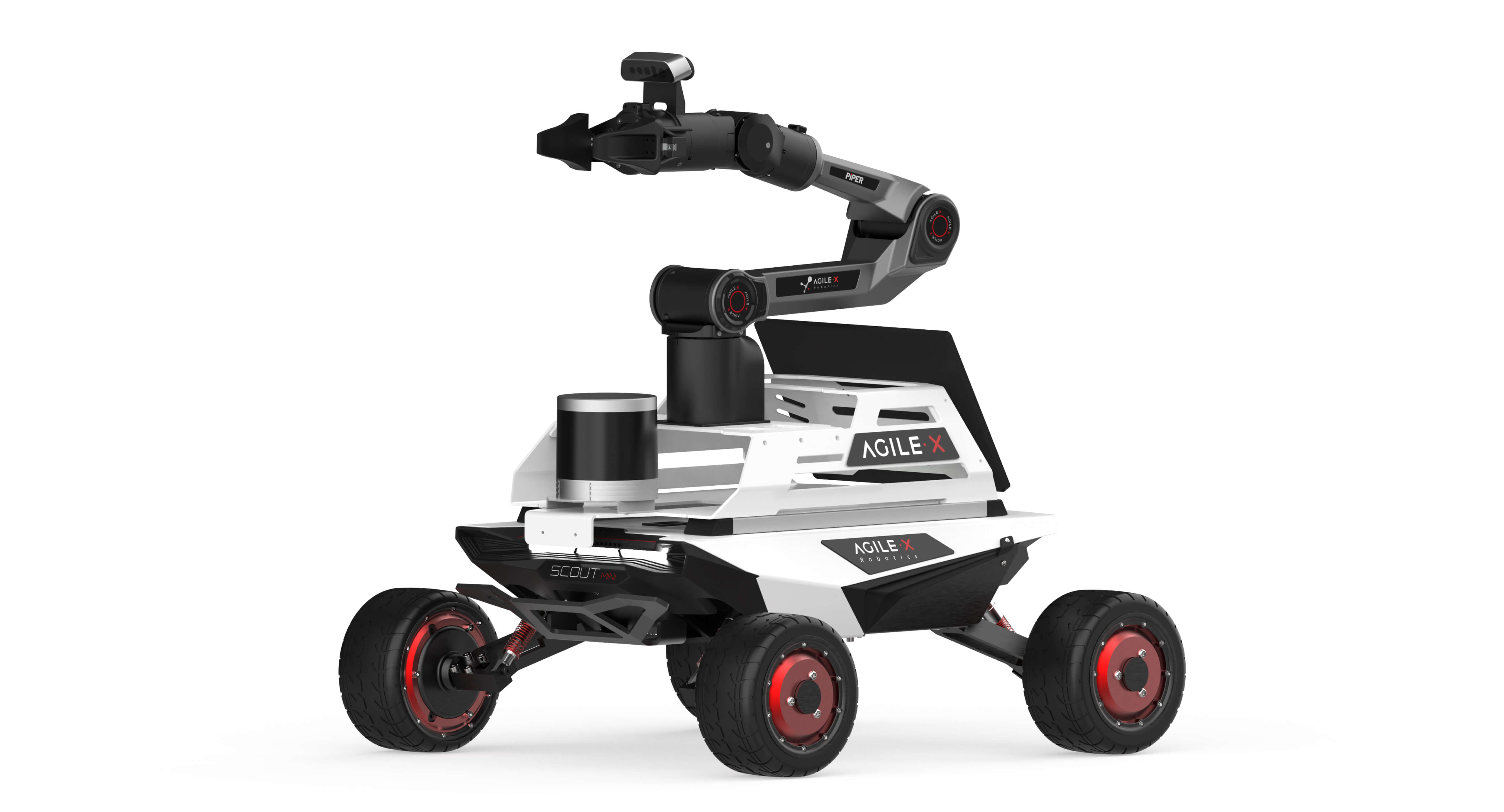

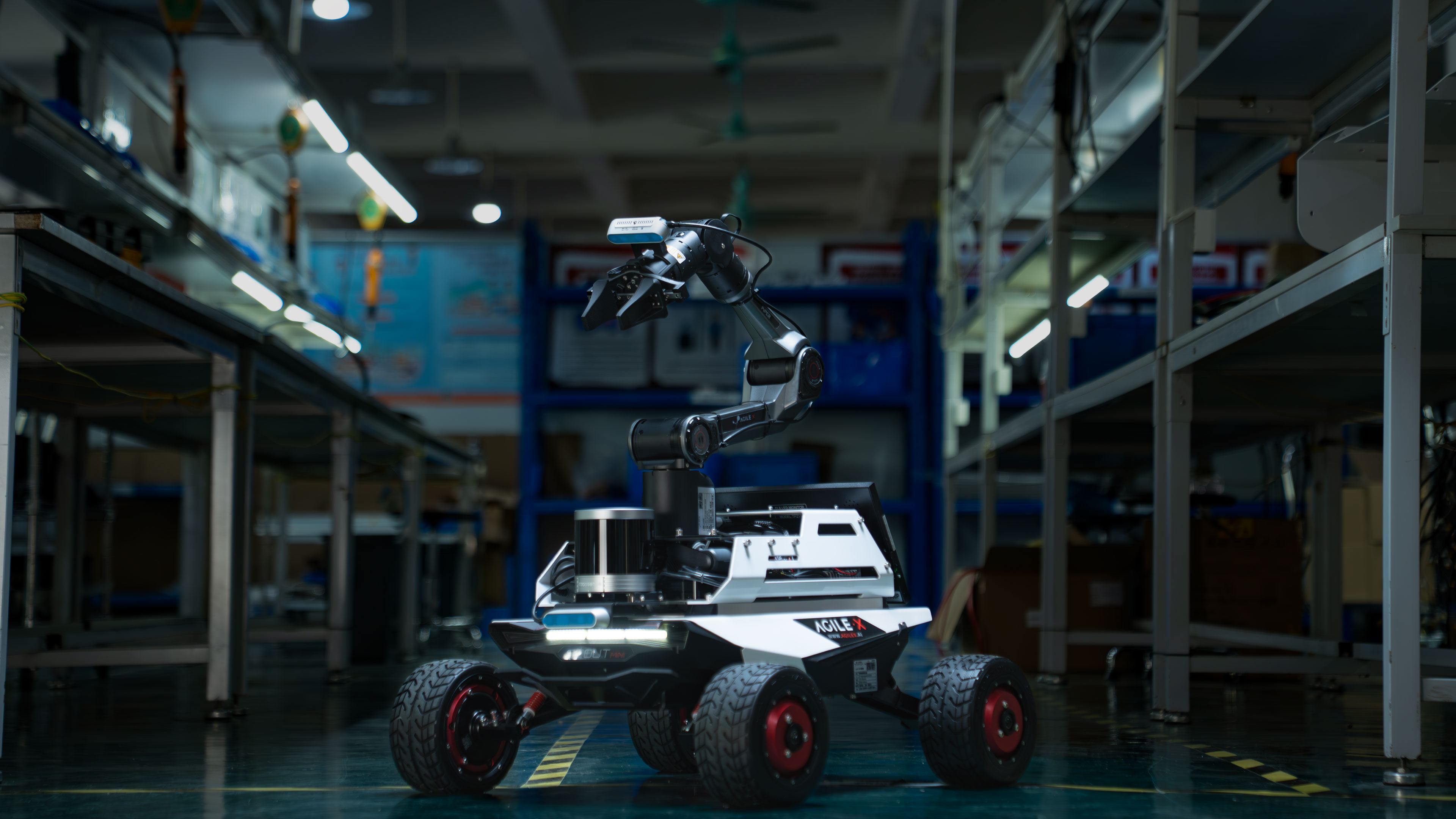

SCOUT MINI COBOT is a compact mobile manipulator from AgileX Robotics of Dongguan, China, pairing the SCOUT MINI four-wheel chassis with a PiPER six-axis arm so a single platform covers robotics, computer vision and embodied-AI coursework. The 612 x 580 x 245 mm base carries 10 kg at up to 1.5 m/s and is sealed to IP22 for -10 to 40 C operation, while the arm handles 1.5 kg over a 626 mm radius at +/-0.1 mm repeatability. An NVIDIA Jetson Orin Nano runs Ubuntu 20.04 with both ROS 1 and ROS 2, and a 16-line LiDAR with a CH110 IMU supports AB-point navigation, multi-point path planning and dynamic obstacle avoidance. QR-code recognition drives autonomous pick-and-place, so students can run complete move-grasp-place tasks out of the box. Source: https://www.agilex.ai/products/scoutminicobot

주요 기능

  • SCOUT MINI chassis plus a PiPER arm: a compact mobile-manipulation platform for teaching and research.
  • Chassis 612 x 580 x 245 mm, 10 kg payload, 1.5 m/s top speed, IP22, -10 to 40 C.
  • Arm carries 1.5 kg with a 626 mm working radius and +/-0.1 mm repeatability
  • 4.2 kg kerb weight.
  • NVIDIA Jetson Orin Nano running Ubuntu 20.04, supporting both ROS 1 and ROS 2 with a full SDK and API.
  • 16-line LiDAR and CH110 IMU over CAN

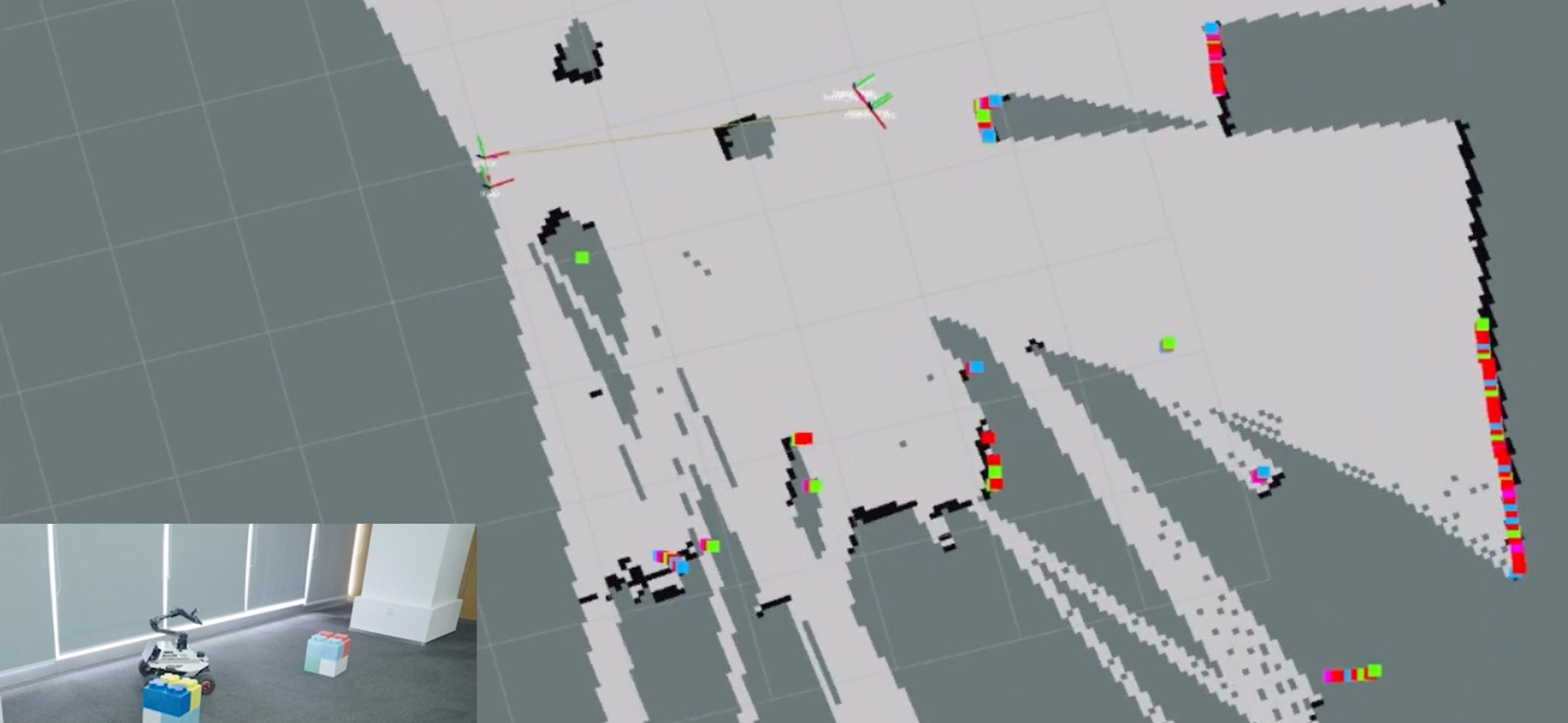

  • AB-point navigation, multi-point path planning and dynamic obstacle avoidance.

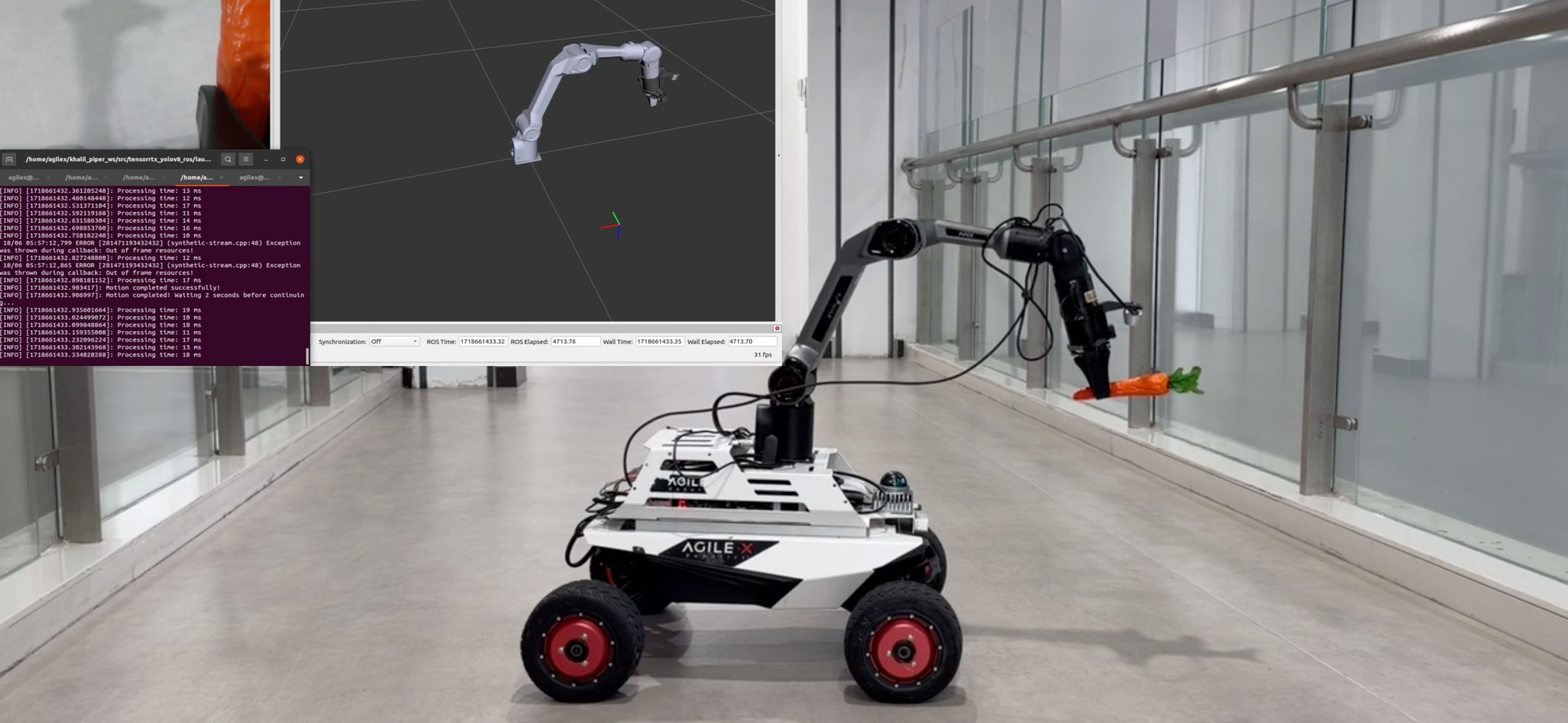

  • QR-code-guided autonomous pick and place for combined move-grasp-place tasks
  • 1 h runtime loaded, 3 h unloaded.

기술 사양

검증됨
물리 사양
가반하중10 kg
이동성
이동 방식바퀴형
자유도7
제조사 출처서드파티 출처출처 없음출처 상태는 이 로봇에 등록된 출처를 기준으로 합니다.

동영상

Video Tutorial: How to Insert a Battery into SCOUT MINI from AgileX
2026년 8월 1일
로봇 동영상

Video Tutorial: How to Insert a Battery into SCOUT MINI from AgileX

AgileX Robotics Co., Ltd.

marttimarttiflag
SCOUT MINI | AgileX Robitics Smallest UGV
2026년 7월 30일
로봇 동영상

SCOUT MINI | AgileX Robitics Smallest UGV

marttimarttiflag
Scout Mini | Compact 4WD Robot for Real Robotics Projects
2026년 7월 30일
로봇 동영상

Scout Mini | Compact 4WD Robot for Real Robotics Projects

marttimarttiflag

자주 묻는 질문

What is the SCOUT MINI COBOT?

SCOUT MINI COBOT is a compact mobile manipulator from AgileX Robotics of Dongguan, China, pairing the SCOUT MINI four-wheel chassis with a PiPER six-axis arm so a single platform covers robotics, computer vision and embodied-AI coursework.

Who makes the SCOUT MINI COBOT?

The SCOUT MINI COBOT is made by AgileX Robotics Co., Ltd., a robotics company based in China.

How much does the SCOUT MINI COBOT cost?

AgileX Robotics Co., Ltd. has not publicly announced pricing for the SCOUT MINI COBOT. You can enquire through RobotAIGeek for current pricing.

What is the SCOUT MINI COBOT used for?

The SCOUT MINI COBOT is designed for 연구 and 교육. It is used in 연구 and 교육 settings.

What is the payload capacity of the SCOUT MINI COBOT?

The SCOUT MINI COBOT has a payload capacity of 10 kg.

How many degrees of freedom does the SCOUT MINI COBOT have?

The SCOUT MINI COBOT has 7 degrees of freedom.

When was the SCOUT MINI COBOT released?

The SCOUT MINI COBOT was released in 2021.
