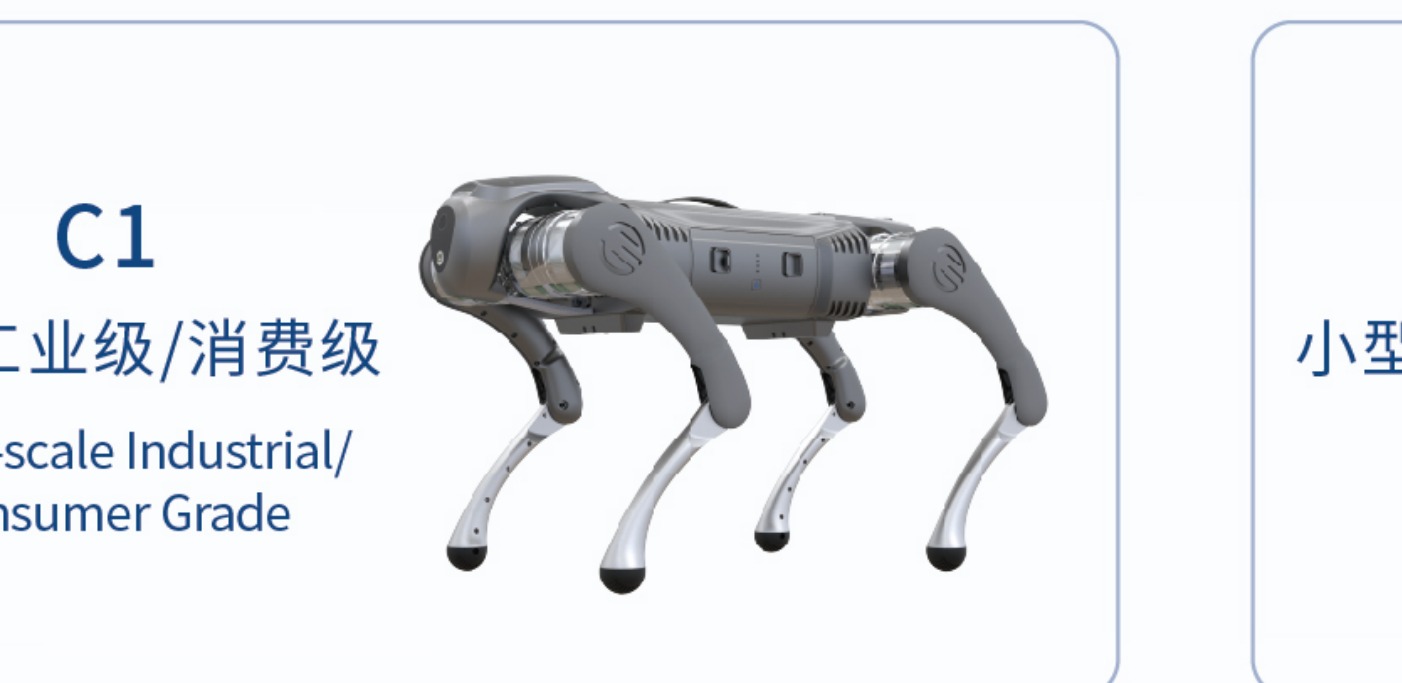

The Galileo C1 is the entry point to the company's bionic quadruped family — 765 mm long and just 22 kg, small enough to be carried to site by one person, and rated small-scale industrial or consumer grade. It walks at up to 3 m/s, climbs slopes of 30 degrees and continuous 20 cm steps, and covers more than 10 km on a 20 Ah pack, running three hours under payload or five unloaded. It carries 12 kg as a working payload with a 15 kg maximum. What makes the family coherent is that the C1 shares its whole support stack with its larger siblings: the same IP67 sealing, the same -20 to 55 degree operating range, the same domestic ARM compute, and the same expandable payload interfaces that take gimbals, radar, robotic arms or cargo. LiDAR is optional here rather than standard, which is the main sensing difference from the medium and large grades.
주요 기능
- Smallest and lightest machine in the Galileo bionic quadruped family at 22 kg
- 765 x 410 x 475 mm standing at 22 kg
- Motion speed adjustable from 0 to 3.0 m/s
- 12 kg rated payload capacity with a 15 kg maximum load
- Maximum climbable slope of 30 degrees or more
- continuous steps of 20 cm or more
- 20 Ah (960 Wh), 48 V battery giving 3 hours under payload and 5 hours unloaded, with a range of >10 km
- LiDAR: Optional
- Domestic ARM-based low-power high-performance CPU with 8 cores and 8 threads, 8 GB RAM and 64 GB solid-state storage
- WiFi 6 wireless networking with optional 4G and 5G
- communication bandwidth of 6 Mbps or less
- 1920 x 1080 camera at 25 fps, 2 megapixels
- IP67 protection
- Operating temperature from -20 to 55 degrees Celsius
- Removable battery supporting automatic charging at up to 960 W
- Charger input 100-240 V
- Optional voice interaction
- supplied with a remote-control handle
- Customisable payloads including dual-spectrum gimbals, 4G/5G and BeiDou/GPS/RTK modules, robotic arms, compact radar, cargo carriers, demolition tools and explosion-proof equipment
- Low-power standby mode of 365 days or more with remote wake-up support
- Lithium battery with autonomous charging supported
- Secondary development supported
기술 사양
검증됨| 물리 사양 | |
| 무게 | 22 kg |
|---|---|
| 크기 | L 765 mm × W 410 mm × H 475 mm |
| 가반하중 | 12 kg |
| 이동성 | |
| 이동 방식 | 사족보행 |
| 속도 | 10.8 km/h |
| 작동 환경 | All-weather industrial and outdoor use; IP67; -20 to 55 degrees Celsius, -20°C to 55°C |
| 액추에이터 | Bionic quadruped with articulated legs |
| 전원 | |
| 배터리 지속 시간 | 3-5 h |
| 센싱 & 컴퓨팅 | |
| 센서 | LiDAR, 1920x1080 camera at 25 fps |
| 연결성 | WiFi 6, optional 4G and 5G; Ethernet, USB and RS485 external interfaces |
| 소프트웨어 / AI | Autonomous navigation and obstacle avoidance with multi-sensor fusion |
기술 사양
검증됨| 물리 사양 | |
| 무게 | 22 kg |
|---|---|
| 크기 | L 765 mm × W 410 mm × H 475 mm |
| 가반하중 | 12 kg |
| 이동성 | |
| 이동 방식 | 사족보행 |
| 속도 | 10.8 km/h |
| 작동 환경 | All-weather industrial and outdoor use; IP67; -20 to 55 degrees Celsius, -20°C to 55°C |
| 액추에이터 | Bionic quadruped with articulated legs |
| 전원 | |
| 배터리 지속 시간 | 3-5 h |
| 센싱 & 컴퓨팅 | |
| 센서 | LiDAR, 1920x1080 camera at 25 fps |
| 연결성 | WiFi 6, optional 4G and 5G; Ethernet, USB and RS485 external interfaces |
| 소프트웨어 / AI | Autonomous navigation and obstacle avoidance with multi-sensor fusion |
이미지
martti
martti이미지 기여
동영상
로봇 포럼
포럼 불러오는 중...
평가
자주 묻는 질문
What is the Galileo C1?
The Galileo C1 is the entry point to the company's bionic quadruped family — 765 mm long and just 22 kg, small enough to be carried to site by one person, and rated small-scale industrial or consumer grade.
Who makes the Galileo C1?
The Galileo C1 is made by Galileo Technology, a robotics company based in China.
How much does the Galileo C1 cost?
Galileo Technology has not publicly announced pricing for the Galileo C1. You can enquire through RobotAIGeek for current pricing.
What is the Galileo C1 used for?
The Galileo C1 is designed for 점검, 모니터링, 운반, and industrial inspection in toxic, hazardous and high-risk workplaces. It is used in 에너지, 연구, 제조, and 보안·순찰 settings.
What is the payload capacity of the Galileo C1?
The Galileo C1 has a payload capacity of 12 kg.
How much does the Galileo C1 weigh?
The Galileo C1 weighs 22 kg.
How fast is the Galileo C1?
The Galileo C1 can move at speeds of up to 10.8 km/h.
What is the battery life of the Galileo C1?
The Galileo C1 runs for 3-5 h on a charge.
