설명
FP 20은(는) AFORMIC의 Industrial-Robot입니다. 사내 물류, 리프팅, 자재 취급 용도로 설계되었습니다. 주요 수치: 884 kg, 가반 하중 1000 kg.

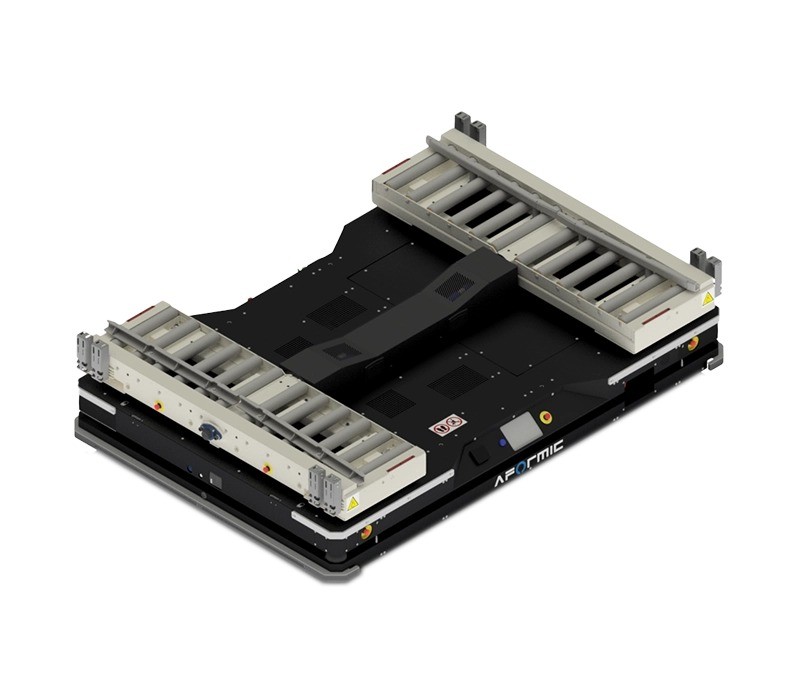

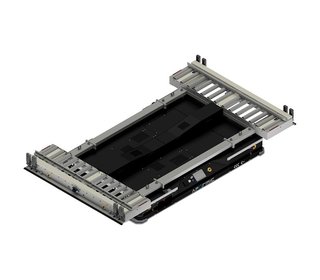

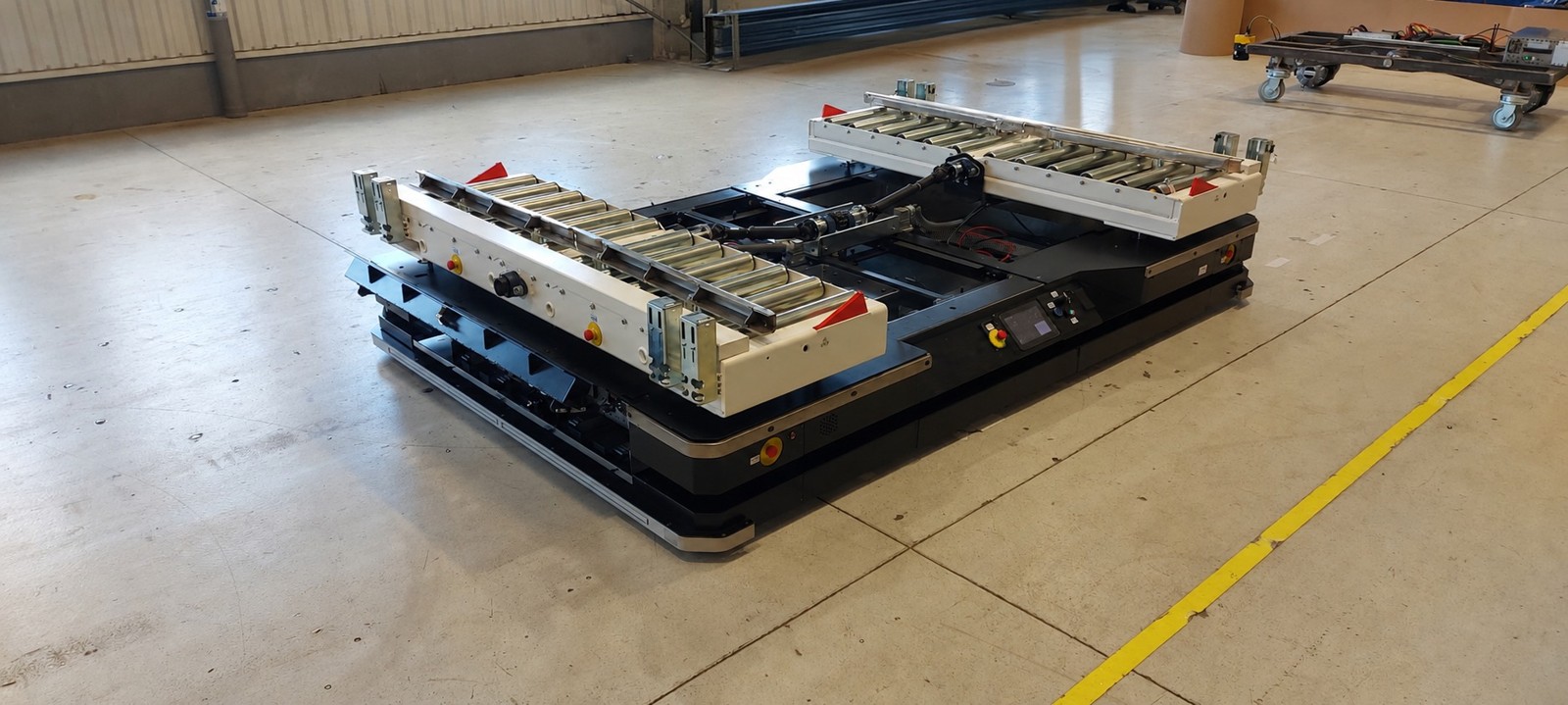

FP 20 is AFORMIC's shuttle-system AMR, a mobile base with a roller-conveyor module adapted to a dedicated pallet, so loads transfer automatically to and from conveyors and stations. It measures 1916 x 1452 x 500 mm, weighs 884 kg, carries 1000 kg and travels at up to 1.5 m/s with +/-10 mm positioning accuracy. Drive: differential (2 x 1.2 kW). It navigates by lidar SLAM using safety laser scanners with a 360-degree field of view, and is managed by AFORMIC's QURSOR fleet platform, which handles task allocation, path planning, traffic and KANBAN workflows. Power comes from a Li-Ion 120 Ah, 48 V battery.
주요 기능
- Payload: 1000 kg (2,200 lb)
- Dimensions (LxWxH): 1916 x 1452 x 500 mm (75.4 × 57.2 × 19.7 in)
- No lift (roller module)
- Weight: 884 kg (1,949 lb)
- Max speed: 1.5 m/s (4.9 ft/s)
- Drive: differential
- drive power 2 x 1.2 kW
- Positioning accuracy +/- 1.0 cm (0.4 in)
- Safety: Laser scanner field of view: 360° Sick Micro Scanners: 2 units Emergency push buttons: 6 units Blue spot lamp: 2 units Front and rear safety bumpers
- Battery: Li-Ion 120 Ah, 48 V
- Lidar SLAM navigation
- no floor tape, wires or markers
- Managed by the QURSOR fleet management platform
기술 사양
검증됨| 물리 사양 | |
| 무게 | 884 kg |
|---|---|
| 크기 | L 1.92 m × W 1.45 m × H 500 mm |
| 가반하중 | 1000 kg |
| 반복 정밀도 | ±10 mm |
| 이동성 | |
| 이동 방식 | 바퀴형 |
| 속도 | 5.4 km/h |
| 작동 환경 | Indoor factories and warehouses |
| 액추에이터 | differential (2 x 1.2 kW) |
| 전원 | |
| 배터리 지속 시간 | Li-Ion 120 Ah, 48 V |
| 센싱 & 컴퓨팅 | |
| 센서 | SICK safety laser scanners (360-degree field), lidar SLAM navigation, safety bumpers |
| 연결성 | Wireless link to QURSOR fleet manager |
| 소프트웨어 / AI | AFORMIC QURSOR fleet management |
로봇 포럼
포럼 불러오는 중...
기술 사양
검증됨| 물리 사양 | |
| 무게 | 884 kg |
|---|---|
| 크기 | L 1.92 m × W 1.45 m × H 500 mm |
| 가반하중 | 1000 kg |
| 반복 정밀도 | ±10 mm |
| 이동성 | |
| 이동 방식 | 바퀴형 |
| 속도 | 5.4 km/h |
| 작동 환경 | Indoor factories and warehouses |
| 액추에이터 | differential (2 x 1.2 kW) |
| 전원 | |
| 배터리 지속 시간 | Li-Ion 120 Ah, 48 V |
| 센싱 & 컴퓨팅 | |
| 센서 | SICK safety laser scanners (360-degree field), lidar SLAM navigation, safety bumpers |
| 연결성 | Wireless link to QURSOR fleet manager |
| 소프트웨어 / AI | AFORMIC QURSOR fleet management |
이미지
martti
martti
martti이미지 기여
동영상
로봇 포럼
포럼 불러오는 중...
평가
자주 묻는 질문
What is the FP 20?
FP 20 is AFORMIC's shuttle-system AMR, a mobile base with a roller-conveyor module adapted to a dedicated pallet, so loads transfer automatically to and from conveyors and stations. It measures 1916 x 1452 x 500 mm, weighs 884 kg, carries 1000 kg and travels at up to 1.5 m/s with +/-10 mm positioning accuracy.
Who makes the FP 20?
The FP 20 is made by AFORMIC, a robotics company based in Poland.
How much does the FP 20 cost?
AFORMIC has not publicly announced pricing for the FP 20. You can enquire through RobotAIGeek for current pricing.
What is the FP 20 used for?
The FP 20 is designed for 사내 물류, 리프팅, 자재 취급, and 운반. It is used in 자동차, 창고·물류, and 제조 settings.
What is the payload capacity of the FP 20?
The FP 20 has a payload capacity of 1,000 kg.
How much does the FP 20 weigh?
The FP 20 weighs 884 kg.
How fast is the FP 20?
The FP 20 can move at speeds of up to 5.4 km/h.
