Ruyi 1.0 is EULON's powered ankle orthosis for people who cannot lift the front of the foot — foot drop and foot inversion after stroke or nerve injury. A gait-recognition algorithm works out when in the stride dorsiflexion is needed and drives the ankle through it, so the toes clear the ground instead of catching. The device weighs about 2 kg, carries a 3,350 mAh battery and produces up to 200 N of assistive force, working through a dorsiflexion range of 25 degrees and a plantarflexion range of 35 degrees, each to a tolerance of 2.5 degrees. EULON's emphasis is on it needing no training: the intelligent control system means the wearer can use it straight after start-up. Multi-type sensors fuse into a real-time picture of the gait, the assistance strength and timing are adjustable to the wearer's actual condition, and the visual data interface plots gait curves before and after assistance so a therapist can see what the training changed.
주요 기능
- Gait-recognition algorithm times dorsiflexion assistance within the stride

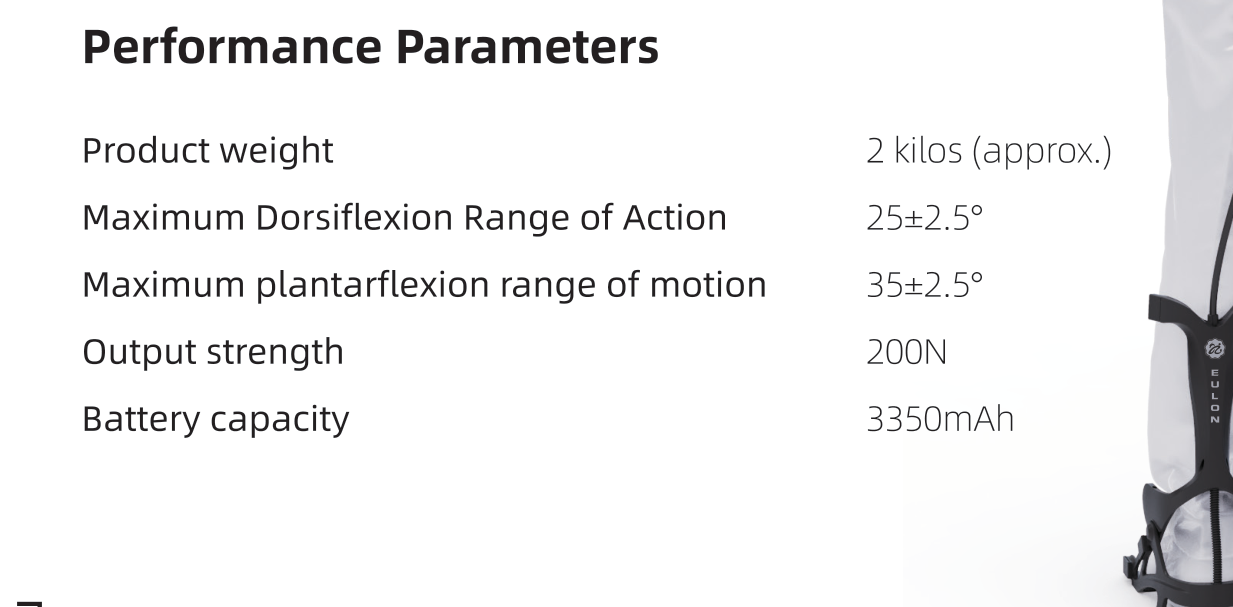

- Product weight approximately 2 kg
- Maximum dorsiflexion range of action 25 degrees (tolerance 2.5 degrees)
- Maximum plantarflexion range of motion 35 degrees (tolerance 2.5 degrees)
- Output strength 200 N
- Battery capacity 3,350 mAh

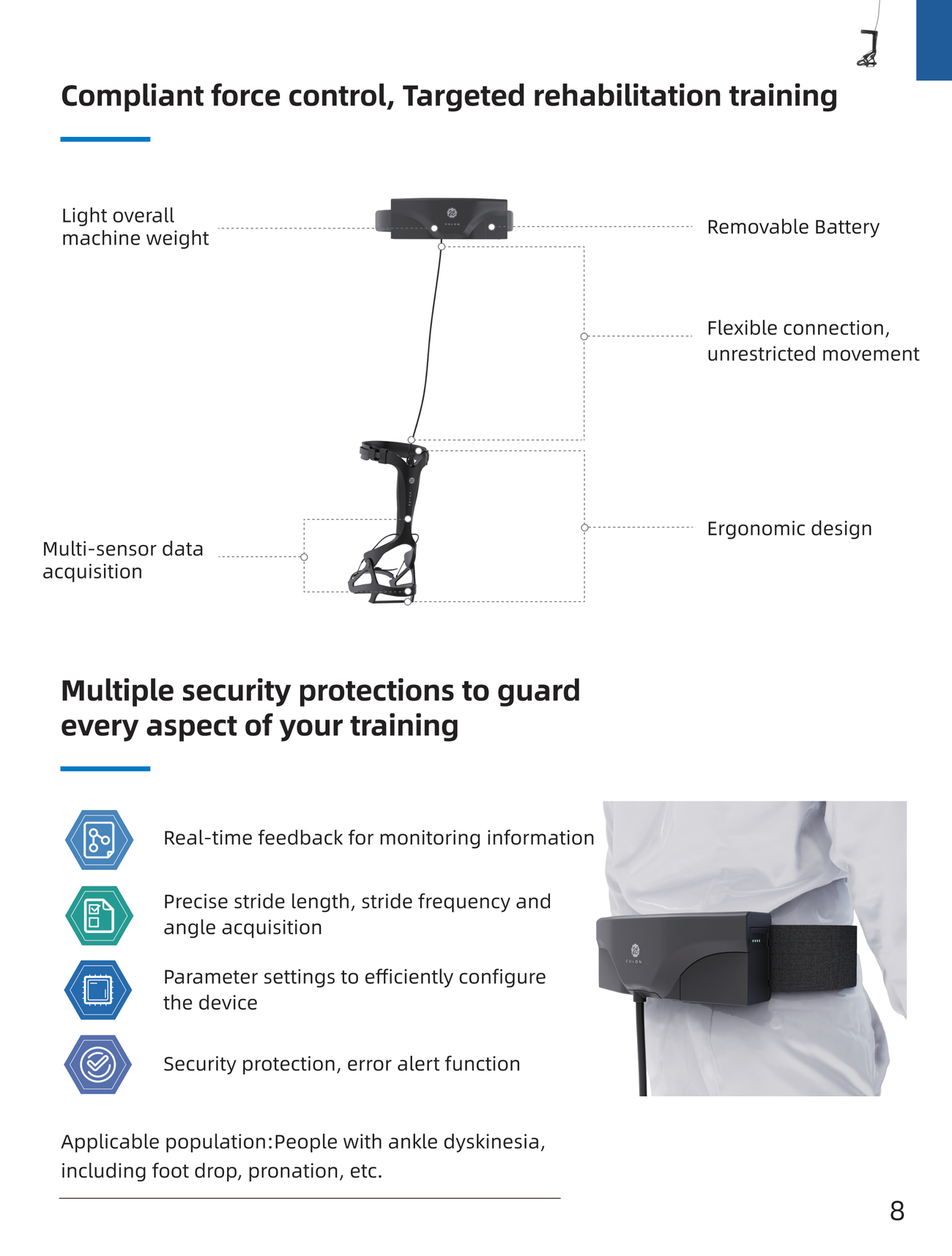

- Multi-type sensors with data fusion for real-time gait recognition
- Adjustable assistance strength and assistive timing per wearer
- Usable without any learning after start-up
- Visual data interface with before-and-after gait-curve comparison

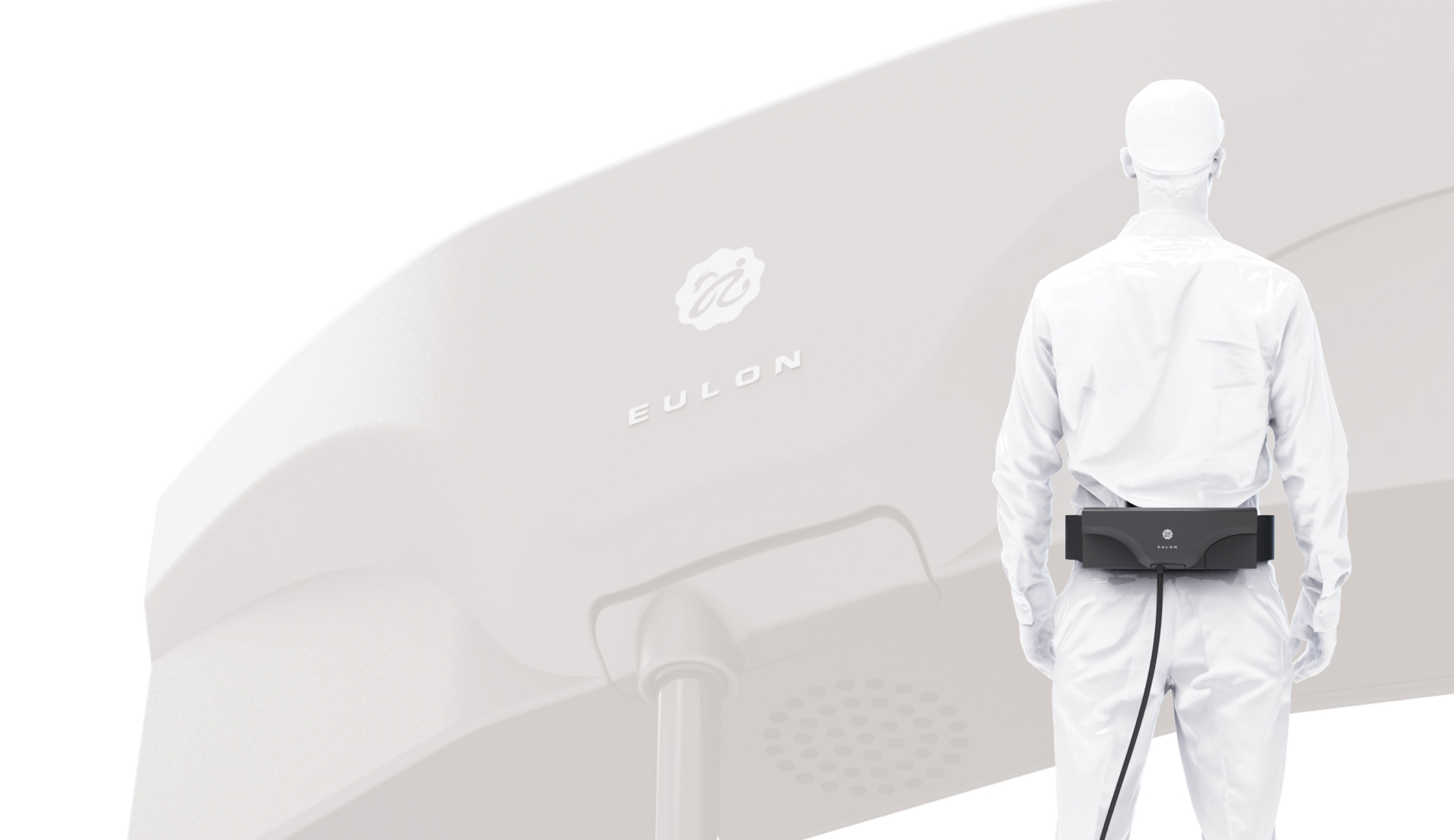

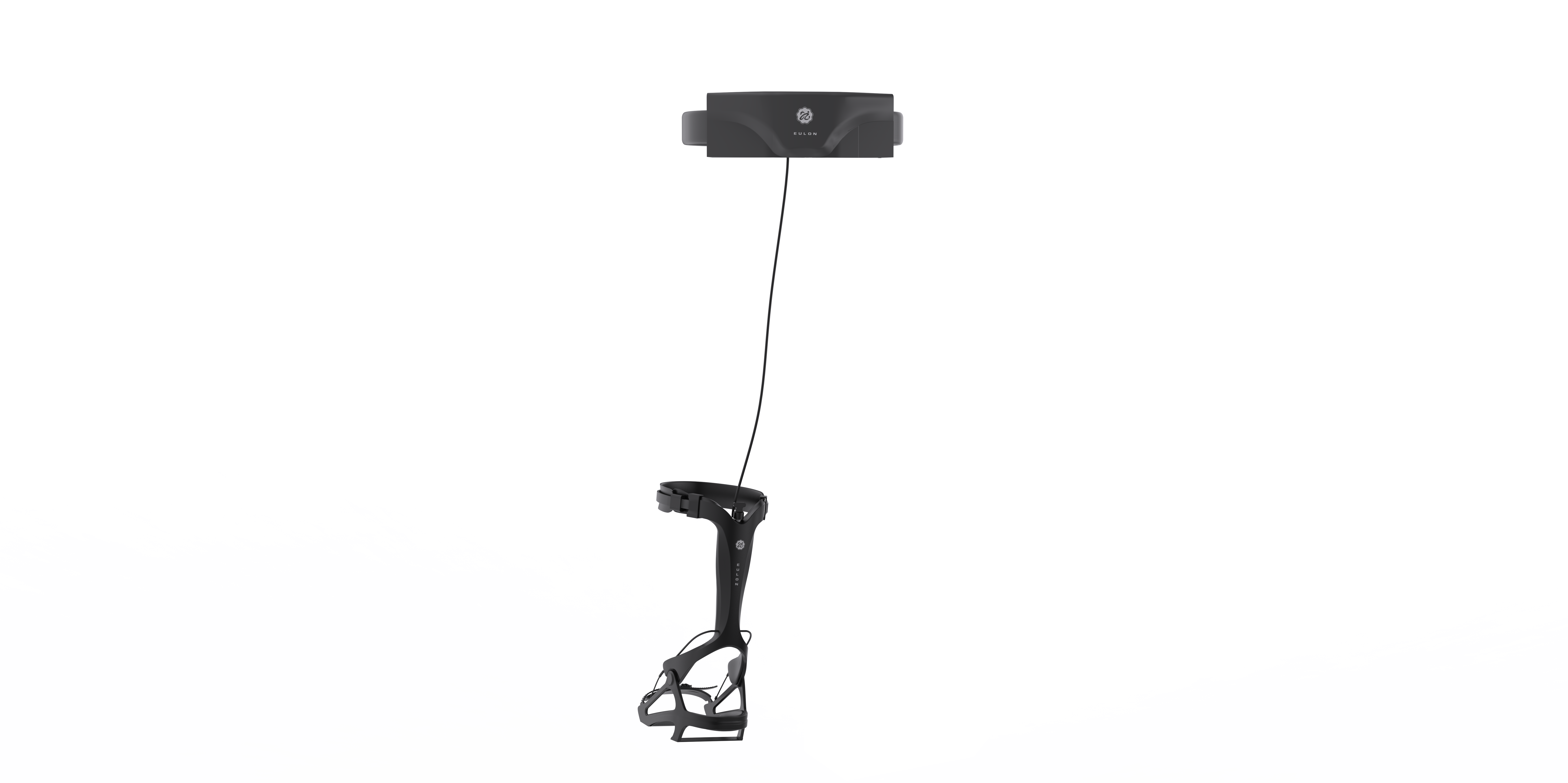

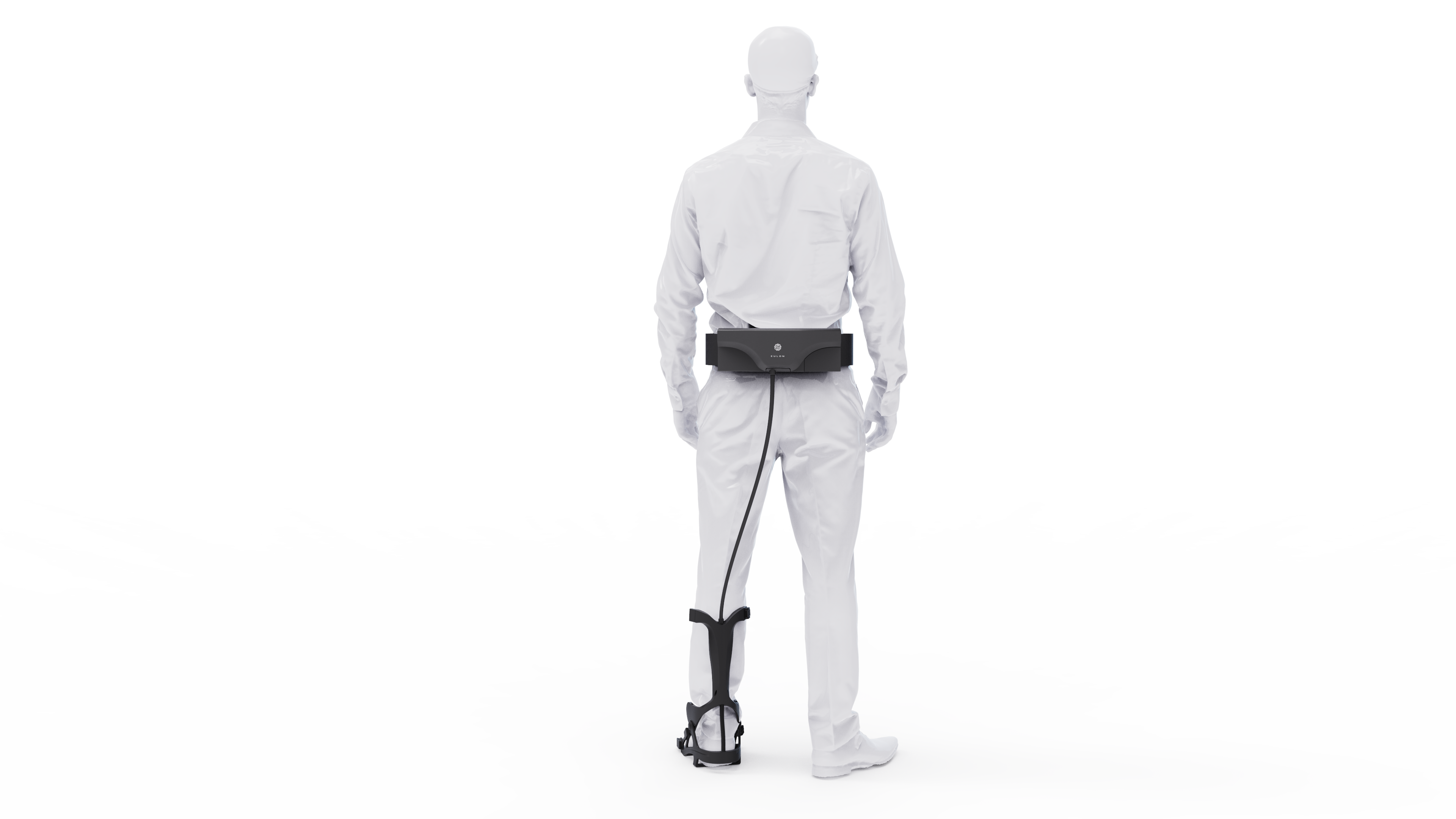

- Waist-worn control and battery pack with a cable to the ankle brace
- Target population: ankle joint movement dysfunction such as foot drop and foot inversion
기술 사양
검증됨| 물리 사양 | |
| 무게 | 2 kg |
|---|---|
| 이동성 | |
| 이동 방식 | 기타 |
| 조작 능력 | 낮음 |
| 작동 환경 | Clinical rehabilitation and everyday walking for wearers with ankle dysfunction |
| 액추에이터 | Powered ankle brace driven from a waist-mounted pack, 200 N assistive output over 25 degrees dorsiflexion and 35 degrees plantarflexion |
| 센싱 & 컴퓨팅 | |
| 센서 | multi-type gait sensors |
| 소프트웨어 / AI | Gait-recognition and data-fusion control with adjustable assistance strategies and a visual gait-analysis interface |
기술 사양
검증됨| 물리 사양 | |
| 무게 | 2 kg |
|---|---|
| 이동성 | |
| 이동 방식 | 기타 |
| 조작 능력 | 낮음 |
| 작동 환경 | Clinical rehabilitation and everyday walking for wearers with ankle dysfunction |
| 액추에이터 | Powered ankle brace driven from a waist-mounted pack, 200 N assistive output over 25 degrees dorsiflexion and 35 degrees plantarflexion |
| 센싱 & 컴퓨팅 | |
| 센서 | multi-type gait sensors |
| 소프트웨어 / AI | Gait-recognition and data-fusion control with adjustable assistance strategies and a visual gait-analysis interface |
이미지
martti
martti
martti
martti
martti
martti
martti이미지 기여
동영상
로봇 포럼
포럼 불러오는 중...
평가
자주 묻는 질문
What is the EULON Ruyi 1.0?
Ruyi 1.0 is EULON's powered ankle orthosis for people who cannot lift the front of the foot — foot drop and foot inversion after stroke or nerve injury. A gait-recognition algorithm works out when in the stride dorsiflexion is needed and drives the ankle through it, so the toes clear the ground instead of catching.
Who makes the EULON Ruyi 1.0?
The EULON Ruyi 1.0 is made by Changsha Eulon Robot 优龙机器人, a robotics company based in China.
How much does the EULON Ruyi 1.0 cost?
Changsha Eulon Robot 优龙机器人 has not publicly announced pricing for the EULON Ruyi 1.0. You can enquire through RobotAIGeek for current pricing.
What is the EULON Ruyi 1.0 used for?
The EULON Ruyi 1.0 is designed for 보조, 재활, and 도우미. It is used in 소비자 and 헬스케어 settings.
How much does the EULON Ruyi 1.0 weigh?
The EULON Ruyi 1.0 weighs 2 kg.
