설명
CS612은(는) Elite Robots의 Collaborative-Robot입니다. 조립, 디스펜싱, 머신 텐딩 용도로 설계되었습니다. 주요 수치: 가반 하중 12 kg, 도달 범위 1304 mm, 2022년 출시.

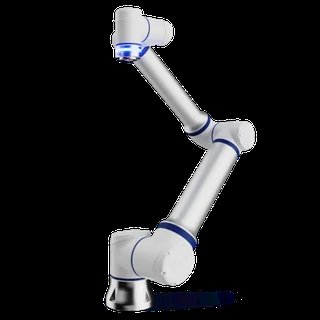

Six-axis cobot arm handling 12 kg at a 1304 mm reach with ±0.05 mm repeatability, aimed at assembly, pick-and-place, and welding cells.
주요 기능
- 12 kg payload with a 1304 mm working radius, ±0.05 mm repeatability and 3.4 m/s TCP speed. 31 safety functions (PL d Cat. 3 for SF01-SF30, PL b Cat. 1 for SF31)
- certified to UL, CE and KCs with ISO 13849, ISO 10218 and ISO/TS 15066
- ISO 14644 cleanroom class 5, RoHS and SEMI-S2 rated
- graphical programming with an expandable UI supporting custom plugins and application wizards
- multi-protocol compatibility with PNP/NPN switch mode
- high ingress protection.
기술 사양
검증됨| 물리 사양 | |
| 가반하중 | 12 kg |
|---|---|
| 도달거리 | 1.3 m |
| 반복 정밀도 | ±0.05 mm |
| 이동성 | |
| 이동 방식 | 고정형 |
| 조작 능력 | 높음 |
동영상

Elite Robots CS612 Fronius welding Cobot - Teil 3

Elite Robots CS612 CNC machine tending with OnRobot dual quick change gripper

Elite Robots CS612 cobot performing CNC loading and unloading and pick and pack (DPLOY programming)
로봇 포럼
포럼 불러오는 중...
기술 사양
검증됨| 물리 사양 | |
| 가반하중 | 12 kg |
|---|---|
| 도달거리 | 1.3 m |
| 반복 정밀도 | ±0.05 mm |
| 이동성 | |
| 이동 방식 | 고정형 |
| 조작 능력 | 높음 |
이미지


이미지 기여
동영상

Elite Robots CS612 Fronius welding Cobot - Teil 3

Elite Robots CS612 CNC machine tending with OnRobot dual quick change gripper

Elite Robots CS612 cobot performing CNC loading and unloading and pick and pack (DPLOY programming)
로봇 포럼
포럼 불러오는 중...
평가
자주 묻는 질문
What is the CS612?
Six-axis cobot arm handling 12 kg at a 1304 mm reach with ±0.05 mm repeatability, aimed at assembly, pick-and-place, and welding cells.
Who makes the CS612?
The CS612 is made by Elite Robots, a robotics company based in China.
How much does the CS612 cost?
Elite Robots has not publicly announced pricing for the CS612. You can enquire through RobotAIGeek for current pricing.
What is the CS612 used for?
The CS612 is designed for 조립, 디스펜싱, 머신 텐딩, and 자재 취급. It is used in 자동차, 전자, 에너지, and 창고·물류 settings.
What is the payload capacity of the CS612?
The CS612 has a payload capacity of 12 kg and a reach of 1.3 m.
When was the CS612 released?
The CS612 was released in 2022.
유사 로봇과 비교
이 로봇이 가장 가까운 대안들과 어떻게 비교되는지 확인하세요
- CS612 vs Elfin E10-L
- CS612 vs Elfin E10
- CS612 vs Elfin E12
- CS612 vs Elfin E15
- CS612 vs Neuromeka Indy7 V3
