설명

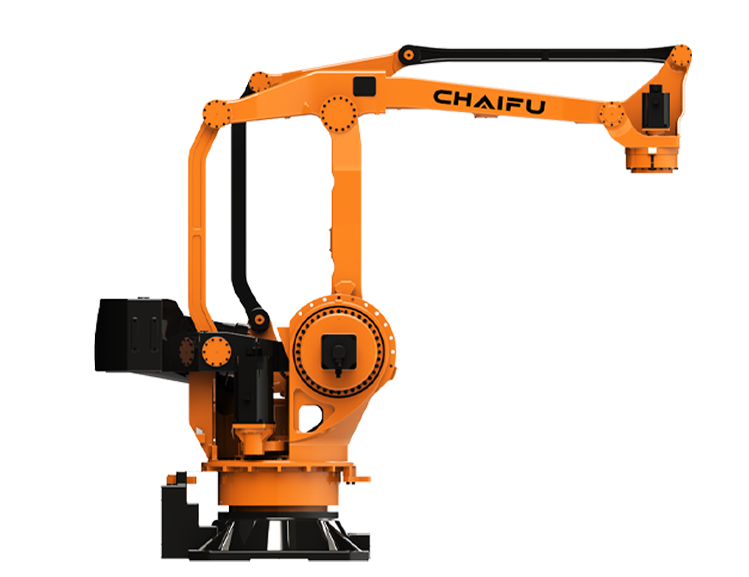

The SF2000-C4000 PA is a 2000 kg heavy-duty palletising robot in CHAIFU's ALPHTIC PA series, a vertically articulated industrial robot with 4 axes and a maximum reach of 3966 mm. Repeatability is ±0.8mm and it is driven by ac servo motors, with IP 65 (The wrist is protected to IP 67) protection. The 4-axis palletising build carries up to 3,000 kg with LIKEPRECISION RV reducers; base axes are IP65 and wrist axes IP67. CHAIFU builds the ALPHTIC PA series in Shanghai with its own LIKEPRECISION RV precision gearboxes and servo motors, and positions it for heavy palletising and bulk material handling.
주요 기능
- ALPHTIC PA series heavy-duty palletising robot
- Payload 2000 kg
- Maximum reach 3966 mm
- 4 axes, vertically articulated
- Repeatability ±0.8mm
- Drive: AC Servo Motor
- Protection IP 65 (The wrist is protected to IP 67)
- LIKEPRECISION RV precision gearbox and CHAIFU servo motors
기술 사양
검증됨| 물리 사양 | |
| 가반하중 | 2000 kg |
|---|---|
| 도달거리 | 3.97 m |
| 이동성 | |
| 이동 방식 | 고정형 |
| 자유도 | 4 |
| 조작 능력 | 높음 |
| 작동 환경 | Industrial production environments; IP 65 (The wrist is protected to IP 67). |
| 액추에이터 | AC Servo Motor drive with LIKEPRECISION RV precision gearboxes |
기술 사양
검증됨| 물리 사양 | |
| 가반하중 | 2000 kg |
|---|---|
| 도달거리 | 3.97 m |
| 이동성 | |
| 이동 방식 | 고정형 |
| 자유도 | 4 |
| 조작 능력 | 높음 |
| 작동 환경 | Industrial production environments; IP 65 (The wrist is protected to IP 67). |
| 액추에이터 | AC Servo Motor drive with LIKEPRECISION RV precision gearboxes |
이미지
이미지 기여
동영상
로봇 포럼
포럼 불러오는 중...
평가
자주 묻는 질문
What is the CHAIFU SF2000-C4000 PA?
The SF2000-C4000 PA is a 2000 kg heavy-duty palletising robot in CHAIFU's ALPHTIC PA series, a vertically articulated industrial robot with 4 axes and a maximum reach of 3966 mm. Repeatability is ±0.8mm and it is driven by ac servo motors, with IP 65 (The wrist is protected to IP 67) protection.
Who makes the CHAIFU SF2000-C4000 PA?
The CHAIFU SF2000-C4000 PA is made by Chaifu Robot, a robotics company based in China.
How much does the CHAIFU SF2000-C4000 PA cost?
Chaifu Robot has not publicly announced pricing for the CHAIFU SF2000-C4000 PA. You can enquire through RobotAIGeek for current pricing.
What is the CHAIFU SF2000-C4000 PA used for?
The CHAIFU SF2000-C4000 PA is designed for 자재 취급 and 팔레타이징. It is used in 창고·물류 and 제조 settings.
What is the payload capacity of the CHAIFU SF2000-C4000 PA?
The CHAIFU SF2000-C4000 PA has a payload capacity of 2,000 kg and a reach of 3.97 m.
How many degrees of freedom does the CHAIFU SF2000-C4000 PA have?
The CHAIFU SF2000-C4000 PA has 4 degrees of freedom.
