CHAIFU SF1600-C4600

Chaifu Robot
Industrial Robot ArmChinaChina출시됨

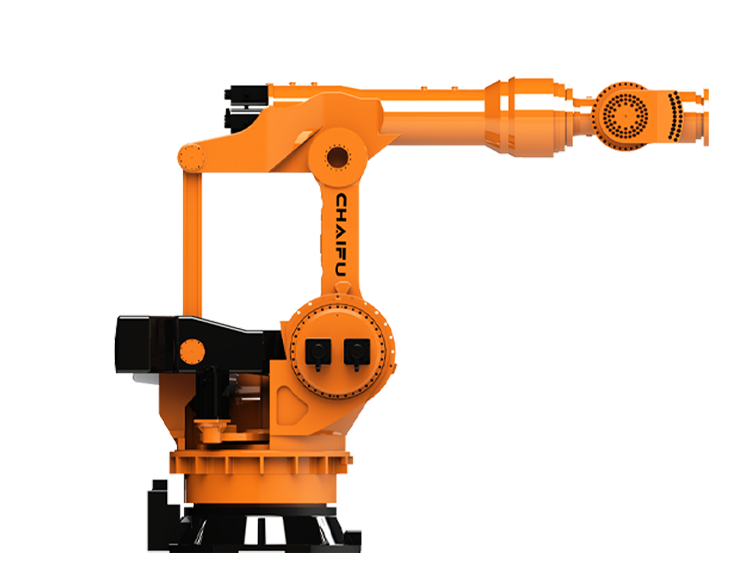

CHAIFU SF1600-C4600
비교
출처:
chaifurobot.com
산업:
자동차제조
용도:
머신 텐딩자재 취급팔레타이징
가격:
미공개

설명

The SF1600-C4600 is a 1600 kg heavy-duty robot in CHAIFU's ALPHTIC series, a vertically articulated industrial robot with 6 axes and a maximum reach of 4600 mm. Repeatability is ±0.3mm and it is driven by ac servo motors, with IP 65 (The wrist is protected to IP 67) protection. Powerful motors and gearboxes with LIKEPRECISION RV reducers carry loads up to 3,000 kg; base axes are IP65 and wrist axes IP67 for all-day operation. CHAIFU builds the ALPHTIC series in Shanghai with its own LIKEPRECISION RV precision gearboxes and servo motors, and positions it for heavy handling, machine tending and structural work in demanding industries.

주요 기능

  • ALPHTIC series heavy-duty robot
  • Payload 1600 kg
  • Maximum reach 4600 mm
  • 6 axes, vertically articulated
  • Repeatability ±0.3mm
  • Drive: AC Servo Motor
  • Protection IP 65 (The wrist is protected to IP 67)
  • LIKEPRECISION RV precision gearbox and CHAIFU servo motors

기술 사양

검증됨
물리 사양
가반하중1600 kg
도달거리4.6 m
이동성
이동 방식고정형
자유도6
조작 능력높음
작동 환경Industrial production environments; IP 65 (The wrist is protected to IP 67).
액추에이터AC Servo Motor drive with LIKEPRECISION RV precision gearboxes
제조사 출처서드파티 출처출처 없음출처 상태는 이 로봇에 등록된 출처를 기준으로 합니다.

자주 묻는 질문

What is the CHAIFU SF1600-C4600?

The SF1600-C4600 is a 1600 kg heavy-duty robot in CHAIFU's ALPHTIC series, a vertically articulated industrial robot with 6 axes and a maximum reach of 4600 mm. Repeatability is ±0.3mm and it is driven by ac servo motors, with IP 65 (The wrist is protected to IP 67) protection.

Who makes the CHAIFU SF1600-C4600?

The CHAIFU SF1600-C4600 is made by Chaifu Robot, a robotics company based in China.

How much does the CHAIFU SF1600-C4600 cost?

Chaifu Robot has not publicly announced pricing for the CHAIFU SF1600-C4600. You can enquire through RobotAIGeek for current pricing.

What is the CHAIFU SF1600-C4600 used for?

The CHAIFU SF1600-C4600 is designed for 머신 텐딩, 자재 취급, and 팔레타이징. It is used in 자동차 and 제조 settings.

What is the payload capacity of the CHAIFU SF1600-C4600?

The CHAIFU SF1600-C4600 has a payload capacity of 1,600 kg and a reach of 4.6 m.

How many degrees of freedom does the CHAIFU SF1600-C4600 have?

The CHAIFU SF1600-C4600 has 6 degrees of freedom.
