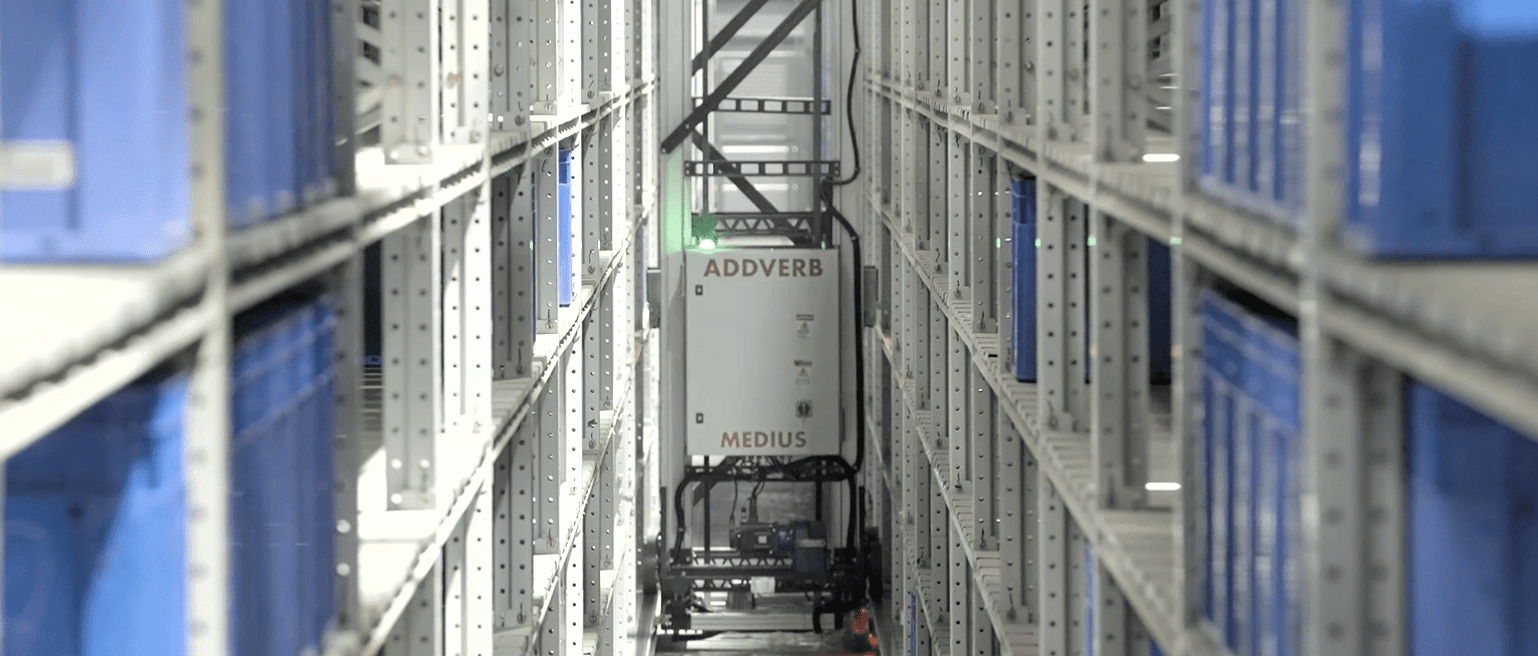

Medius is Addverb Technologies' multi-level shuttle, a dynamic system for automated storage and retrieval of cartons and totes across different levels. A single shuttle reaches seven storage levels within one aisle rather than being fixed to a level, which is what lets the system be built with fewer vehicles than a one-shuttle-per-level design. It carries up to 30 kg at speeds to 3.1 m/s and delivers 103 totes an hour on a 30-metre track. Addverb rates space utilisation at 36 totes per square metre, supports double-deep storage and builds to 20 metres high. The vehicle measures 1,568 x 934 x 3,800 mm and weighs 470 kg. Power is 220 V single-phase AC and the operating range is +5 to +40 C, which places it in ambient rather than cold storage. It suits high-throughput tote handling - e-commerce and parts distribution, where the unit moved is a tote rather than a pallet.
주요 기능
- Multi-level shuttle for cartons and totes
- Reaches 7 storage levels within a single aisle
- Maximum payload 30 kg
- Speed up to 3.1 m/s
- Throughput 103 totes/hour on a 30 m track
- Space utilisation 36 totes per square metre
- Double-deep storage
- builds up to 20 m high
- 1,568 x 934 x 3,800 mm
- self weight 470 kg
- 220 V single-phase AC
- Operating temperature +5 to +40 C
기술 사양
검증됨| 물리 사양 | |
| 무게 | 470 kg |
|---|---|
| 크기 | L 1.57 m × W 934 mm × H 3.8 m |
| 가반하중 | 30 kg |
| 이동성 | |
| 이동 방식 | 바퀴형 |
| 속도 | 11.2 km/h |
| 작동 환경 | Ambient tote storage up to 20 m high, +5 to +40 C. |
| 센싱 & 컴퓨팅 | |
| 연결성 | Warehouse control system integration |
기술 사양
검증됨| 물리 사양 | |
| 무게 | 470 kg |
|---|---|
| 크기 | L 1.57 m × W 934 mm × H 3.8 m |
| 가반하중 | 30 kg |
| 이동성 | |
| 이동 방식 | 바퀴형 |
| 속도 | 11.2 km/h |
| 작동 환경 | Ambient tote storage up to 20 m high, +5 to +40 C. |
| 센싱 & 컴퓨팅 | |
| 연결성 | Warehouse control system integration |
이미지
martti
martti
martti
martti
martti이미지 기여
로봇 포럼
포럼 불러오는 중...
평가
자주 묻는 질문
What is the Addverb Medius?
Medius is Addverb Technologies' multi-level shuttle, a dynamic system for automated storage and retrieval of cartons and totes across different levels.
Who makes the Addverb Medius?
The Addverb Medius is made by Addverb Technologies, a robotics company based in India.
How much does the Addverb Medius cost?
Addverb Technologies has not publicly announced pricing for the Addverb Medius. You can enquire through RobotAIGeek for current pricing.
What is the Addverb Medius used for?
The Addverb Medius is designed for 재고 관리, 피킹, and 운반. It is used in 창고·물류 settings.
What is the payload capacity of the Addverb Medius?
The Addverb Medius has a payload capacity of 30 kg.
How much does the Addverb Medius weigh?
The Addverb Medius weighs 470 kg.
How fast is the Addverb Medius?
The Addverb Medius can move at speeds of up to 11.2 km/h.
