Peitian AIR165-2700

Peitian Robot
Industrial-RobotChinaChinaリリース済み
Peitian AIR165-2700
比較
情報源:
cdn.robotaigeek.com
産業:
研究製造
用途:
組立ピック＆プレースLoading and unloadinghandlingpalletisinginjection mouldingweldinggrinding and polishingdispensingpacking
価格:
未発表

説明

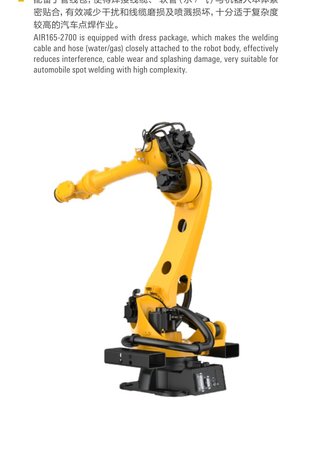

The AIR165-2700 is a large-payload six-axis articulated arm from Peitian's AIR range, carrying 165 kg to a reach of 2700 mm. Peitian quotes position repeatability of ±0.1mm, which is the figure that decides whether an arm of this size can be trusted on close-tolerance work rather than only on gross handling. The manipulator weighs 1200 kg. It is sealed to IP54(Forearm: IP65), and can be mounted Floor. It runs on Peitian's ARC5-280 controller cabinet.

特長

  • Large-payload six-axis industrial robot arm
  • Rated payload 165 kg
  • Maximum reach 2700 mm
  • Manipulator weight 1200 kg
  • Position repeatability ±0.1mm
  • Ingress protection IP54(Forearm: IP65)
  • Mounting: Floor
  • Compatible controller cabinets: ARC5-280
  • Working range Axis 1 rotation -180°/+180°
  • Axis 2 arm -65°/+85°
  • Axis 3 arm -110°/+155°
  • Axis 4 wrist -360°/+360°
  • Axis 5 bend -123°/+123°
  • Axis 6 turn -360°/+360°
  • Rotation rate Axis 1 rotation 125°/s
  • Axis 2 arm 113°/s
  • Axis 3 arm 125°/s
  • Axis 4 wrist 180°/s
  • Axis 5 bend 175°/s
  • Axis 6 turn 280°/s
  • Ambient temperature 0 to 45 degrees Celsius, humidity up to 95% non-condensing, altitude up to 1000 m
  • No corrosive, flammable or explosive gases permitted in the operating environment

技術仕様

本体
重量1200 kg
可搬重量165 kg
リーチ2.7 m
移動性能
移動方式固定型
自由度6
マニピュレーション高
使用環境Industrial indoor use, 0 to 45 degrees Celsius, humidity up to 95% non-condensing, altitude up to 1000 m; no corrosive, flammable or explosive gases
アクチュエーター6-axis large-payload six-axis manipulator, mounted Floor
センシング・演算
ソフトウェア / AIDriven by Peitian ARC5-280 controller cabinets
メーカー情報第三者情報情報源なし情報源のステータスは、このロボットに登録された情報源に基づきます。

よくある質問

What is the Peitian AIR165-2700?

The AIR165-2700 is a large-payload six-axis articulated arm from Peitian's AIR range, carrying 165 kg to a reach of 2700 mm. Peitian quotes position repeatability of ±0.1mm, which is the figure that decides whether an arm of this size can be trusted on close-tolerance work rather than only on gross handling.

Who makes the Peitian AIR165-2700?

The Peitian AIR165-2700 is made by Peitian Robot, a robotics company based in China.

How much does the Peitian AIR165-2700 cost?

Peitian Robot has not publicly announced pricing for the Peitian AIR165-2700. You can enquire through RobotAIGeek for current pricing.

What is the Peitian AIR165-2700 used for?

The Peitian AIR165-2700 is designed for 組立, ピック＆プレース, loading and unloading, and handling. It is used in 研究 and 製造 settings.

What is the payload capacity of the Peitian AIR165-2700?

The Peitian AIR165-2700 has a payload capacity of 165 kg and a reach of 2.7 m.

How much does the Peitian AIR165-2700 weigh?

The Peitian AIR165-2700 weighs 1,200 kg.

How many degrees of freedom does the Peitian AIR165-2700 have?

The Peitian AIR165-2700 has 6 degrees of freedom.
