説明

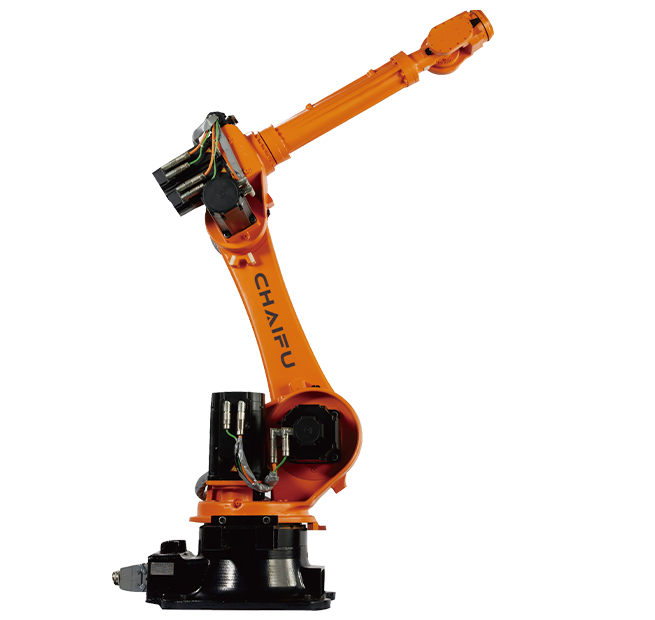

The SF50-K2178 is a 50 kg medium-payload robot in CHAIFU's MIMETIC series, a vertical articulated industrial robot with 6 axes and a maximum reach of 2178 mm. Repeatability is ±0.08mm and it is driven by ac servo motors, with IP 65 (The wrist is protected to IP 67) protection. MIMETIC robots have a rugged construction and powerful motors, and can use vision tracking, force sensors, autonomous learning and CHAIFU's intelligent programs. CHAIFU builds the MIMETIC series in Shanghai with its own LIKEPRECISION RV precision gearboxes and servo motors, and positions it for handling, machine tending, assembly and general production work.
特長
- MIMETIC series medium-payload robot
- Payload 50 kg
- Maximum reach 2178 mm
- 6 axes, vertical articulated
- Repeatability ±0.08mm
- Drive: AC Servo Motor
- Protection IP 65 (The wrist is protected to IP 67)
- LIKEPRECISION RV precision gearbox and CHAIFU servo motors
技術仕様
検証済み| 本体 | |
| 可搬重量 | 50 kg |
|---|---|
| リーチ | 2.18 m |
| 移動性能 | |
| 移動方式 | 固定型 |
| 自由度 | 6 |
| マニピュレーション | 高 |
| 使用環境 | Industrial production environments; IP 65 (The wrist is protected to IP 67). |
| アクチュエーター | AC Servo Motor drive with LIKEPRECISION RV precision gearboxes |
技術仕様
検証済み| 本体 | |
| 可搬重量 | 50 kg |
|---|---|
| リーチ | 2.18 m |
| 移動性能 | |
| 移動方式 | 固定型 |
| 自由度 | 6 |
| マニピュレーション | 高 |
| 使用環境 | Industrial production environments; IP 65 (The wrist is protected to IP 67). |
| アクチュエーター | AC Servo Motor drive with LIKEPRECISION RV precision gearboxes |
画像
投稿画像
動画
ロボットフォーラム
フォーラムを読み込み中...
評価
よくある質問
What is the CHAIFU SF50-K2178?
The SF50-K2178 is a 50 kg medium-payload robot in CHAIFU's MIMETIC series, a vertical articulated industrial robot with 6 axes and a maximum reach of 2178 mm. Repeatability is ±0.08mm and it is driven by ac servo motors, with IP 65 (The wrist is protected to IP 67) protection.
Who makes the CHAIFU SF50-K2178?
The CHAIFU SF50-K2178 is made by Chaifu Robot, a robotics company based in China.
How much does the CHAIFU SF50-K2178 cost?
Chaifu Robot has not publicly announced pricing for the CHAIFU SF50-K2178. You can enquire through RobotAIGeek for current pricing.
What is the CHAIFU SF50-K2178 used for?
The CHAIFU SF50-K2178 is designed for 組立, マシンテンディング, and ピック＆プレース. It is used in 自動車 and 製造 settings.
What is the payload capacity of the CHAIFU SF50-K2178?
The CHAIFU SF50-K2178 has a payload capacity of 50 kg and a reach of 2.18 m.
How many degrees of freedom does the CHAIFU SF50-K2178 have?
The CHAIFU SF50-K2178 has 6 degrees of freedom.
