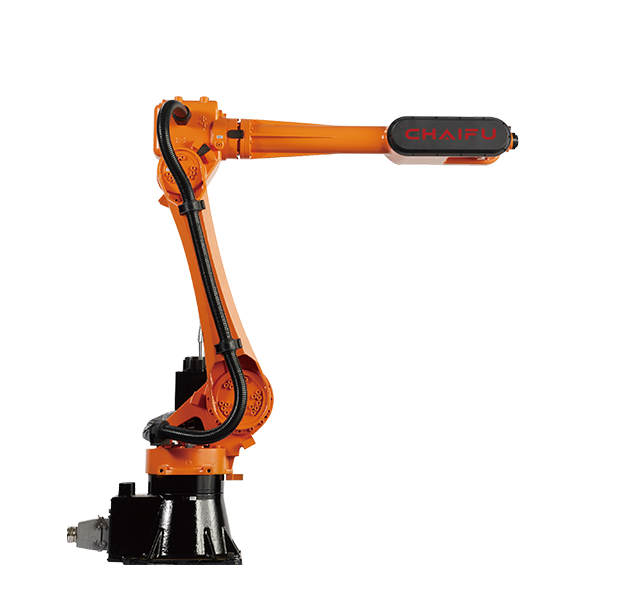

CHAIFU SF10-K2032

Chaifu Robot
Industrial Robot ArmChinaChinaリリース済み
CHAIFU SF10-K2032
比較
情報源:
chaifurobot.com
産業:
エレクトロニクス製造
用途:
組立マシンテンディングピック＆プレース
価格:
未発表

説明

The SF10-K2032 is a 10 kg low-payload robot in CHAIFU's LOTIC series, a vertical articulated industrial robot with 6 axes and a maximum reach of 2032 mm. Repeatability is ±0.05mm and it is driven by ac servo motors, with IP 65 protection. LOTIC uses LIKEPRECISION RV precision gearboxes and CHAIFU servo control, with a compact design (the series' smallest models have a base of only 370 x 370 mm) and repeatable positioning accuracy of 0.05 mm. CHAIFU builds the LOTIC series in Shanghai with its own LIKEPRECISION RV precision gearboxes and servo motors, and positions it for handling, assembly and general automation where a small, cost-effective arm is needed.

特長

  • LOTIC series low-payload robot
  • Payload 10 kg
  • Maximum reach 2032 mm
  • 6 axes, vertical articulated
  • Repeatability ±0.05mm
  • Drive: AC Servo Motor
  • Protection IP 65
  • LIKEPRECISION RV precision gearbox and CHAIFU servo motors

技術仕様

本体
可搬重量10 kg
リーチ2.03 m
移動性能
移動方式固定型
自由度6
マニピュレーション高
使用環境Industrial production environments; IP 65.
アクチュエーターAC Servo Motor drive with LIKEPRECISION RV precision gearboxes
メーカー情報第三者情報情報源なし情報源のステータスは、このロボットに登録された情報源に基づきます。

よくある質問

What is the CHAIFU SF10-K2032?

The SF10-K2032 is a 10 kg low-payload robot in CHAIFU's LOTIC series, a vertical articulated industrial robot with 6 axes and a maximum reach of 2032 mm. Repeatability is ±0.05mm and it is driven by ac servo motors, with IP 65 protection.

Who makes the CHAIFU SF10-K2032?

The CHAIFU SF10-K2032 is made by Chaifu Robot, a robotics company based in China.

How much does the CHAIFU SF10-K2032 cost?

Chaifu Robot has not publicly announced pricing for the CHAIFU SF10-K2032. You can enquire through RobotAIGeek for current pricing.

What is the CHAIFU SF10-K2032 used for?

The CHAIFU SF10-K2032 is designed for 組立, マシンテンディング, and ピック＆プレース. It is used in エレクトロニクス and 製造 settings.

What is the payload capacity of the CHAIFU SF10-K2032?

The CHAIFU SF10-K2032 has a payload capacity of 10 kg and a reach of 2.03 m.

How many degrees of freedom does the CHAIFU SF10-K2032 have?

The CHAIFU SF10-K2032 has 6 degrees of freedom.
