説明

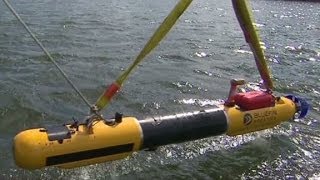

Bluefin-21 is General Dynamics Mission Systems' modular deep-rated unmanned underwater vehicle (UUV). Swappable payload and battery sections support extended missions to 4,500 m, launched from ships of opportunity worldwide.
特長
- Diameter 21 in (53 cm)
- Length 16.2 ft (493 cm)
- Dry weight 1,650 lb (750 kg)
- Depth 14,763 ft (4,500 m)
- Endurance 25 h @ 3 knots
- Speed up to 4.5 knots
- 13.5 kWh Li-polymer (9×1.5 kWh)
- Gimbaled ducted thruster
- INS nav ≤0.1% DT CEP50
- Free-flooded modular payloads (side-scan, SBP, multibeam)
技術仕様
| 本体 | |
| 重量 | 750 kg |
|---|---|
| 寸法 | L 4.93 m × W 530 mm × H 530 mm |
| 移動性能 | |
| 移動方式 | 水中型 |
| 速度 | 8.33 km/h |
| 電源 | |
| バッテリー駆動時間 | 1500 min |
技術仕様
| 本体 | |
| 重量 | 750 kg |
|---|---|
| 寸法 | L 4.93 m × W 530 mm × H 530 mm |
| 移動性能 | |
| 移動方式 | 水中型 |
| 速度 | 8.33 km/h |
| 電源 | |
| バッテリー駆動時間 | 1500 min |
画像
投稿画像
ロボットフォーラム
フォーラムを読み込み中...
評価
よくある質問
What is the Bluefin-21?
Bluefin-21 is General Dynamics Mission Systems' modular deep-rated unmanned underwater vehicle (UUV). Swappable payload and battery sections support extended missions to 4,500 m, launched from ships of opportunity worldwide.
Who makes the Bluefin-21?
The Bluefin-21 is made by Bluefin Robotics (General Dynamics), a robotics company based in United States.
How much does the Bluefin-21 cost?
Bluefin Robotics (General Dynamics) has not publicly announced pricing for the Bluefin-21. You can enquire through RobotAIGeek for current pricing.
What is the Bluefin-21 used for?
The Bluefin-21 is designed for 研究, セキュリティ, 点検, and モニタリング. It is used in エネルギー and 研究 settings.
How much does the Bluefin-21 weigh?
The Bluefin-21 weighs 750 kg.
How fast is the Bluefin-21?
The Bluefin-21 can move at speeds of up to 8.33 km/h.
What is the battery life of the Bluefin-21?
The Bluefin-21 runs for about 1,500 minutes on a charge.
