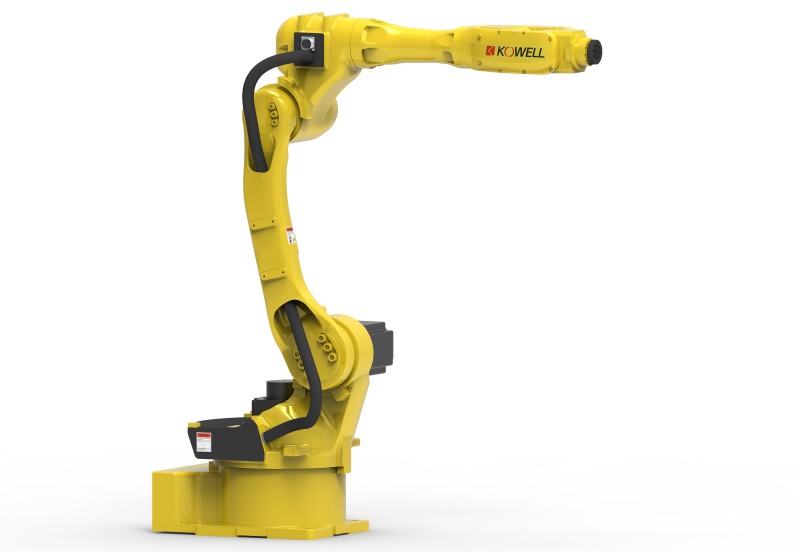

Universal robot KW1012B-1550
BESCHREIBUNG
Universal robot that can be widely used in working environments such as cutting, handling, packaging, laser welding, high-speed loading and unloading, and spraying. Advantages and characteristics: high precision but not low speed; Modular design reduces maintenance time. It can significantly shorten the work cycle and greatly improve production efficiency.
FUNKTIONEN
- Vertically articulated six-axis arm rated 12 kg payload with a 1,550 mm working radius.
- Position repetition accuracy of ±0.05 mm
- body weight 210 kg.
- Power capacity 4.5 kVA
- protection rated equivalent to IP56/IP67.
- Mounts floor standing, bracket standing or inverted (hanging).
- Rated for 0-45 °C and 20-80% RH, non-condensing.
- It is a universal robot that can be widely used in working environments such as cutting, handling, packaging, laser welding, high-speed loading and unloading, and spraying. Advantages and characteristics: high precision but not low speed
- Modular design reduces maintenance time. It can...

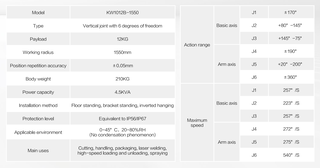

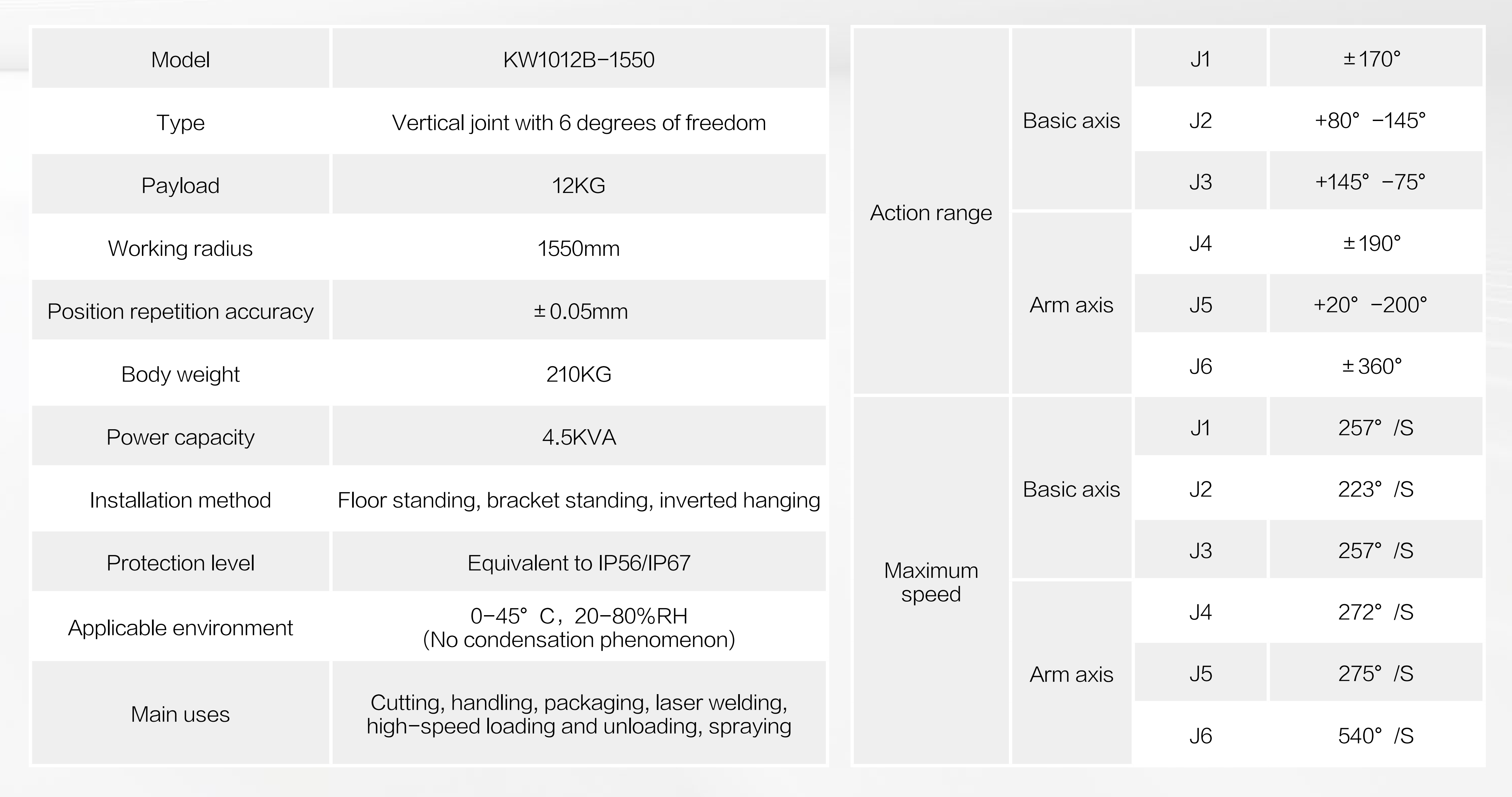

TECHNISCHE DATEN
Verifiziert| Physisch | |
| Gewicht | 210 kg |
|---|---|
| Traglast | 12 kg |
| Reichweite | 1.55 m |
| Wiederholgenauigkeit | ±0.05 mm |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 6 |
| Einsatzumgebung | Indoor industrial; 0-45 °C, 20-80% RH, non-condensing. |
TECHNISCHE DATEN
Verifiziert| Physisch | |
| Gewicht | 210 kg |
|---|---|
| Traglast | 12 kg |
| Reichweite | 1.55 m |
| Wiederholgenauigkeit | ±0.05 mm |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 6 |
| Einsatzumgebung | Indoor industrial; 0-45 °C, 20-80% RH, non-condensing. |
Bilder
martti
martti
marttiBildbeiträge
Videos
ROBOTER-FOREN
Foren werden geladen...
BEWERTUNGEN
HÄUFIG GESTELLTE FRAGEN
What is the Universal robot KW1012B-1550?
Universal robot that can be widely used in working environments such as cutting, handling, packaging, laser welding, high-speed loading and unloading, and spraying. Advantages and characteristics: high precision but not low speed; Modular design reduces maintenance time.
Who makes the Universal robot KW1012B-1550?
The Universal robot KW1012B-1550 is made by Shandong Kewei Robot, a robotics company based in China.
How much does the Universal robot KW1012B-1550 cost?
Shandong Kewei Robot has not publicly announced pricing for the Universal robot KW1012B-1550. You can enquire through RobotAIGeek for current pricing.
What is the Universal robot KW1012B-1550 used for?
The Universal robot KW1012B-1550 is designed for materialhandhabung, verpacken, and schweißen. It is used in elektronik and fertigung settings.
What is the payload capacity of the Universal robot KW1012B-1550?
The Universal robot KW1012B-1550 has a payload capacity of 12 kg and a reach of 1.55 m.
How much does the Universal robot KW1012B-1550 weigh?
The Universal robot KW1012B-1550 weighs 210 kg.
How many degrees of freedom does the Universal robot KW1012B-1550 have?
The Universal robot KW1012B-1550 has 6 degrees of freedom.
