KW1015B-1700

Shandong Kewei Robot
Industrial-RobotChinaChinaVeröffentlicht
KW1015B-1700
Vergleichen
Quellen:
keweirobot.com
Branchen:
Lager & LogistikFertigung
Anwendungen:
MaterialhandhabungPalettieren
Preis:
Nicht angekündigt

BESCHREIBUNG

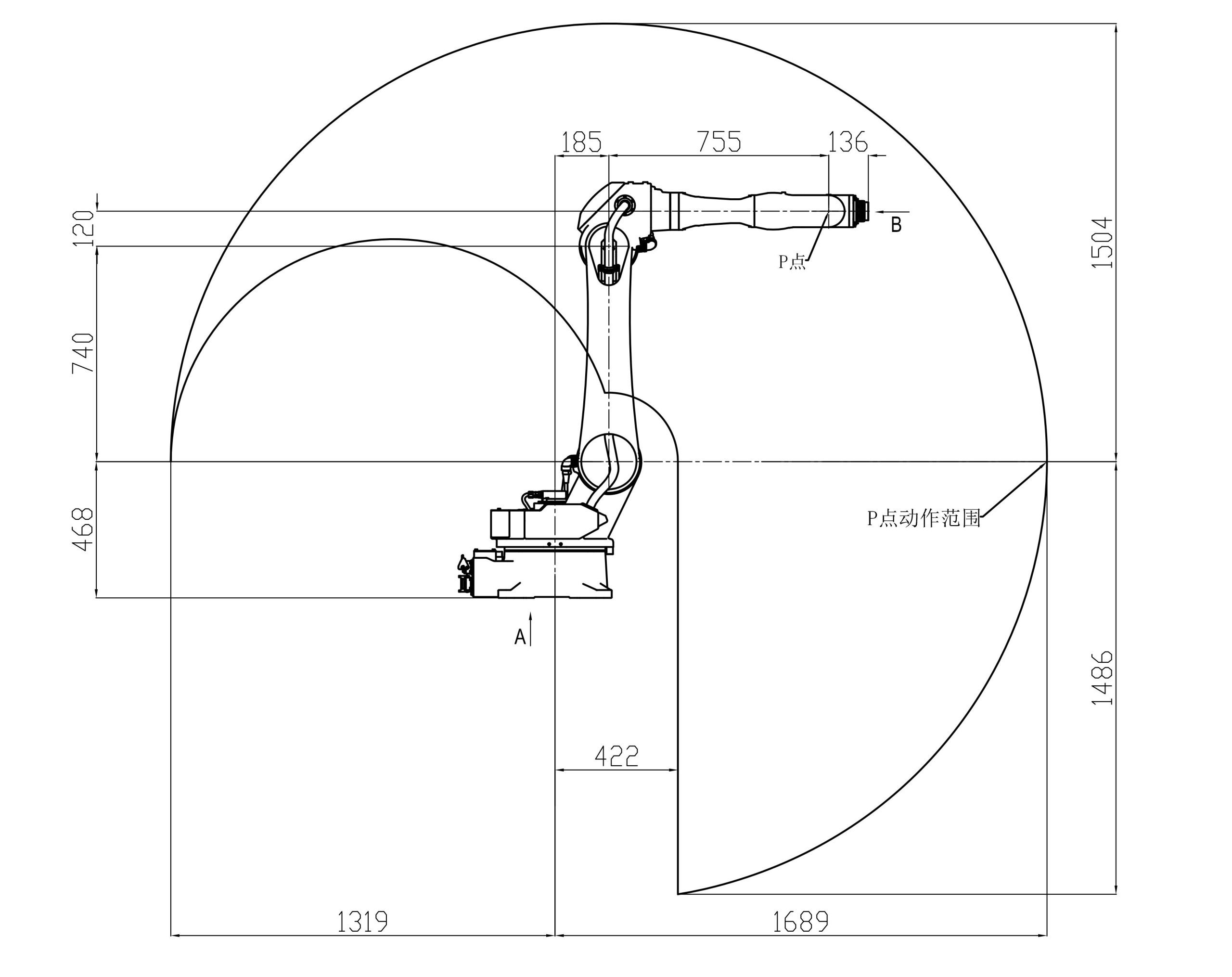

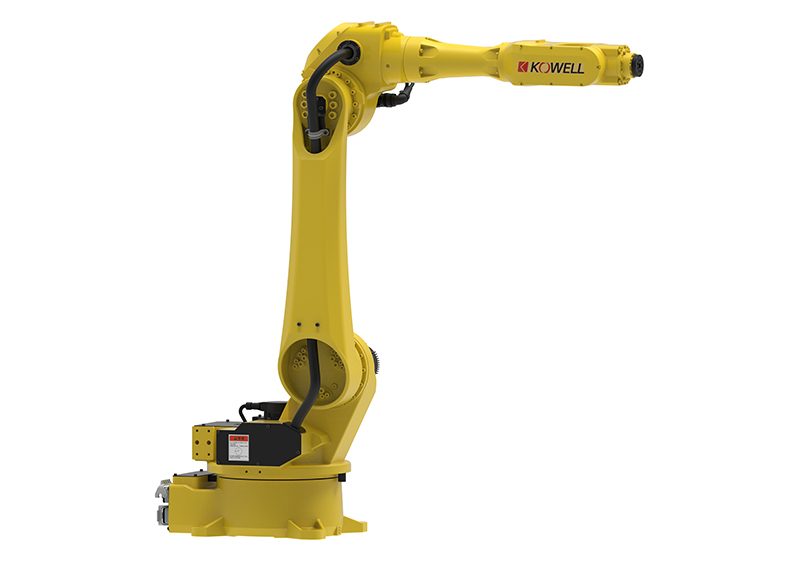

6-axis robotic arm with a payload of 15KG and a working radius of 1700mm. Widely applicable to working environments such as handling, picking and placing, palletizing, packing, loading and unloading materials. It can be applied to various industries such as photovoltaics, lithium batteries, automotive parts, food, beverages, and sheet metal. Advantages and features: Compact exterior structure, capable of flexible operation in narrow workspaces; High repeatability accuracy, stable performance, and fast running speed; Support multiple bus communications; Built in IO and trachea for easy fixture installation.

FUNKTIONEN

  • Vertically articulated six-axis arm rated 15 kg payload with a 1,700 mm working radius.
  • Position repetition accuracy of ±0.05 mm
  • body weight 215 kg.
  • Power capacity 2.0 kVA
  • protection rated equivalent to IP54.
  • Ground (floor) mounted installation.
  • Rated for 0-45 °C and 20-80% RH, non-condensing.
  • It is a 6-axis robotic arm with a payload of 15KG and a working radius of 1700mm. Widely applicable to working environments such as handling, picking and placing, palletizing, packing, loading and unloading materials. It can be applied to various industries such as photovoltaics, lithium...

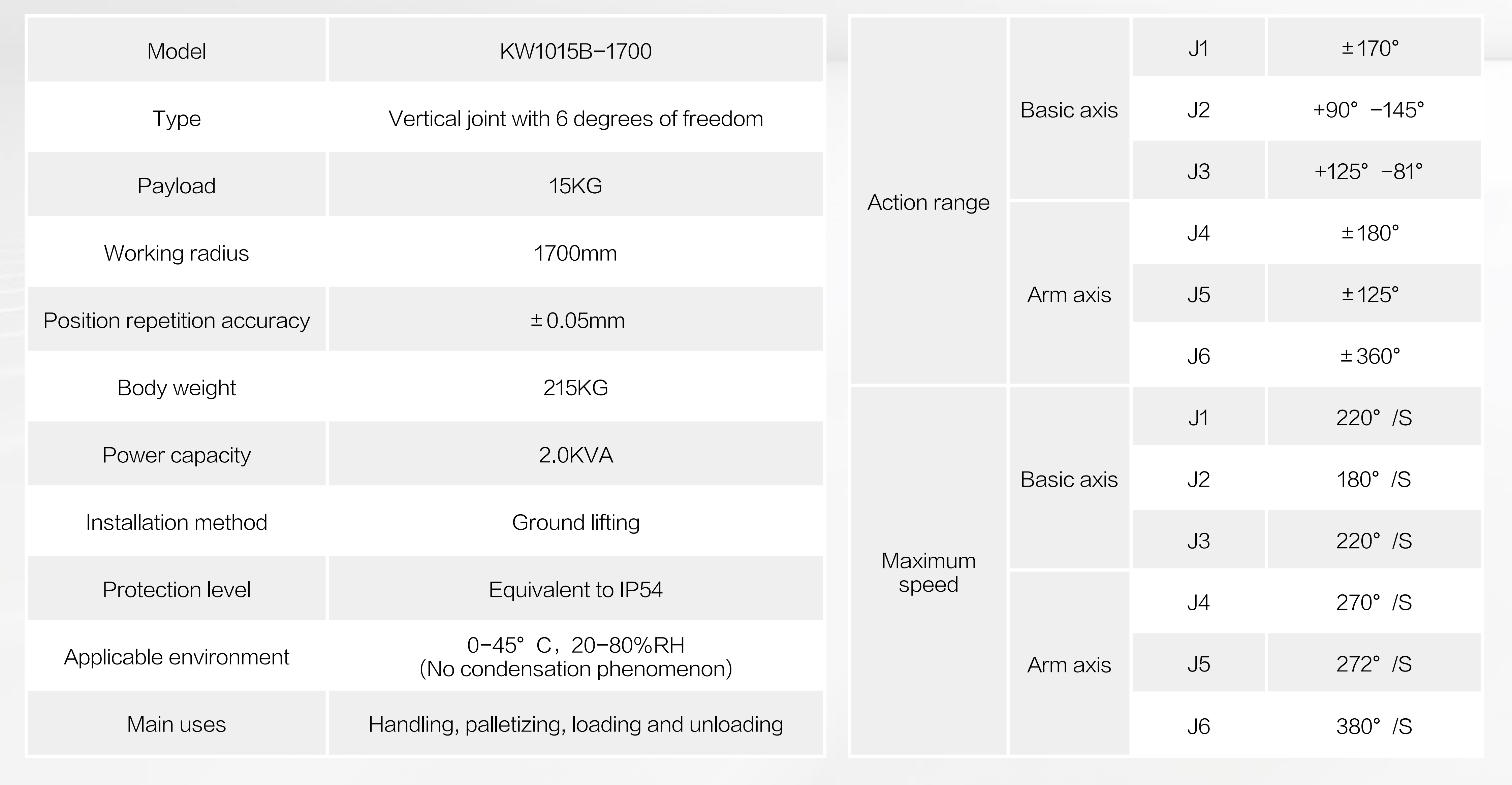

TECHNISCHE DATEN

Verifiziert
Physisch
Gewicht215 kg
Traglast15 kg
Reichweite1.7 m
Wiederholgenauigkeit±0.05 mm
Mobilität
BewegungsartStationär
Freiheitsgrade6
EinsatzumgebungIndoor industrial; 0-45 °C, 20-80% RH, non-condensing.
HerstellerangabeDrittquelleOhne QuelleDer Quellenstatus basiert auf den angegebenen Quellen dieses Roboters.

HÄUFIG GESTELLTE FRAGEN

What is the KW1015B-1700?

6-axis robotic arm with a payload of 15KG and a working radius of 1700mm. Widely applicable to working environments such as handling, picking and placing, palletizing, packing, loading and unloading materials.

Who makes the KW1015B-1700?

The KW1015B-1700 is made by Shandong Kewei Robot, a robotics company based in China.

How much does the KW1015B-1700 cost?

Shandong Kewei Robot has not publicly announced pricing for the KW1015B-1700. You can enquire through RobotAIGeek for current pricing.

What is the KW1015B-1700 used for?

The KW1015B-1700 is designed for materialhandhabung and palettieren. It is used in lager & logistik and fertigung settings.

What is the payload capacity of the KW1015B-1700?

The KW1015B-1700 has a payload capacity of 15 kg and a reach of 1.7 m.

How much does the KW1015B-1700 weigh?

The KW1015B-1700 weighs 215 kg.

How many degrees of freedom does the KW1015B-1700 have?

The KW1015B-1700 has 6 degrees of freedom.
