Standard Bots Spark

Standard Bots
Industrial-RobotUnited StatesUnited StatesVeröffentlicht
Standard Bots Spark
Vergleichen
Quellen:
standardbots.com
Branchen:
ElektronikForschungFertigung
Anwendungen:
MontagePick-and-PlacePolierenForschungInspektion
Preis:
Nicht angekündigt

BESCHREIBUNG

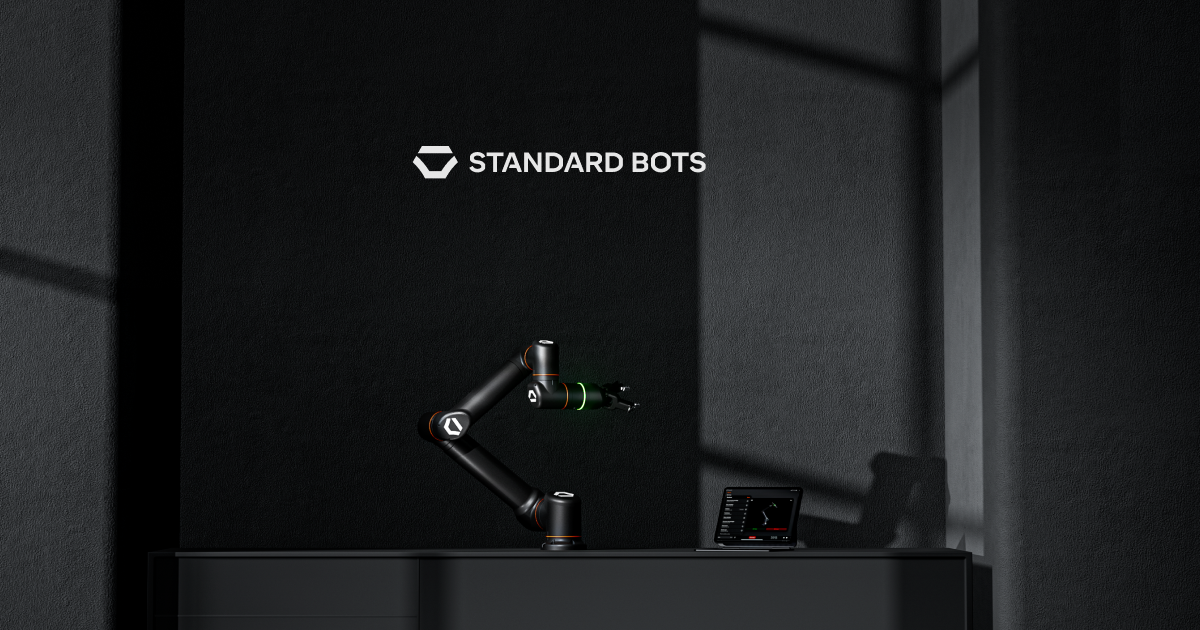

Spark is Standard Bots' tabletop arm, which the company calls the world's greatest tabletop robot: a compact six-axis cobot for precision work in R&D, laboratories and light manufacturing, starting at $29,500. It carries 7 kg over a 900 mm reach and repeats to within 0.025 mm, in a footprint under 200 mm and a 21 kg body designed to IP65. Standard Bots pitches it as a workbench companion roughly the size of a desk lamp - quiet enough to sit beside a person all day - that takes over fastening, screwdriving, sanding, polishing, pipetting and sample sorting. High-resolution force and torque sensing runs continuously, which is what lets it handle delicate work such as part insertion, material testing and sensitive sample handling. Like the rest of the range it is programmed through the company's no-code app, where an operator teaches a new routine in minutes and switches tasks without writing code, with a developer SDK available for deeper integration.

FUNKTIONEN

  • Tabletop six-axis collaborative arm
  • 7 kg payload, 900 mm reach
  • Repeatability +/-0.025 mm
  • Footprint under 200 mm diameter
  • 21 kg, designed to IP65
  • High-resolution continuous force and torque sensing
  • Near-silent operation for work beside people
  • No-code app: teach a routine in minutes
  • For fastening, screwdriving, sanding, polishing, pipetting and sample sorting
  • Starting at $29,500

TECHNISCHE DATEN

Verifiziert
Physisch
Gewicht21 kg
Traglast7 kg
Reichweite900 mm
Wiederholgenauigkeit±0.03 mm
Mobilität
BewegungsartStationär
Freiheitsgrade6
ManipulationHoch
EinsatzumgebungWorkbenches, laboratories and light manufacturing cells; IP65 design.
AktorenAmpereDrive integrated motors, encoders and drives
Sensorik & Rechenleistung
SensorenHigh-resolution force and torque sensing
Software / KINo-code app with drag-and-tap routine programming; developer SDK with full API access; unified fleet management; Flux video-to-action AI model trained by teleoperated demonstration
HerstellerangabeDrittquelleOhne QuelleDer Quellenstatus basiert auf den angegebenen Quellen dieses Roboters.

HÄUFIG GESTELLTE FRAGEN

What is the Standard Bots Spark?

Spark is Standard Bots' tabletop arm, which the company calls the world's greatest tabletop robot: a compact six-axis cobot for precision work in R&D, laboratories and light manufacturing, starting at $29,500.

Who makes the Standard Bots Spark?

The Standard Bots Spark is made by Standard Bots, a robotics company based in United States.

How much does the Standard Bots Spark cost?

The Standard Bots Spark is priced at around $29,500.

What is the Standard Bots Spark used for?

The Standard Bots Spark is designed for montage, pick-and-place, polieren, and forschung. It is used in elektronik, forschung, and fertigung settings.

What is the payload capacity of the Standard Bots Spark?

The Standard Bots Spark has a payload capacity of 7 kg and a reach of 900 mm.

How much does the Standard Bots Spark weigh?

The Standard Bots Spark weighs 21 kg.

How many degrees of freedom does the Standard Bots Spark have?

The Standard Bots Spark has 6 degrees of freedom.
