BESCHREIBUNG

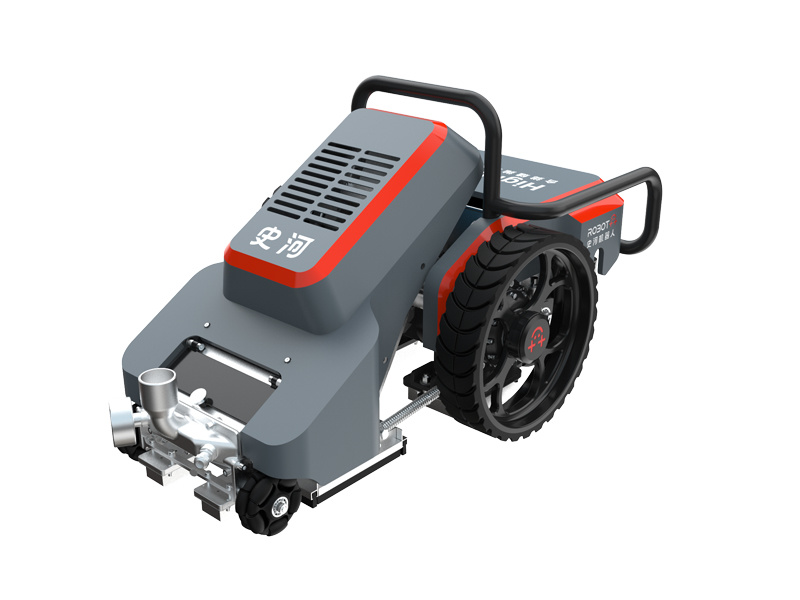

B10 is Shihe's closing-seam shot-blasting robot, built for one job in shipbuilding: treating the steel either side of the weld after large hull sections are joined. That seam is the last surface to be prepared and the hardest to reach, high on a hull with no scaffold. The robot is a magnetic chassis carrying a shot-blasting head, a remote, a vacuum cleaner and recovery hosing. Abrasive is thrown at the plate to strip paint and rust, then circulated back inside the head for reuse, while the vacuum recovers dust into a waste bin - the point being both cost and the operator's lungs. It reaches Sa2.5 surface quality and up to Sa3, with a 50-90 micron roughness profile for paint adhesion, and Shihe puts it at more than five times the throughput of manual grinding. The machine is 905 x 500 x 500 mm and 72 kg, works a 180 mm width at 10 m/min, uses 1.0 mm steel grit, and is rated IP65. The operator stands on the ground with a remote, which removes the fall risk entirely.
FUNKTIONEN
- Shot blasting either side of closing-seam welds after hull sections are joined
- Abrasive recirculated inside the blasting head for reuse
- External vacuum system recovers dust to a waste bin
- Surface quality Sa2.5, up to Sa3
- roughness 50-90 microns
- More than five times the throughput of manual grinding
- Dimensions 905 x 500 x 500 mm
- weight 72 kg
- Working width 180 mm
- travel speed 10 m/min
- Abrasive 1.0 mm steel grit
- Protection rating IP65
- Ground-level remote operation - no scaffolding, cradle or aerial platform
TECHNISCHE DATEN
Verifiziert| Physisch | |
| Gewicht | 72 kg |
|---|---|
| Abmessungen | L 905 mm × W 500 mm × H 500 mm |
| Mobilität | |
| Bewegungsart | Radbasiert |
| Geschwindigkeit | 0.6 km/h |
| Manipulation | Niedrig |
| Einsatzumgebung | Hull exteriors at closing seams after large-section joining, in shipyards, IP65 |
| Aktoren | Magnetic-adhesion chassis carrying a recirculating shot-blasting head over a 180 mm swath at 10 m/min |
TECHNISCHE DATEN
Verifiziert| Physisch | |
| Gewicht | 72 kg |
|---|---|
| Abmessungen | L 905 mm × W 500 mm × H 500 mm |
| Mobilität | |
| Bewegungsart | Radbasiert |
| Geschwindigkeit | 0.6 km/h |
| Manipulation | Niedrig |
| Einsatzumgebung | Hull exteriors at closing seams after large-section joining, in shipyards, IP65 |
| Aktoren | Magnetic-adhesion chassis carrying a recirculating shot-blasting head over a 180 mm swath at 10 m/min |
Bilder
martti
Bildbeiträge
Videos
ROBOTER-FOREN
Foren werden geladen...
BEWERTUNGEN
HÄUFIG GESTELLTE FRAGEN
What is the Shihe HighMate B10?
B10 is Shihe's closing-seam shot-blasting robot, built for one job in shipbuilding: treating the steel either side of the weld after large hull sections are joined. That seam is the last surface to be prepared and the hardest to reach, high on a hull with no scaffold.
Who makes the Shihe HighMate B10?
The Shihe HighMate B10 is made by Shihe Technology, a robotics company based in China.
How much does the Shihe HighMate B10 cost?
Shihe Technology has not publicly announced pricing for the Shihe HighMate B10. You can enquire through RobotAIGeek for current pricing.
What is the Shihe HighMate B10 used for?
The Shihe HighMate B10 is designed for reinigung and beschichten. It is used in bergung and fertigung settings.
How much does the Shihe HighMate B10 weigh?
The Shihe HighMate B10 weighs 72 kg.
How fast is the Shihe HighMate B10?
The Shihe HighMate B10 can move at speeds of up to 0.6 km/h.
