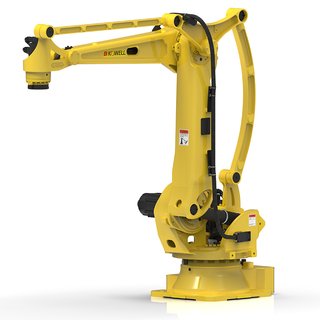

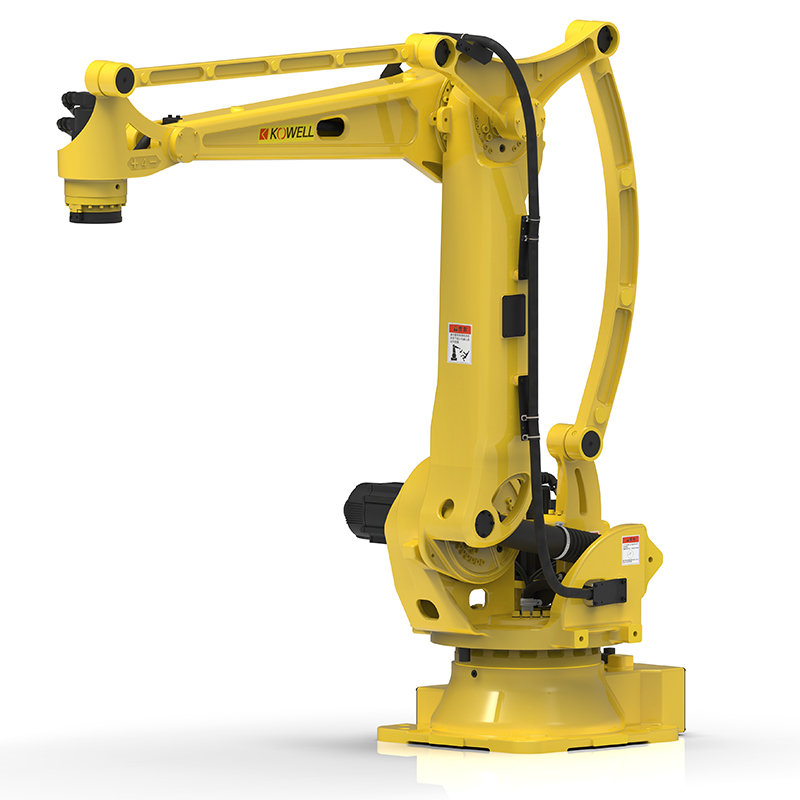

Robotic palletizing KW1300M-3200




BESCHREIBUNG
Robotic palletizing KW1300M-3200 ist ein Industrial-Robot von Shandong Kewei Robot. Er ist für Materialhandhabung, Palettieren ausgelegt. Eckdaten: 1200 kg, 300 kg Traglast, 3200 mm Reichweite, 4 Freiheitsgrade.
4-axis heavy-duty probotic palletizing with a gripping load of 300KG and a working radius of 3200mm. It can be applied to various work scenarios such as handling, picking and placing, palletizing, loading and unloading, and packing, and can be used in various industries such as food, beverage, building materials, logistics, and warehousing. Advantages and features: high precision, fast speed, simple and convenient operation; Fully automated operation saves labor costs; Equipped with a safe and reliable emergency stop button;
FUNKTIONEN
- Vertically articulated four-axis arm rated 300 kg payload with a 3,200 mm working radius.
- Position repetition accuracy of ±0.2 mm
- body weight 1200 kg.
- Power capacity 12 kVA
- protection rated equivalent to IP54.
- Ground (floor) mounted installation.
- Rated for 0-45 °C and 20-80% RH, non-condensing.
- It is a 4-axis heavy-duty probotic palletizing with a gripping load of 300KG and a working radius of 3200mm. It can be applied to various work scenarios such as handling, picking and placing, palletizing, loading and unloading, and packing, and can be used in various industries such as food,...

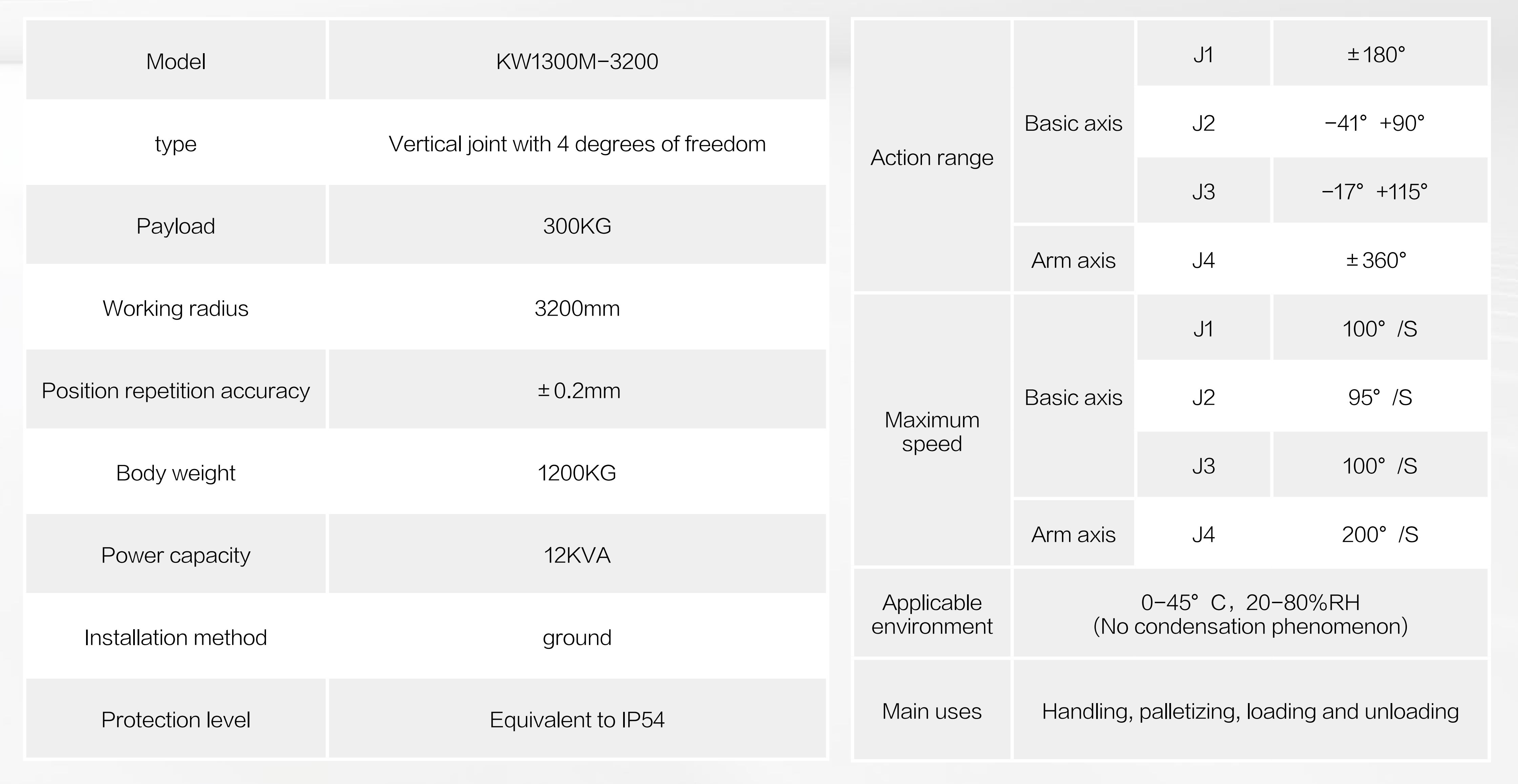

TECHNISCHE DATEN
Verifiziert| Physisch | |
| Gewicht | 1200 kg |
|---|---|
| Traglast | 300 kg |
| Reichweite | 3.2 m |
| Wiederholgenauigkeit | ±0.2 mm |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 4 |
| Einsatzumgebung | Indoor industrial; 0-45 °C, 20-80% RH, non-condensing. |
ROBOTER-FOREN
Foren werden geladen...
TECHNISCHE DATEN
Verifiziert| Physisch | |
| Gewicht | 1200 kg |
|---|---|
| Traglast | 300 kg |
| Reichweite | 3.2 m |
| Wiederholgenauigkeit | ±0.2 mm |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 4 |
| Einsatzumgebung | Indoor industrial; 0-45 °C, 20-80% RH, non-condensing. |
Bilder



Bildbeiträge
Videos
ROBOTER-FOREN
Foren werden geladen...
BEWERTUNGEN
HÄUFIG GESTELLTE FRAGEN
What is the Robotic palletizing KW1300M-3200?
4-axis heavy-duty probotic palletizing with a gripping load of 300KG and a working radius of 3200mm. It can be applied to various work scenarios such as handling, picking and placing, palletizing, loading and unloading, and packing, and can be used in various industries such as food, beverage, building materials, logis…
Who makes the Robotic palletizing KW1300M-3200?
The Robotic palletizing KW1300M-3200 is made by Shandong Kewei Robot, a robotics company based in China.
How much does the Robotic palletizing KW1300M-3200 cost?
Shandong Kewei Robot has not publicly announced pricing for the Robotic palletizing KW1300M-3200. You can enquire through RobotAIGeek for current pricing.
What is the Robotic palletizing KW1300M-3200 used for?
The Robotic palletizing KW1300M-3200 is designed for materialhandhabung and palettieren. It is used in lager & logistik and fertigung settings.
What is the payload capacity of the Robotic palletizing KW1300M-3200?
The Robotic palletizing KW1300M-3200 has a payload capacity of 300 kg and a reach of 3.2 m.
How much does the Robotic palletizing KW1300M-3200 weigh?
The Robotic palletizing KW1300M-3200 weighs 1,200 kg.
How many degrees of freedom does the Robotic palletizing KW1300M-3200 have?
The Robotic palletizing KW1300M-3200 has 4 degrees of freedom.
