BESCHREIBUNG

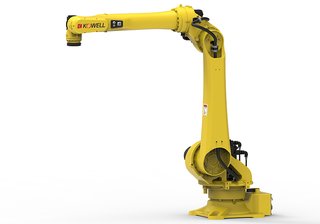

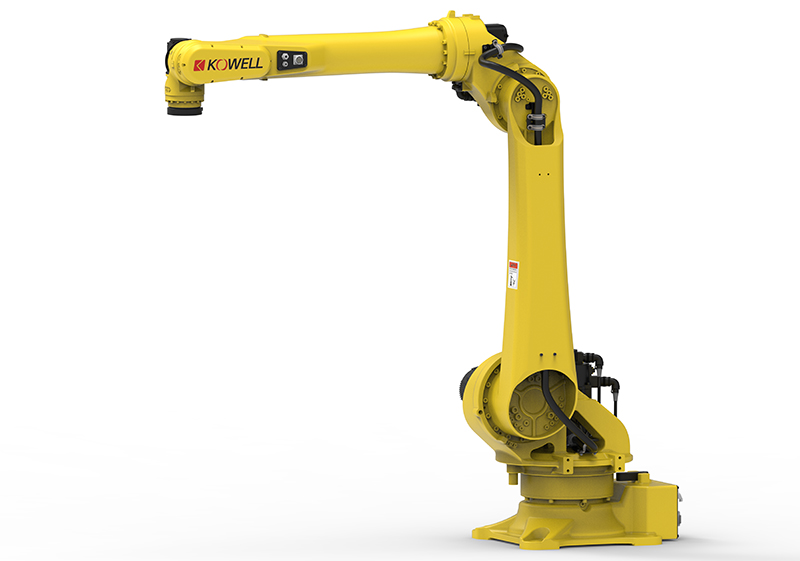

A six axis industrial robot with an ultra long working radius of 2700mm and a load capacity of 80kg. Accurate operation in multiple industries such as electronics, new energy, lithium batteries, food, beverages, and sheet metal, integrating advanced technology, flexible joints, convenient programming applications, extraordinary efficiency, durable and easy to maintain body, making it an ideal choice for intelligent manufacturing.
FUNKTIONEN
- Vertically articulated six-axis arm rated 80 kg payload with a 2,700 mm working radius.
- Position repetition accuracy of ±0.05 mm
- body weight 570 kg.
- Power capacity 5.0 kVA
- protection rated equivalent to IP54.
- Ground (floor) mounted installation.
- Rated for 0-45 °C and 20-80% RH, non-condensing.
- A six axis industrial robot with an ultra long working radius of 2700mm and a load capacity of 80kg. Accurate operation in multiple industries such as electronics, new energy, lithium batteries, food, beverages, and sheet metal, integrating advanced technology, flexible joints, convenient...

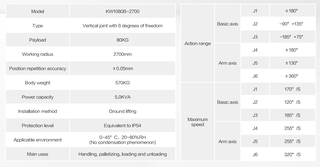

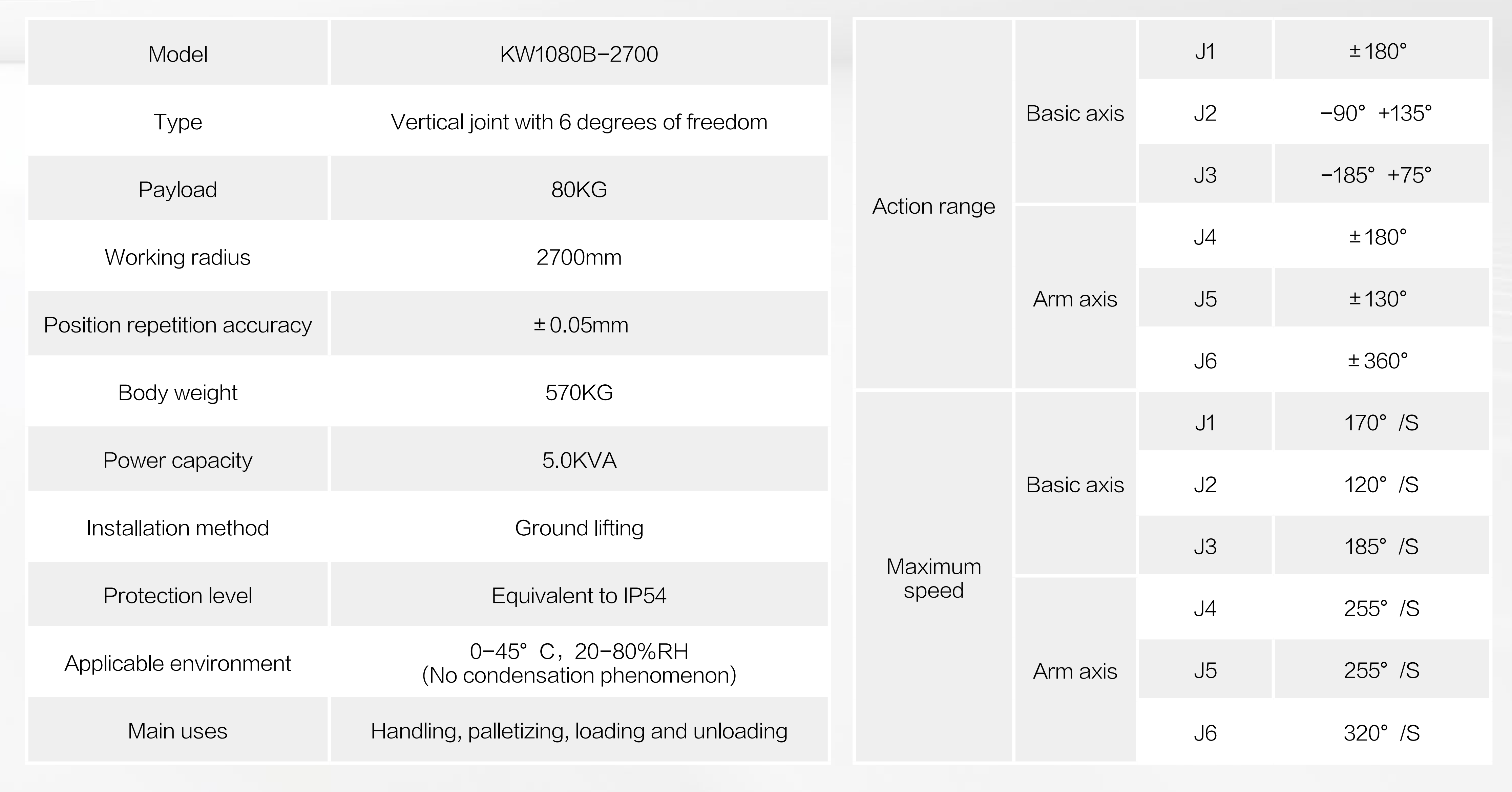

TECHNISCHE DATEN
Verifiziert| Physisch | |
| Gewicht | 570 kg |
|---|---|
| Traglast | 80 kg |
| Reichweite | 2.7 m |
| Wiederholgenauigkeit | ±0.05 mm |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 6 |
| Einsatzumgebung | Indoor industrial; 0-45 °C, 20-80% RH, non-condensing. |
TECHNISCHE DATEN
Verifiziert| Physisch | |
| Gewicht | 570 kg |
|---|---|
| Traglast | 80 kg |
| Reichweite | 2.7 m |
| Wiederholgenauigkeit | ±0.05 mm |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 6 |
| Einsatzumgebung | Indoor industrial; 0-45 °C, 20-80% RH, non-condensing. |
Bilder
martti
martti
marttiBildbeiträge
Videos
ROBOTER-FOREN
Foren werden geladen...
BEWERTUNGEN
HÄUFIG GESTELLTE FRAGEN
What is the KW1080B-2700?
A six axis industrial robot with an ultra long working radius of 2700mm and a load capacity of 80kg. Accurate operation in multiple industries such as electronics, new energy, lithium batteries, food, beverages, and sheet metal, integrating advanced technology, flexible joints, convenient programming applications, extr…
Who makes the KW1080B-2700?
The KW1080B-2700 is made by Shandong Kewei Robot, a robotics company based in China.
How much does the KW1080B-2700 cost?
Shandong Kewei Robot has not publicly announced pricing for the KW1080B-2700. You can enquire through RobotAIGeek for current pricing.
What is the KW1080B-2700 used for?
The KW1080B-2700 is designed for materialhandhabung and palettieren. It is used in lager & logistik and fertigung settings.
What is the payload capacity of the KW1080B-2700?
The KW1080B-2700 has a payload capacity of 80 kg and a reach of 2.7 m.
How much does the KW1080B-2700 weigh?
The KW1080B-2700 weighs 570 kg.
How many degrees of freedom does the KW1080B-2700 have?
The KW1080B-2700 has 6 degrees of freedom.
