BESCHREIBUNG

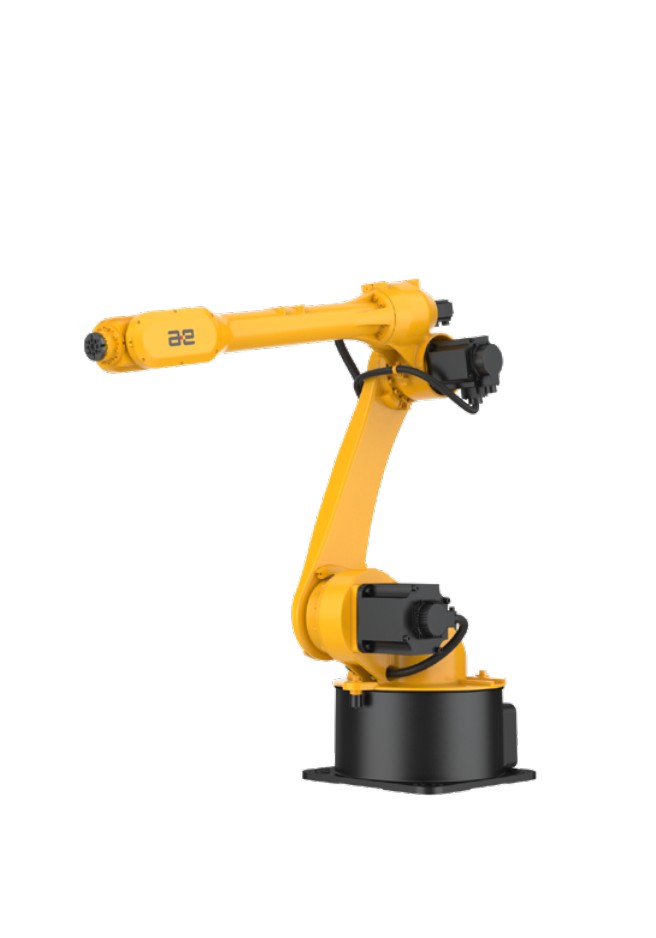

The AIR20-2000 is a medium-payload six-axis articulated arm from Peitian's AIR range, carrying 20 kg to a reach of 2001 mm. Peitian quotes position repeatability of ±0.03mm, which is the figure that decides whether an arm of this size can be trusted on close-tolerance work rather than only on gross handling. The manipulator weighs 280 kg. It is sealed to IP54(Wrist: IP67), and can be mounted Floor or wall or ceiling. It runs on Peitian's inCube22 / ARC5-25 controller cabinet.
FUNKTIONEN
- Six-axis articulated industrial robot arm
- Rated payload 20 kg
- Maximum reach 2001 mm
- Manipulator weight 280 kg
- Position repeatability ±0.03mm
- Ingress protection IP54(Wrist: IP67)
- Mounting: Floor / wall / ceiling
- Compatible controller cabinets: inCube22 / ARC5-25
- Working range Axis 1 rotation -170°/+170°
- Axis 2 arm -95°/+155°
- Axis 3 arm -95°/+170°
- Axis 4 wrist -185°/+185°
- Axis 5 bend -135°/+135°
- Axis 6 turn -400°/+400°
- Rotation rate Axis 1 rotation 220°/s
- Axis 2 arm 220°/s
- Axis 3 arm 170°/s
- Axis 4 wrist 375°/s
- Axis 5 bend 465°/s
- Axis 6 turn 755°/s
- Ambient temperature 0 to 45 degrees Celsius, humidity up to 95% non-condensing, altitude up to 1000 m
- No corrosive, flammable or explosive gases permitted in the operating environment
TECHNISCHE DATEN
| Physisch | |
| Gewicht | 280 kg |
|---|---|
| Traglast | 20 kg |
| Reichweite | 2 m |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 6 |
| Manipulation | Hoch |
| Einsatzumgebung | Industrial indoor use, 0 to 45 degrees Celsius, humidity up to 95% non-condensing, altitude up to 1000 m; no corrosive, flammable or explosive gases |
| Aktoren | 6-axis six-axis articulated manipulator, mounted Floor or wall or ceiling |
| Sensorik & Rechenleistung | |
| Software / KI | Driven by Peitian inCube22 / ARC5-25 controller cabinets |
TECHNISCHE DATEN
| Physisch | |
| Gewicht | 280 kg |
|---|---|
| Traglast | 20 kg |
| Reichweite | 2 m |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 6 |
| Manipulation | Hoch |
| Einsatzumgebung | Industrial indoor use, 0 to 45 degrees Celsius, humidity up to 95% non-condensing, altitude up to 1000 m; no corrosive, flammable or explosive gases |
| Aktoren | 6-axis six-axis articulated manipulator, mounted Floor or wall or ceiling |
| Sensorik & Rechenleistung | |
| Software / KI | Driven by Peitian inCube22 / ARC5-25 controller cabinets |
Bilder
martti
Bildbeiträge
Videos
ROBOTER-FOREN
Foren werden geladen...
BEWERTUNGEN
HÄUFIG GESTELLTE FRAGEN
What is the Peitian AIR20-2000?
The AIR20-2000 is a medium-payload six-axis articulated arm from Peitian's AIR range, carrying 20 kg to a reach of 2001 mm. Peitian quotes position repeatability of ±0.03mm, which is the figure that decides whether an arm of this size can be trusted on close-tolerance work rather than only on gross handling.
Who makes the Peitian AIR20-2000?
The Peitian AIR20-2000 is made by Peitian Robot, a robotics company based in China.
How much does the Peitian AIR20-2000 cost?
Peitian Robot has not publicly announced pricing for the Peitian AIR20-2000. You can enquire through RobotAIGeek for current pricing.
What is the Peitian AIR20-2000 used for?
The Peitian AIR20-2000 is designed for montage, pick-and-place, loading and unloading, and handling. It is used in forschung and fertigung settings.
What is the payload capacity of the Peitian AIR20-2000?
The Peitian AIR20-2000 has a payload capacity of 20 kg and a reach of 2 m.
How much does the Peitian AIR20-2000 weigh?
The Peitian AIR20-2000 weighs 280 kg.
How many degrees of freedom does the Peitian AIR20-2000 have?
The Peitian AIR20-2000 has 6 degrees of freedom.
