KW1220B-3200

Shandong Kewei Robot
Industrial-RobotChinaChinaVeröffentlicht
KW1220B-3200
Vergleichen
Quellen:
keweirobot.com
Branchen:
Lager & LogistikFertigung
Anwendungen:
MaterialhandhabungPalettieren
Preis:
Nicht angekündigt

BESCHREIBUNG

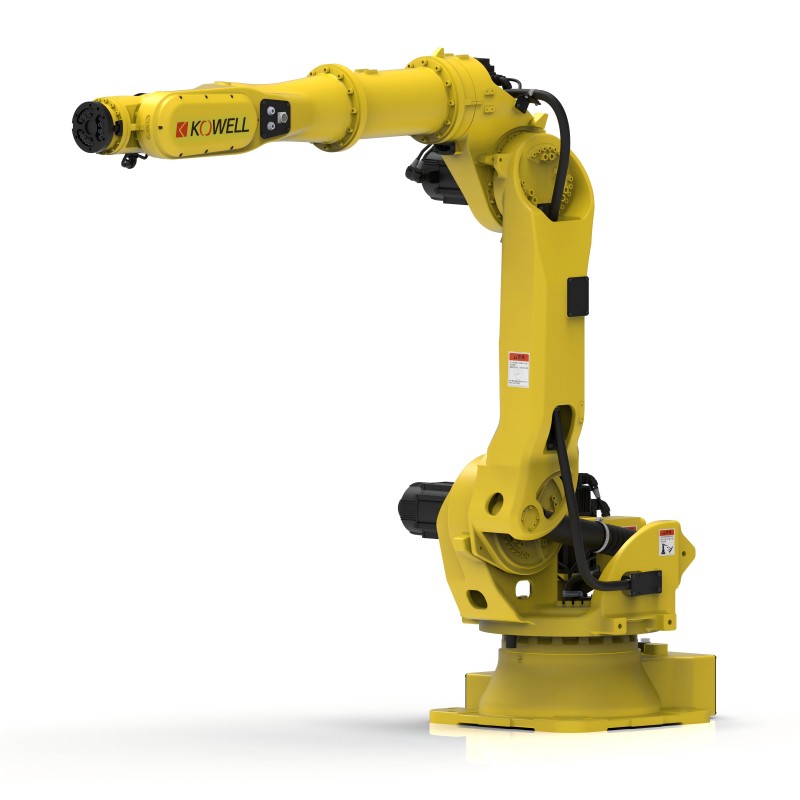

6-axis robotic arm with a payload of 220KG and a working radius of 3200mm. It can be applied to various work scenarios such as handling, picking and placing, palletizing, loading and unloading, and is used in various industries such as food, beverage, building materials, logistics, warehousing, doors and windows, photovoltaics, new energy, etc. It is a favored product for automation solutions for sheet metal and ceramics. Advantages and features: high precision, fast speed, simple and convenient operation; Fully automated operation saves labor costs; Equipped with a safe and reliable emergency stop button;

FUNKTIONEN

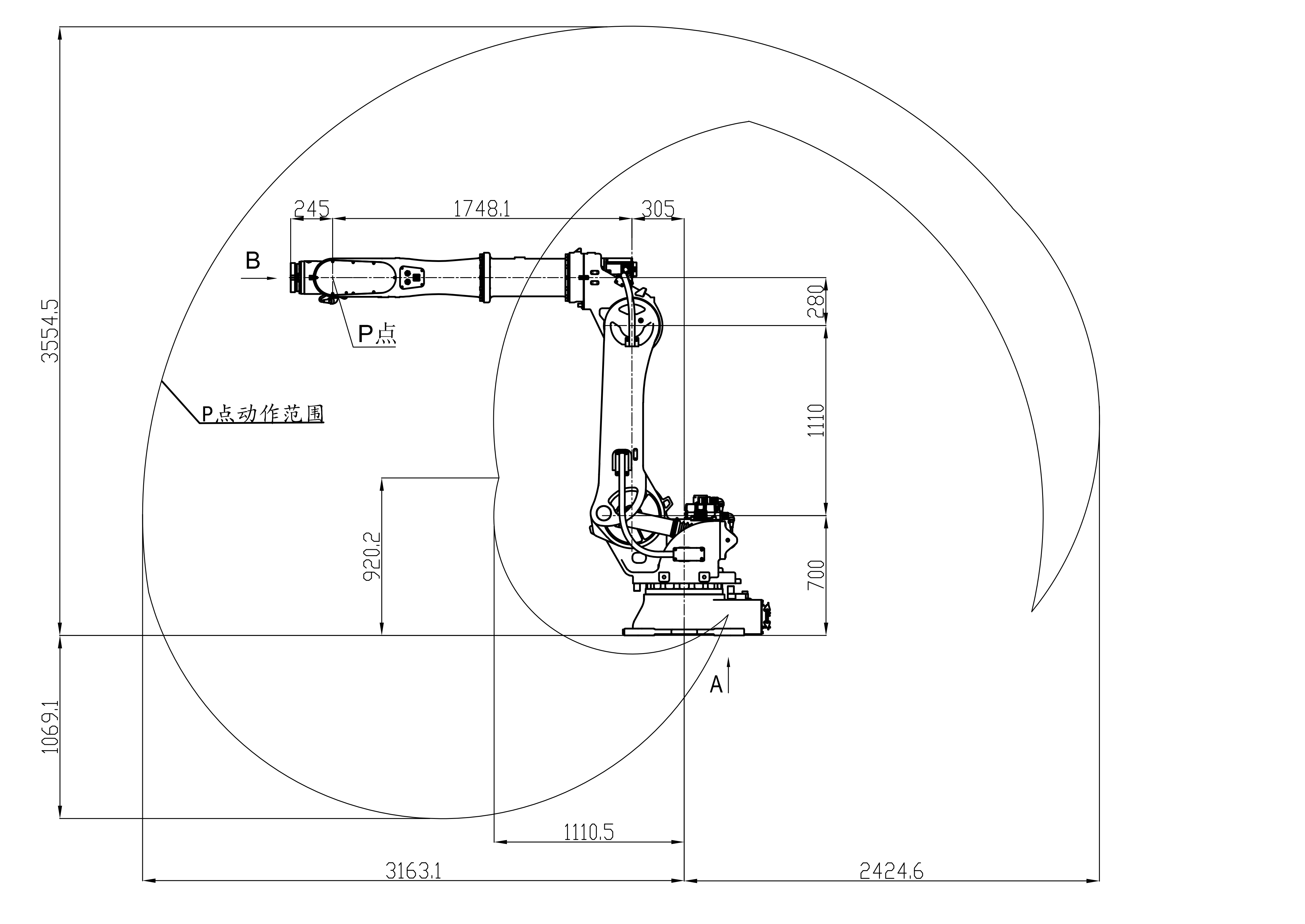

  • Vertically articulated six-axis arm rated 220 kg payload with a 3,200 mm working radius.
  • Position repetition accuracy of ±0.06 mm
  • body weight 1050 kg.
  • Power capacity 11 kVA
  • protection rated equivalent to IP54.
  • Ground (floor) mounted installation.
  • Rated for 0-45 °C and 20-80% RH, non-condensing.
  • It is a 6-axis robotic arm with a payload of 220KG and a working radius of 3200mm. It can be applied to various work scenarios such as handling, picking and placing, palletizing, loading and unloading, and is used in various industries such as food, beverage, building materials, logistics,...

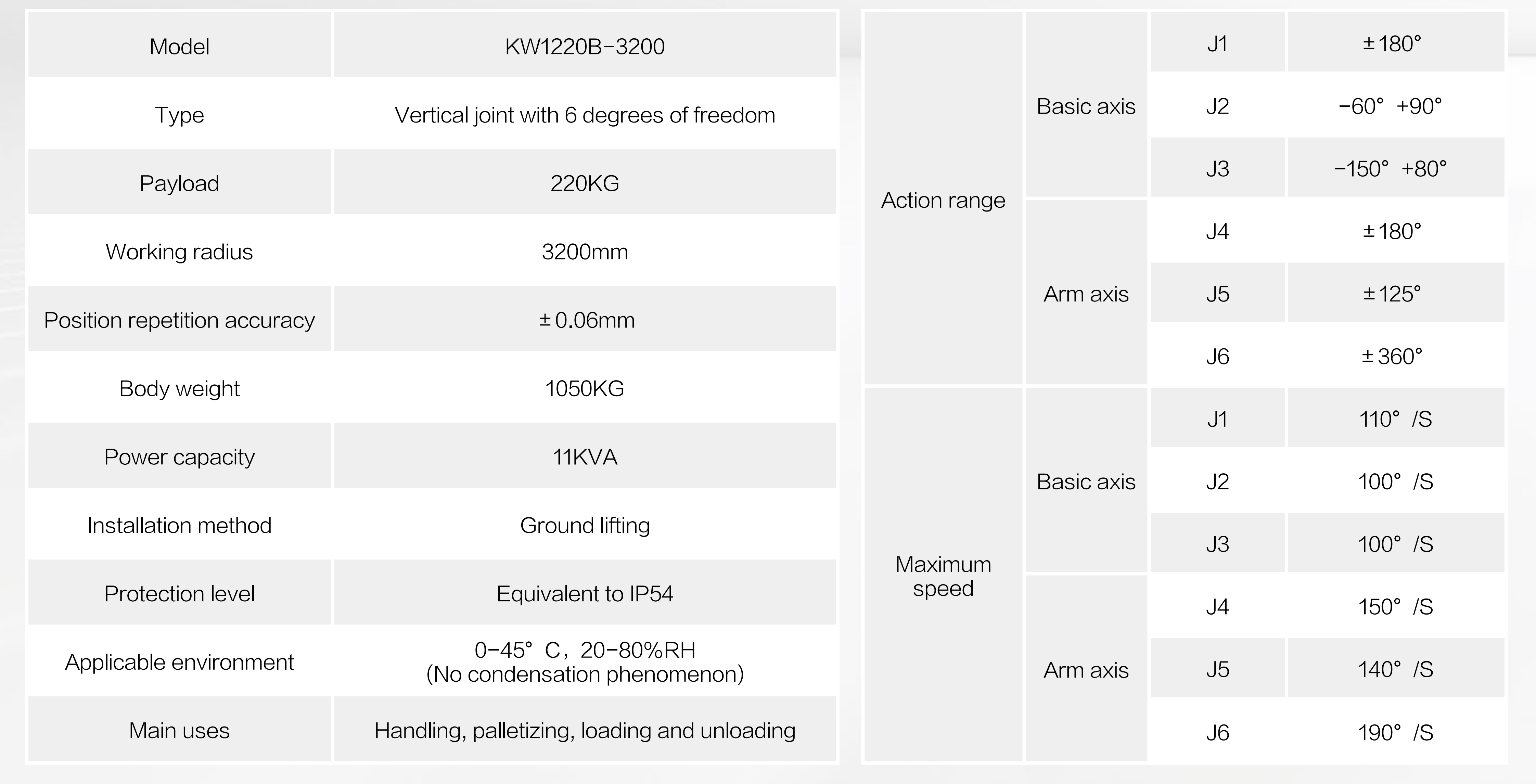

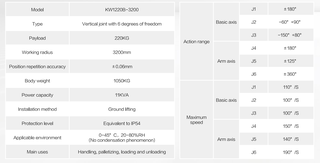

TECHNISCHE DATEN

Verifiziert
Physisch
Gewicht1050 kg
Traglast220 kg
Reichweite3.2 m
Wiederholgenauigkeit±0.06 mm
Mobilität
BewegungsartStationär
Freiheitsgrade6
EinsatzumgebungIndoor industrial; 0-45 °C, 20-80% RH, non-condensing.
HerstellerangabeDrittquelleOhne QuelleDer Quellenstatus basiert auf den angegebenen Quellen dieses Roboters.

HÄUFIG GESTELLTE FRAGEN

What is the KW1220B-3200?

6-axis robotic arm with a payload of 220KG and a working radius of 3200mm. It can be applied to various work scenarios such as handling, picking and placing, palletizing, loading and unloading, and is used in various industries such as food, beverage, building materials, logistics, warehousing, doors and windows, photo…

Who makes the KW1220B-3200?

The KW1220B-3200 is made by Shandong Kewei Robot, a robotics company based in China.

How much does the KW1220B-3200 cost?

Shandong Kewei Robot has not publicly announced pricing for the KW1220B-3200. You can enquire through RobotAIGeek for current pricing.

What is the KW1220B-3200 used for?

The KW1220B-3200 is designed for materialhandhabung and palettieren. It is used in lager & logistik and fertigung settings.

What is the payload capacity of the KW1220B-3200?

The KW1220B-3200 has a payload capacity of 220 kg and a reach of 3.2 m.

How much does the KW1220B-3200 weigh?

The KW1220B-3200 weighs 1,050 kg.

How many degrees of freedom does the KW1220B-3200 have?

The KW1220B-3200 has 6 degrees of freedom.
