INSPECTOR Video and Laser Inspection Robot
BESCHREIBUNG
INSPECTOR Video and Laser Inspection Robot ist ein Mobile-Robots von Inspector Systems. Er ist für Datenerfassung, Inspektion ausgelegt.

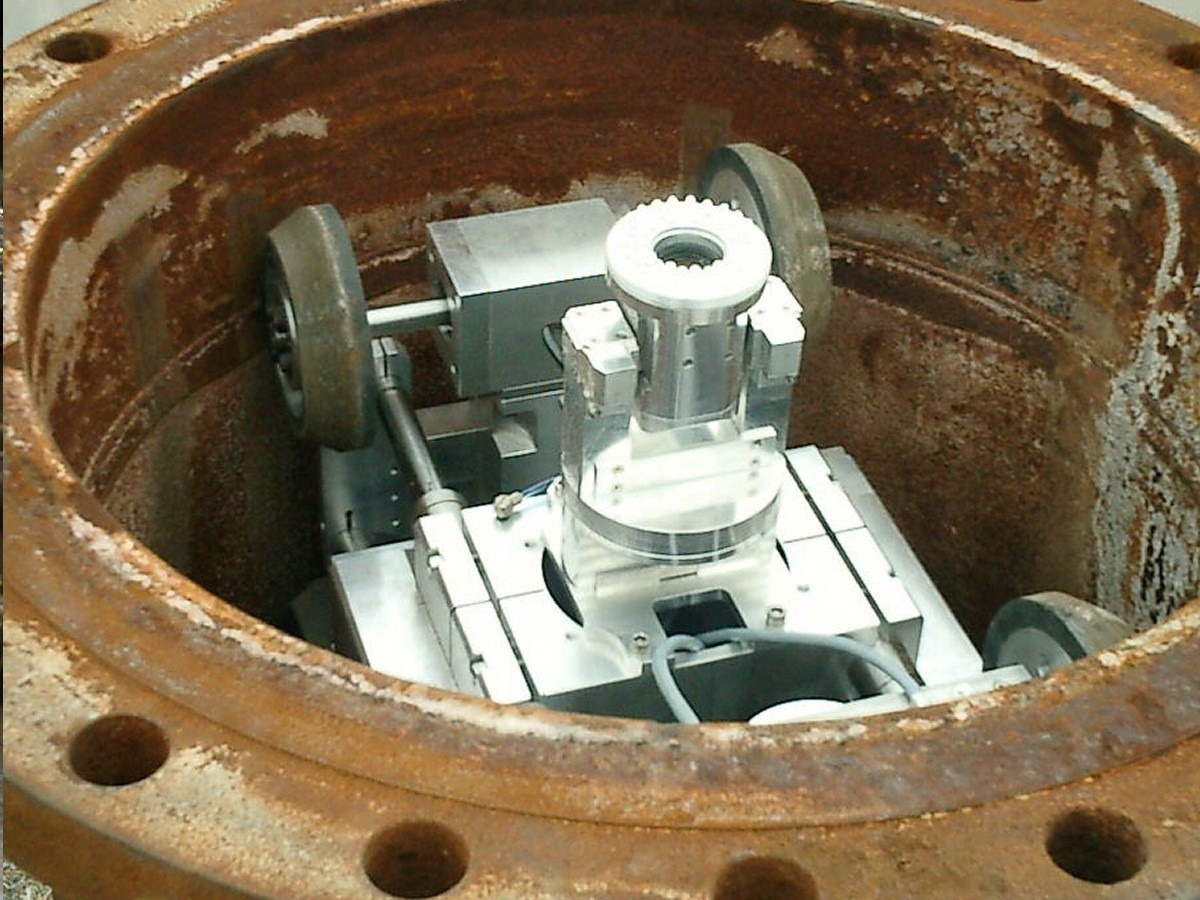

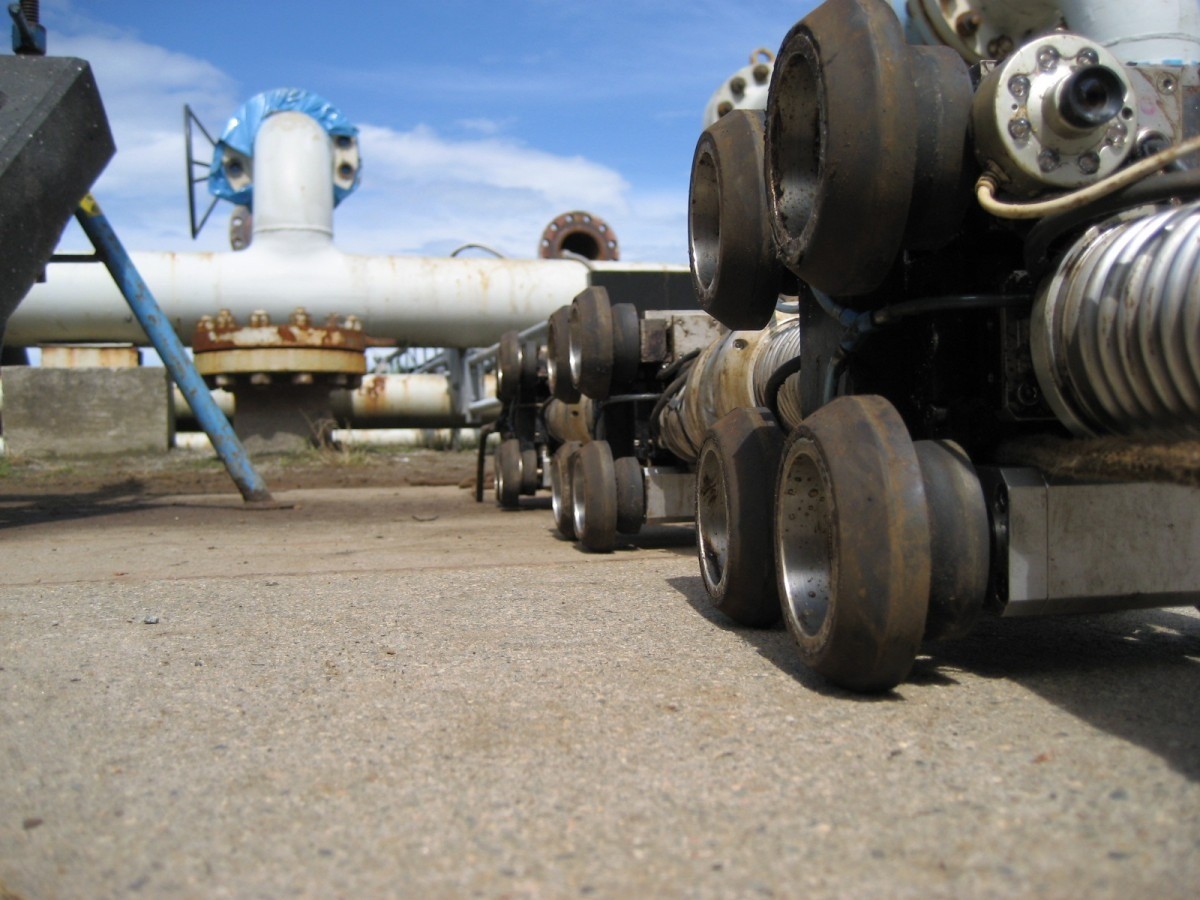

The INSPECTOR Video and Laser Inspection Robot is a self-propelled pipe crawler for pipe systems with many bends, vertical sections and branches, in lines up to 500 m long. It is sold in seven sizes from Type 1000 to Type 7000, covering inner diameters from 75 mm to 1,200 mm. Three drive elements, each with two DC motors and joined by flexible bellows, reach 200 m/h horizontally and vertically, while rubber wheels pressed against the pipe wall by compressed air or springs give it grip. Its pan-and-tilt head carries a colour camera with 10x optical zoom and a ring of 24 or 48 LEDs. From Type 3000 upwards a point laser measures internal defects larger than 2 mm with accuracy better than 0.1 mm, and software calculates pipe profiles and ovality. Control runs through an electronic or glass fibre cable to a control unit and laptop.
FUNKTIONEN
- Sizes Type 1000 to Type 7000: 75 mm to 1,200 mm inner diameter
- Up to 200 m/h, horizontal and vertical
- Pipe lengths up to 500 m
- Bends up to 1.5 D (partly 1.0 D)

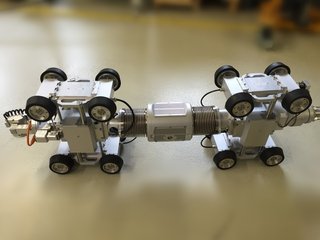

- Three drive elements with two DC motors each
- Wheels pressed by compressed air or springs

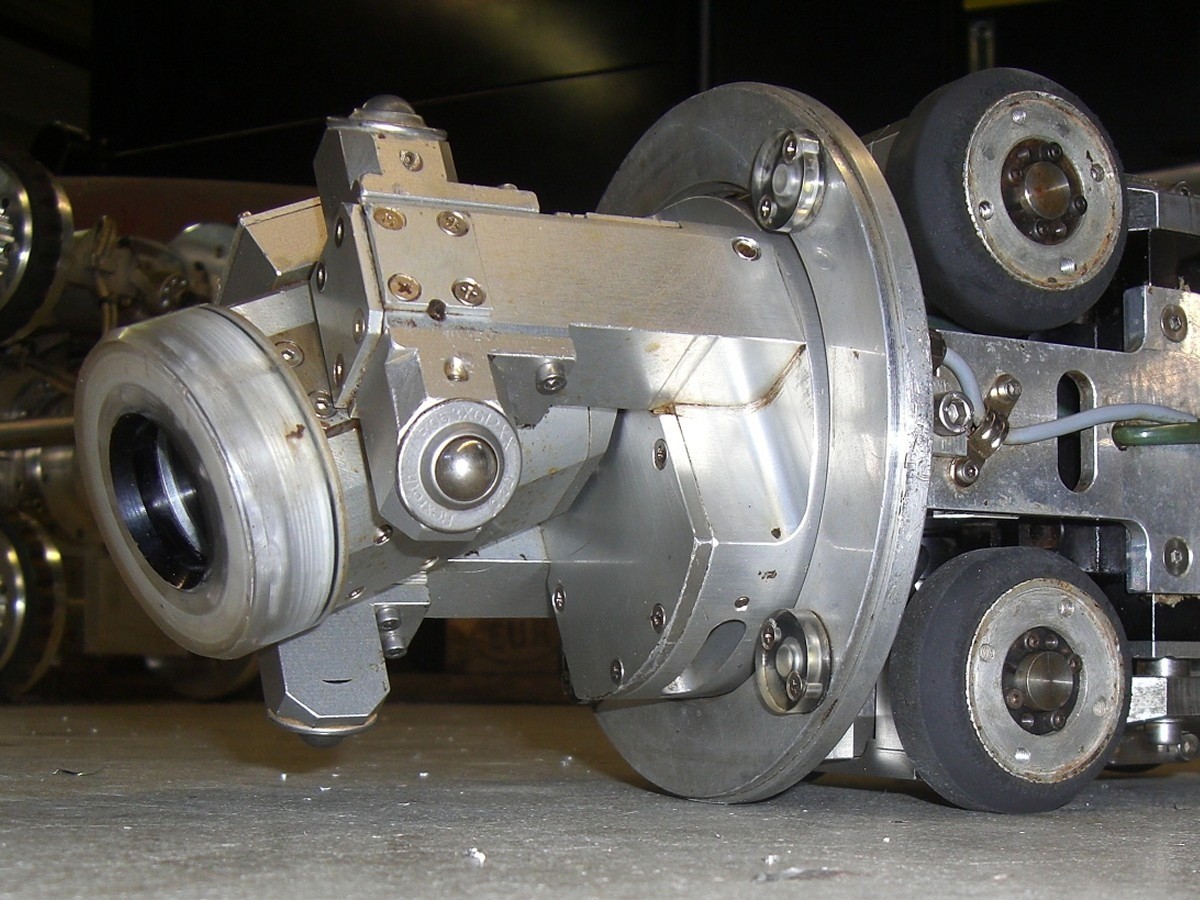

- Pan-and-tilt head, 360 degrees turn and 90 degrees tilt
- CCD colour camera with 10x optical zoom
- 24 or 48 LED ring
- Laser from Type 3000: defects over 2 mm, accuracy better than 0.1 mm
- Pipe profile and ovality software
- Electronic or glass fibre cable
- Modular: grinding, milling, ultrasound and eddy current add-ons
TECHNISCHE DATEN
Verifiziert| Mobilität | |
| Bewegungsart | Radbasiert |
|---|---|
| Geschwindigkeit | 0.2 km/h |
| Einsatzumgebung | Inside industrial pipe systems |
ROBOTER-FOREN
Foren werden geladen...
TECHNISCHE DATEN
Verifiziert| Mobilität | |
| Bewegungsart | Radbasiert |
|---|---|
| Geschwindigkeit | 0.2 km/h |
| Einsatzumgebung | Inside industrial pipe systems |
Bilder
martti
martti
martti
marttiBildbeiträge
Videos
ROBOTER-FOREN
Foren werden geladen...
BEWERTUNGEN
HÄUFIG GESTELLTE FRAGEN
What is the INSPECTOR Video and Laser Inspection Robot?
The INSPECTOR Video and Laser Inspection Robot is a self-propelled pipe crawler for pipe systems with many bends, vertical sections and branches, in lines up to 500 m long. It is sold in seven sizes from Type 1000 to Type 7000, covering inner diameters from 75 mm to 1,200 mm.
Who makes the INSPECTOR Video and Laser Inspection Robot?
The INSPECTOR Video and Laser Inspection Robot is made by Inspector Systems, a robotics company based in Germany.
How much does the INSPECTOR Video and Laser Inspection Robot cost?
Inspector Systems has not publicly announced pricing for the INSPECTOR Video and Laser Inspection Robot. You can enquire through RobotAIGeek for current pricing.
What is the INSPECTOR Video and Laser Inspection Robot used for?
The INSPECTOR Video and Laser Inspection Robot is designed for datenerfassung and inspektion. It is used in energie and fertigung settings.
How fast is the INSPECTOR Video and Laser Inspection Robot?
The INSPECTOR Video and Laser Inspection Robot can move at speeds of up to 0.2 km/h.
