Guoxing RXR-M120D

Shandong Guoxing Intelligent Technology
Mobile-RobotsChinaChinaVeröffentlicht

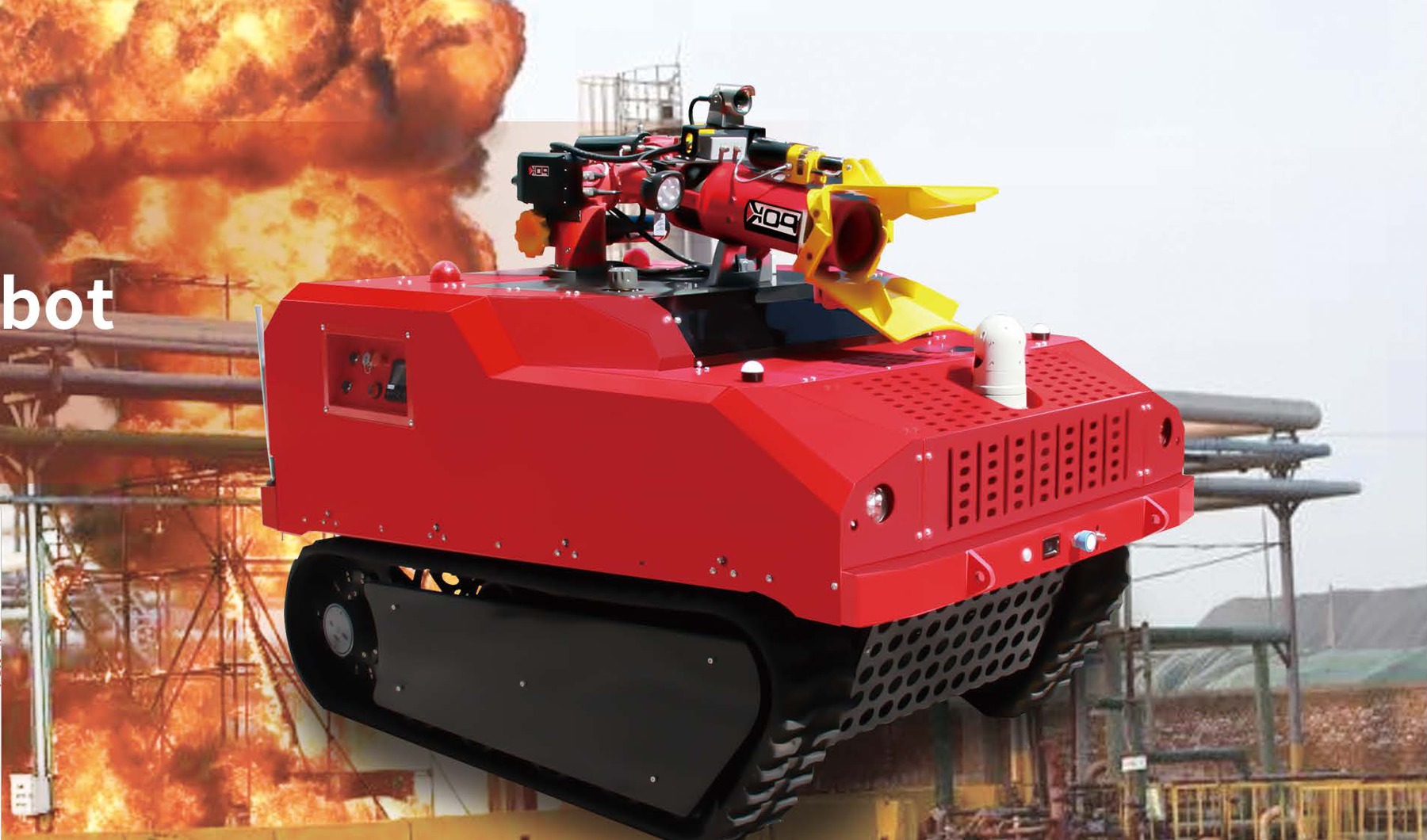

Guoxing RXR-M120D
Vergleichen
Quellen:
gxsuprobot.com
Branchen:
EnergieFertigungSicherheit & Patrouille
Anwendungen:
InspektionÜberwachungPetrochemical oil depot and refinery firesrailway tunnel fireslarge-span factory fireslong-duration fire attacktoxic gas and seismic incidents
Preis:
Nicht angekündigt

BESCHREIBUNG

The RXR-M120D sits just below Guoxing's flagship: 120 litres per second instead of 150, reaching 95 metres with water or 90 with foam, from a 2.2 tonne diesel machine on an ATV hydraulic rubber track chassis. What it gives up in flow it takes back in endurance — twelve hours of working time, the longest in the catalogue, which is the figure that matters at a tank farm fire that runs through the night. Its cannon traverses almost a full circle at -170 to +170 degrees. Like its larger sibling it replaces trailer-mounted monitors by driving its own to position, tows high-pressure hoses to where they are needed, and passes through standard doorways and wall openings while still being able to climb stairs and rotate in place. It carries fine mist self-protection, four kinds of optional gas detection and infrared temperature measurement.

FUNKTIONEN

  • Diesel-driven with an imported engine and maintenance-free water cooling
  • Up to 2400 x 1500 x 1900 mm and up to 2200 kg
  • Fire water cannon at 120 L/s, water and foam dual-purpose, range 90 metres with foam and 95 metres with water
  • Water cannon pitch from -10 to +90 degrees and horizontal rotation from -170 to +170 degrees
  • Working time of 12 hours or more, the longest in the range
  • Obstacle crossing height of 300 mm or more and climbing ability of 70% or more
  • Side tilt stability angle of 30 degrees or more
  • can climb stairs and rotate in place
  • Driving speed of 1.5 m/s or more on an ATV hydraulic rubber track chassis
  • Traction force of 10 kN or more
  • braking distance 0.3 m or less
  • straight running deviation 3% or less
  • Moderate size, able to pass through narrow doors and wall openings
  • Fine mist self-protection and spray water curtain cooling
  • Optional detection of 4 kinds of gas
  • infrared temperature measurement
  • LED high-brightness illumination, 2 in front and 2 in the rear
  • clearance obstacle and camera functions optional
  • Remote control distance 1000 m
  • control box 10 inches or more, 12 V / 24 VDC, up to 5 kg

TECHNISCHE DATEN

Physisch
Gewicht2200 kg
AbmessungenL 2.4 m × W 1.5 m × H 1.9 m
Mobilität
BewegungsartSonstige
Geschwindigkeit5.4 km/h
EinsatzumgebungLarge industrial fires, tunnels and refineries; through standard doorways; stairs
AktorenATV hydraulic rubber track chassis with an imported diesel engine and a 120 L/s water and foam cannon
Energie
Akkulaufzeit≥12 h
Sensorik & Rechenleistung
Sensorencameras, infrared temperature measurement, 4-gas detector (optional)
HerstellerangabeDrittquelleOhne QuelleDer Quellenstatus basiert auf den angegebenen Quellen dieses Roboters.

HÄUFIG GESTELLTE FRAGEN

What is the Guoxing RXR-M120D?

The RXR-M120D sits just below Guoxing's flagship: 120 litres per second instead of 150, reaching 95 metres with water or 90 with foam, from a 2.2 tonne diesel machine on an ATV hydraulic rubber track chassis.

Who makes the Guoxing RXR-M120D?

The Guoxing RXR-M120D is made by Shandong Guoxing Intelligent Technology, a robotics company based in China.

How much does the Guoxing RXR-M120D cost?

Shandong Guoxing Intelligent Technology has not publicly announced pricing for the Guoxing RXR-M120D. You can enquire through RobotAIGeek for current pricing.

What is the Guoxing RXR-M120D used for?

The Guoxing RXR-M120D is designed for inspektion, überwachung, petrochemical oil depot and refinery fires, and railway tunnel fires. It is used in energie, fertigung, and sicherheit & patrouille settings.

How much does the Guoxing RXR-M120D weigh?

The Guoxing RXR-M120D weighs 2,200 kg.

How fast is the Guoxing RXR-M120D?

The Guoxing RXR-M120D can move at speeds of up to 5.4 km/h.

What is the battery life of the Guoxing RXR-M120D?

The Guoxing RXR-M120D runs for ≥12 h on a charge.
