GPM-R20H
BESCHREIBUNG

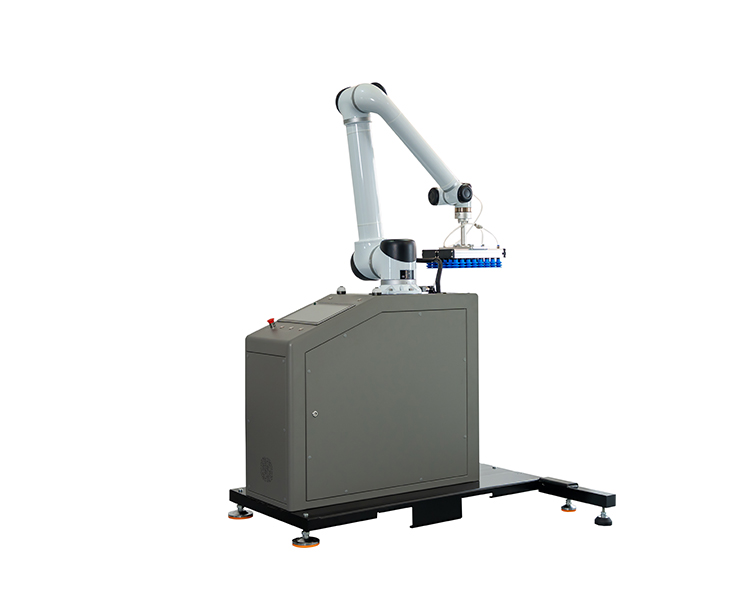

The Gurki GPM-R20H is a 20 kg-payload collaborative end-of-line palletizing workstation for cartons and other packaged goods. It combines a robot arm, lifting column, controls, pneumatics, and palletizing base in an integrated system.
FUNKTIONEN
- Touchscreen operation
- integrated robot, power, pneumatics, and lifting column
- manual or automatic pallet supply
- suction-cup or clamp gripper
- standalone use or integration with pallet feeders and conveyors. OEM specifications for GPM-R20H: 8–10 boxes per minute
- 20 kg load
- 1700 mm working radius
- 520 kg equipment weight
- palletizing height 300–2200 mm
- machine height 2250–2800 mm
- 3000 W at 220 V / 50 Hz
- protection rating not published
- compatible product size L200–600 × W200–600 × H100–600 mm. OEM states deployment within three hours and a footprint below 1 m²
- the ambiguous '1000×1200×140 mm covered area' row was not mapped to typed dimensions.
TECHNISCHE DATEN
| Physisch | |
| Gewicht | 520 kg |
|---|---|
| Traglast | 20 kg |
| Reichweite | 1.7 m |
| Mobilität | |
| Bewegungsart | Stationär |
| Manipulation | Mittel |
| Energie | |
| Akkulaufzeit | 3 hours |
TECHNISCHE DATEN
| Physisch | |
| Gewicht | 520 kg |
|---|---|
| Traglast | 20 kg |
| Reichweite | 1.7 m |
| Mobilität | |
| Bewegungsart | Stationär |
| Manipulation | Mittel |
| Energie | |
| Akkulaufzeit | 3 hours |
Bilder
martti
Bildbeiträge
ROBOTER-FOREN
Foren werden geladen...
BEWERTUNGEN
HÄUFIG GESTELLTE FRAGEN
What is the GPM-R20H?
The Gurki GPM-R20H is a 20 kg-payload collaborative end-of-line palletizing workstation for cartons and other packaged goods. It combines a robot arm, lifting column, controls, pneumatics, and palletizing base in an integrated system.
Who makes the GPM-R20H?
The GPM-R20H is made by Huizhou Gurki Intelligent Equipment Co., Ltd, a robotics company based in China.
How much does the GPM-R20H cost?
Huizhou Gurki Intelligent Equipment Co., Ltd has not publicly announced pricing for the GPM-R20H. You can enquire through RobotAIGeek for current pricing.
What is the GPM-R20H used for?
The GPM-R20H is designed for intralogistik, materialhandhabung, verpacken, and palettieren. It is used in fertigung settings.
What is the payload capacity of the GPM-R20H?
The GPM-R20H has a payload capacity of 20 kg and a reach of 1.7 m.
How much does the GPM-R20H weigh?
The GPM-R20H weighs 520 kg.
What is the battery life of the GPM-R20H?
The GPM-R20H runs for 3 hours on a charge.
