E0509

Doosan Robotics
Industrial-RobotSouth KoreaSouth KoreaVeröffentlicht

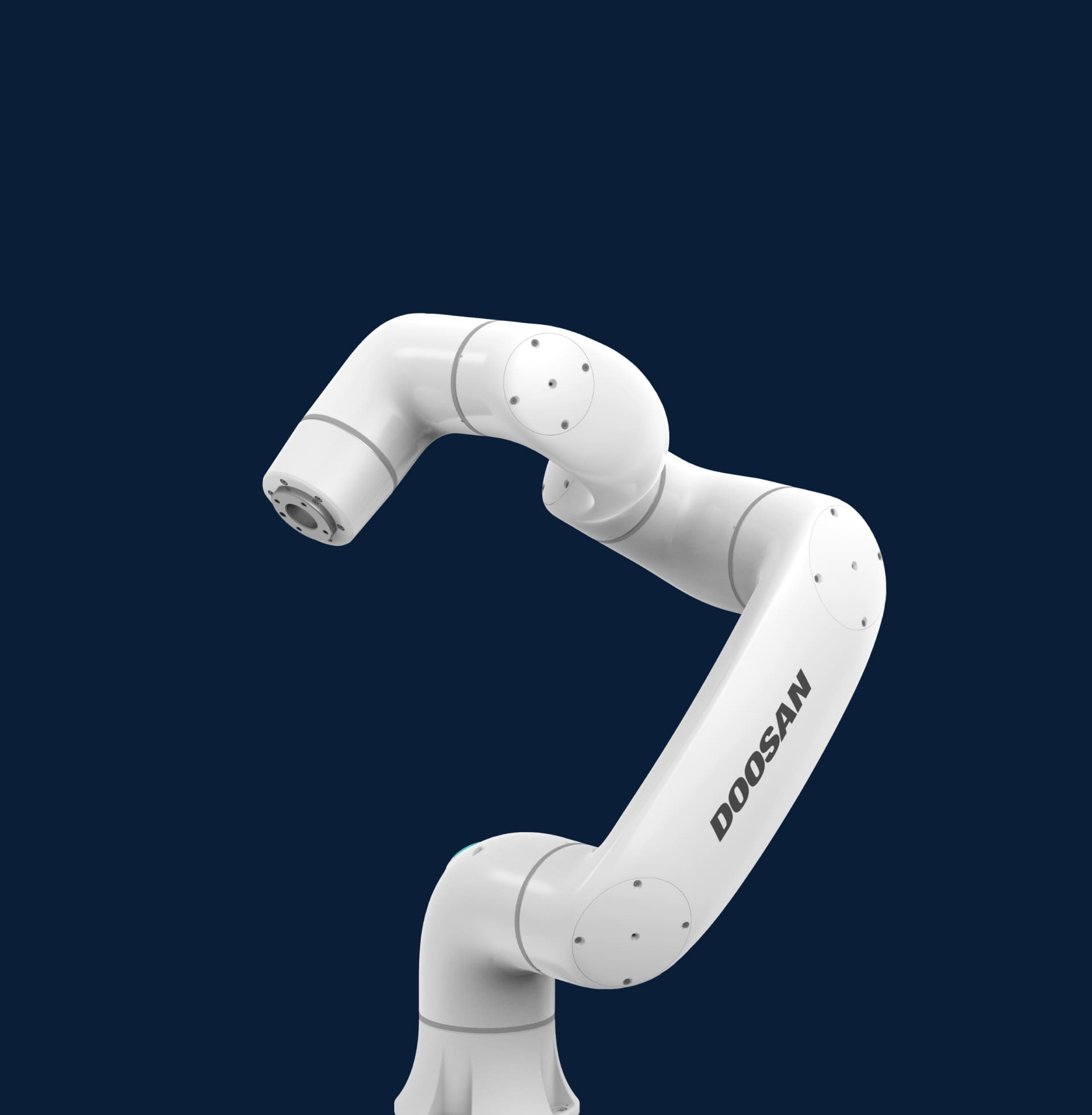

E0509
Vergleichen
Quellen:
doosanrobotics.com
Branchen:
GesundheitswesenFertigung
Anwendungen:
MontageLebensmittelhandhabungPick-and-PlaceInspektion
Preis:
Nicht angekündigt

BESCHREIBUNG

E0509 is Doosan's Edge-series collaborative arm optimized for food and beverage work. NSF certification and an IP66 rating support hygienic washdown without protective jackets, with compact single-box delivery aimed at fast installation and strong ROI.

FUNKTIONEN

  • 5 kg payload
  • 900 mm reach
  • ±0.05 mm repeatability
  • 22.5 kg manipulator weight
  • 6-axis
  • IP66
  • NSF Food Zone
  • Edge hygiene control without robot jackets
  • Compact packaging (~2/3 prior size) for easy install
  • DART-Suite programming
  • Doosan Mate end-of-arm ecosystem
  • Main applications: chicken frying
  • Coffee
  • Noodles
  • Ice cream
  • Beer

TECHNISCHE DATEN

Verifiziert
Physisch
Gewicht22.5 kg
Traglast5 kg
Reichweite900 mm
Wiederholgenauigkeit±0.05 mm
Mobilität
BewegungsartStationär
Freiheitsgrade6
HerstellerangabeDrittquelleOhne QuelleDer Quellenstatus basiert auf den angegebenen Quellen dieses Roboters.

Videos

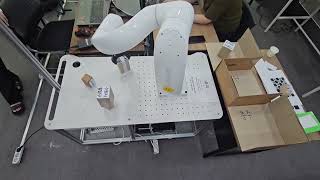

Doosan E0509 OCR-Based Parcel Sorting Robot (ENG SUB)
1:02
29. Juli 2026
Roboter-Video

Doosan E0509 OCR-Based Parcel Sorting Robot (ENG SUB)

Doosan Robotics

marttimarttiflag

HÄUFIG GESTELLTE FRAGEN

What is the E0509?

E0509 is Doosan's Edge-series collaborative arm optimized for food and beverage work. NSF certification and an IP66 rating support hygienic washdown without protective jackets, with compact single-box delivery aimed at fast installation and strong ROI.

Who makes the E0509?

The E0509 is made by Doosan Robotics, a robotics company based in South Korea.

How much does the E0509 cost?

Doosan Robotics has not publicly announced pricing for the E0509. You can enquire through RobotAIGeek for current pricing.

What is the E0509 used for?

The E0509 is designed for montage, lebensmittelhandhabung, pick-and-place, and inspektion. It is used in gesundheitswesen and fertigung settings.

What is the payload capacity of the E0509?

The E0509 has a payload capacity of 5 kg and a reach of 900 mm.

How much does the E0509 weigh?

The E0509 weighs 22.5 kg.

How many degrees of freedom does the E0509 have?

The E0509 has 6 degrees of freedom.
