BESCHREIBUNG
Brokk 100 ist ein Industrial-Robot von Brokk. Er ist für Materialhandhabung, Fernsteuerung, Remote-controlled demolition, breaking and crushing ausgelegt. Eckdaten: 990 kg.

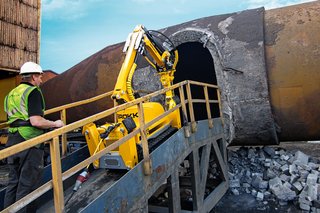

The Brokk 100 is a compact, electrically powered, remote-controlled demolition robot from Brokk of Skellefteå, Sweden. On tracks and weighing 990 kg without its tool, it carries a hydraulic arm that drives a breaker, concrete crusher or other attachment, while the operator walks alongside with a portable radio control box and stays clear of debris and dust. An ABB 15 kW electric motor (400 V/50 Hz, 32 A, or 16 A at reduced power) drives a variable load-sensing piston pump feeding a 45-litre hydraulic system at 17.5 MPa and up to 50 l/min at 50 Hz or 60 l/min at 60 Hz. The arm system slews through 360 degrees in 10 seconds, the robot travels at up to 2.5 km/h and climbs inclines of up to 30 degrees, and it is rated at 86 dB(A) sound power. With no exhaust it suits indoor and confined work, from building interiors to metal-industry relining such as de-bricking torpedo cars. Brokk has since dropped the Brokk 100 from its range in favour of the Brokk 110 and 110+, but still services and supports existing machines.
FUNKTIONEN
- Remote-controlled demolition robot on tracks
- ABB 15 kW electric motor, 400 V/50 Hz, 32 A (16 A at reduced power)
- Soft start or direct start
- Variable load-sensing piston pump
- 17.5 MPa system pressure
- 45 l hydraulic system
- pump flow up to 50 l/min (50 Hz) or 60 l/min (60 Hz)
- Slewing speed 10 s per 360 degrees
- Transport speed up to 2.5 km/h (0.7 m/s)
- Climbs inclines up to 30 degrees
- Portable control box with digital radio control
- 990 kg base machine without attachment
- Sound power level 86 dB(A) (2000/14/EC)
- Takes hydraulic breakers (SB 152 shown) and concrete crushers
TECHNISCHE DATEN
Verifiziert| Physisch | |
| Gewicht | 990 kg |
|---|---|
| Mobilität | |
| Bewegungsart | Sonstige |
| Geschwindigkeit | 2.5 km/h |
| Einsatzumgebung | Indoor and outdoor demolition sites, confined spaces, metal and process industry |
| Aktoren | Hydraulic: 45 l system, 17.5 MPa, up to 50 l/min (50 Hz) or 60 l/min (60 Hz) |
| Energie | |
| Ladeart | Mains-powered electric motor (400 V/50 Hz) |
| Sensorik & Rechenleistung | |
| Konnektivität | Digital radio link to a portable control box |
ROBOTER-FOREN
Foren werden geladen...
TECHNISCHE DATEN
Verifiziert| Physisch | |
| Gewicht | 990 kg |
|---|---|
| Mobilität | |
| Bewegungsart | Sonstige |
| Geschwindigkeit | 2.5 km/h |
| Einsatzumgebung | Indoor and outdoor demolition sites, confined spaces, metal and process industry |
| Aktoren | Hydraulic: 45 l system, 17.5 MPa, up to 50 l/min (50 Hz) or 60 l/min (60 Hz) |
| Energie | |
| Ladeart | Mains-powered electric motor (400 V/50 Hz) |
| Sensorik & Rechenleistung | |
| Konnektivität | Digital radio link to a portable control box |
Bilder
martti
Bildbeiträge
Videos
ROBOTER-FOREN
Foren werden geladen...
BEWERTUNGEN
HÄUFIG GESTELLTE FRAGEN
What is the Brokk 100?
The Brokk 100 is a compact, electrically powered, remote-controlled demolition robot from Brokk of Skellefteå, Sweden. On tracks and weighing 990 kg without its tool, it carries a hydraulic arm that drives a breaker, concrete crusher or other attachment, while the operator walks alongside with a portable radio control…
Who makes the Brokk 100?
The Brokk 100 is made by Brokk, a robotics company based in Sweden.
How much does the Brokk 100 cost?
Brokk has not publicly announced pricing for the Brokk 100. You can enquire through RobotAIGeek for current pricing.
What is the Brokk 100 used for?
The Brokk 100 is designed for materialhandhabung, fernsteuerung, remote-controlled demolition, breaking and crushing, and refractory removal. It is used in bauwesen, fertigung, and demolition, metal processing, process industry relining settings.
How much does the Brokk 100 weigh?
The Brokk 100 weighs 990 kg.
How fast is the Brokk 100?
The Brokk 100 can move at speeds of up to 2.5 km/h.
