BESCHREIBUNG

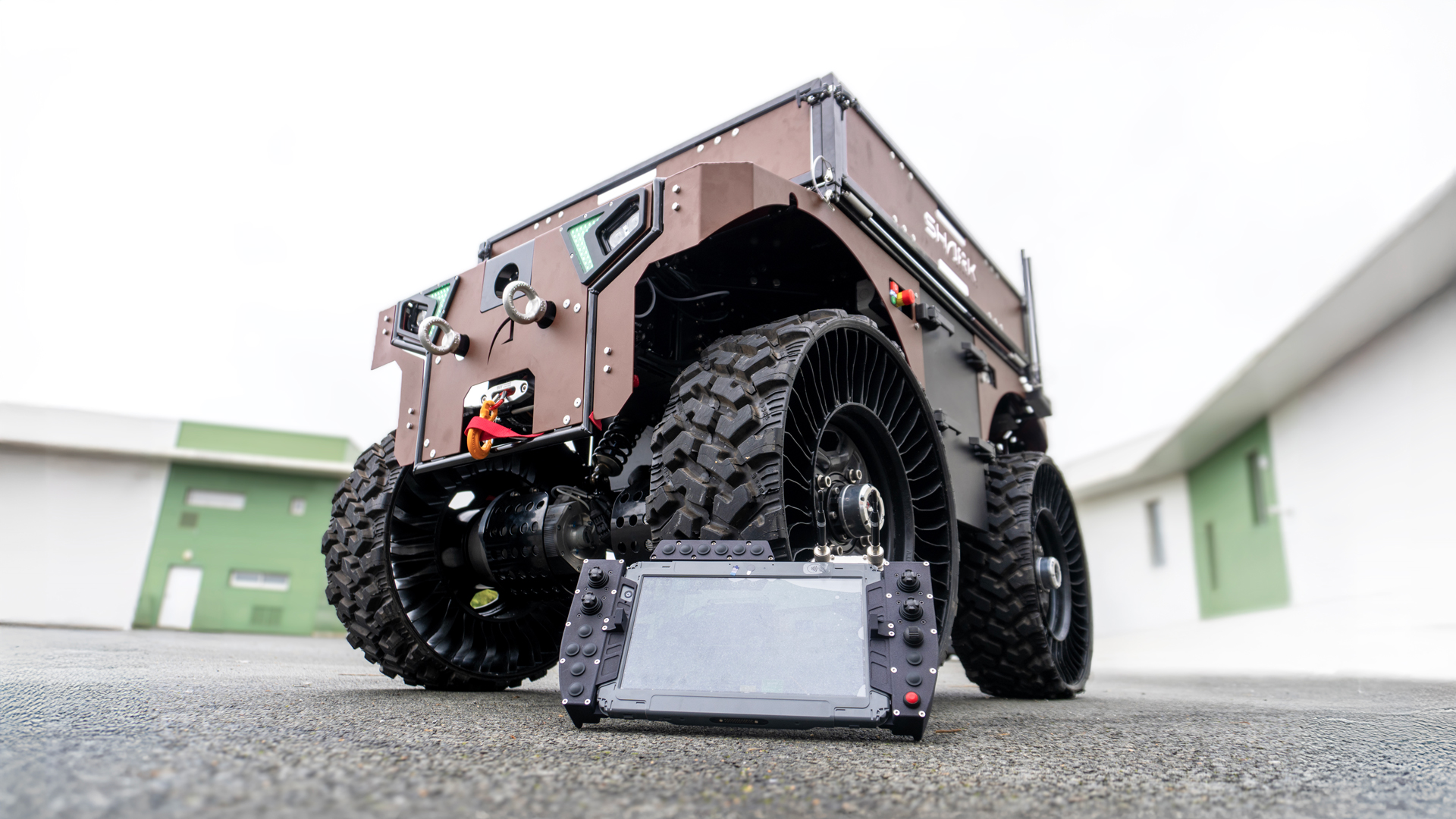

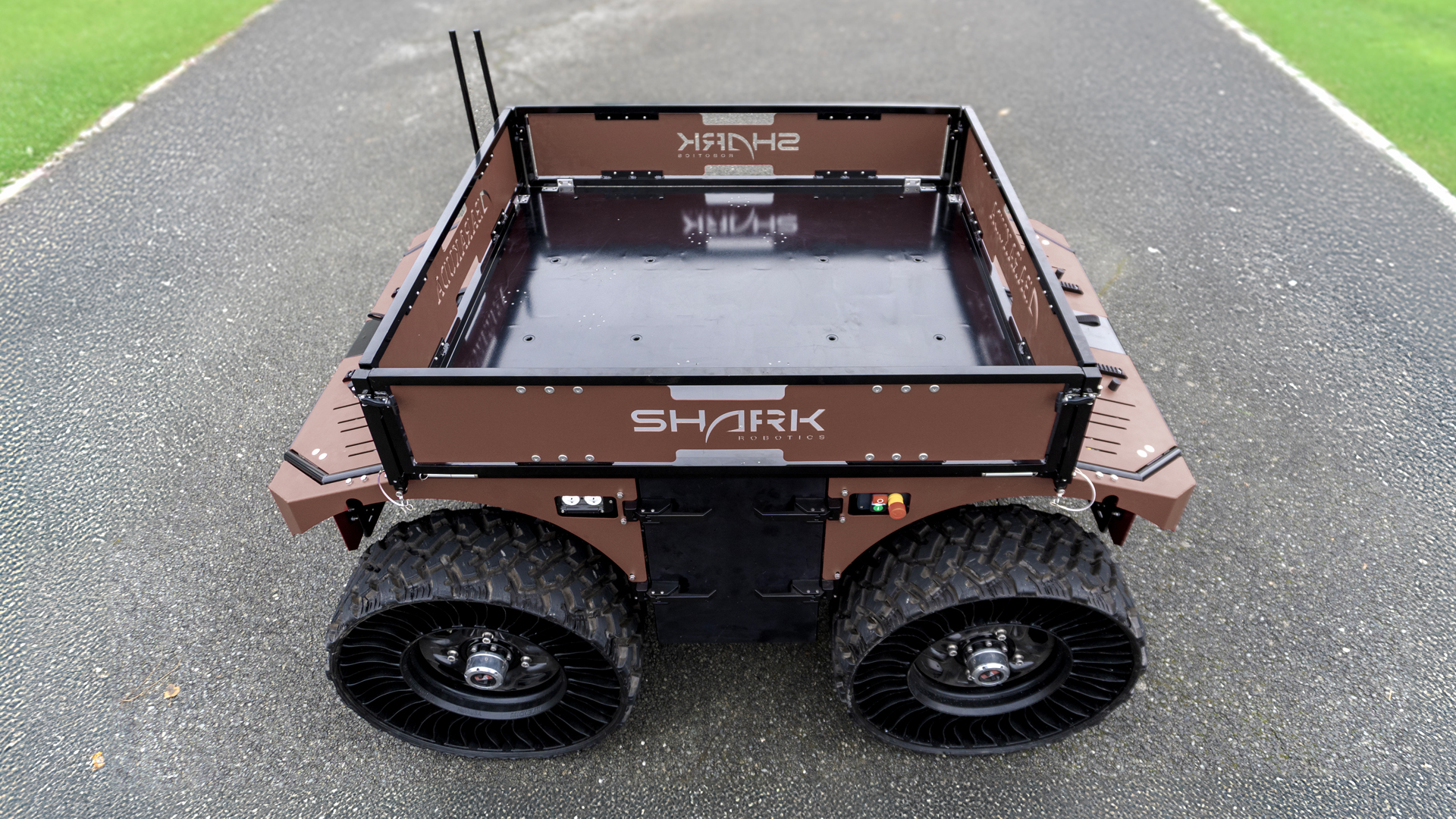

Barakuda is an all-terrain wheeled mule robot from Shark Robotics of La Rochelle, France, built to carry equipment for defence, security and emergency teams over ground that would exhaust a person. Four 2,200 W electric motors on puncture-proof Michelin tires move a 500 kg payload at up to 20 km/h, tow a further 1,100 kg, clear 30 cm obstacles and hold 40-degree slopes with 35 degrees of side slope. The 590 kg platform measures 185 x 120 x 110 cm, is sealed to IP65 and runs 10 hours on four UN38.3-certified lithium-ion packs, recharging in 3 h 30 on its dock. It is driven from the Shark Station remote at roughly 1,000 m line of sight and exposes a ROS 2 / UDP interface for integration into an external autonomy stack. Source: https://www.shark-robotics.com/barakuda-mule-robot
FUNKTIONEN
- 500 kg payload and 1,100 kg towing capacity for heavy logistics support
- 4 x 2,200 W electric motors on puncture-proof Michelin tires
- 20 km/h top speed

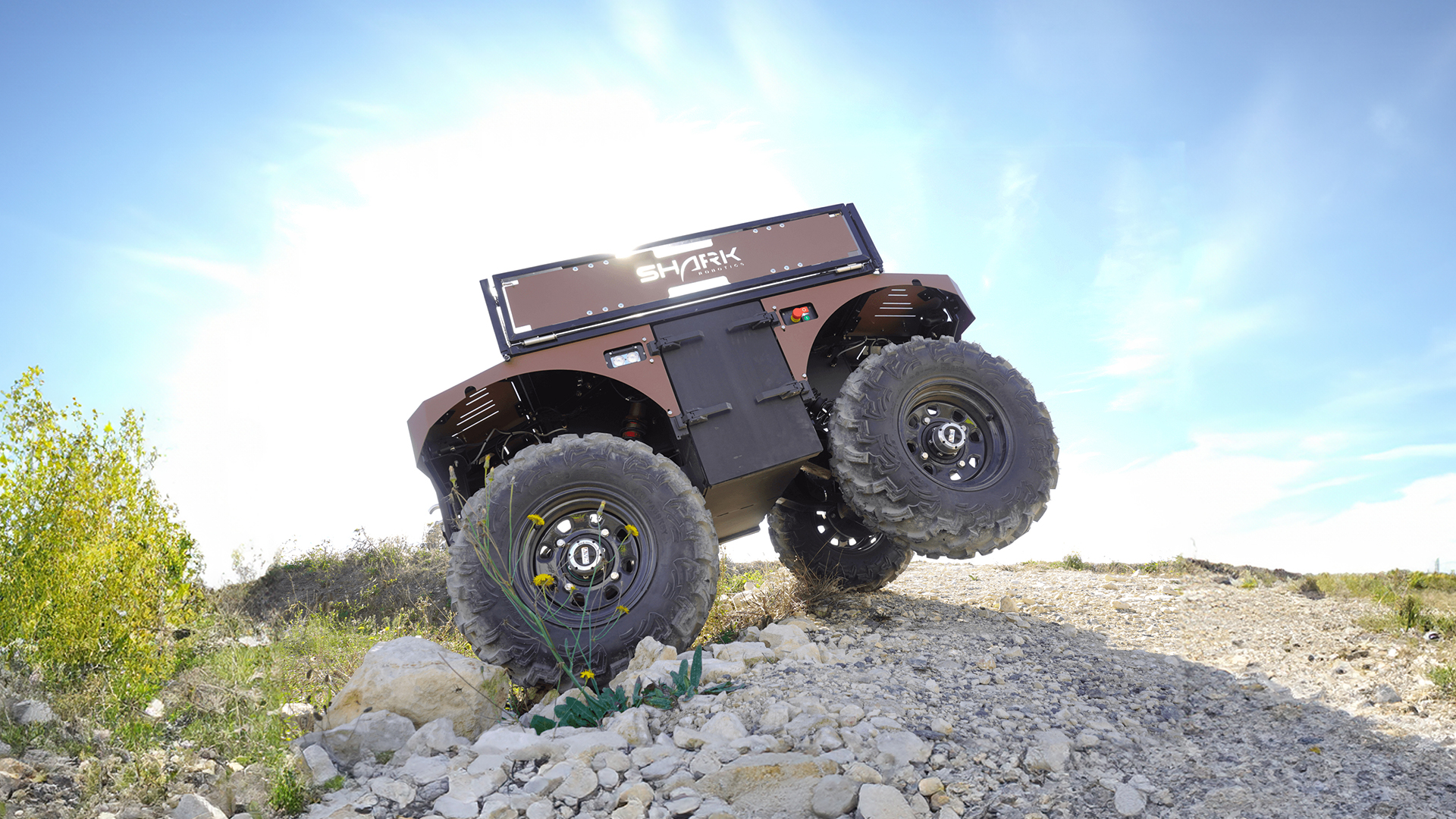

- 40-degree slope and 35-degree side slope capability
- clears 30 cm obstacles
- 10-hour operational autonomy from 4 x UN38.3 lithium-ion packs
- 3 h 30 dock recharge
- ROS 2 / UDP external control interface for third-party autonomy stacks
- IP65 sealing, shock absorbers, front and rear cameras, 10,500 lm lighting, 110 dB alarm
TECHNISCHE DATEN
Verifiziert| Physisch | |
| Gewicht | 590 kg |
|---|---|
| Abmessungen | L 1.85 m × W 1.2 m × H 1.1 m |
| Traglast | 500 kg |
| Mobilität | |
| Bewegungsart | Radbasiert |
| Geschwindigkeit | 20 km/h |
| Einsatzumgebung | IP65 sealed; all-terrain outdoor operation, 40 deg slopes, 30 cm obstacles |
| Energie | |
| Akkulaufzeit | 10 hours |
TECHNISCHE DATEN
Verifiziert| Physisch | |
| Gewicht | 590 kg |
|---|---|
| Abmessungen | L 1.85 m × W 1.2 m × H 1.1 m |
| Traglast | 500 kg |
| Mobilität | |
| Bewegungsart | Radbasiert |
| Geschwindigkeit | 20 km/h |
| Einsatzumgebung | IP65 sealed; all-terrain outdoor operation, 40 deg slopes, 30 cm obstacles |
| Energie | |
| Akkulaufzeit | 10 hours |
Bilder
martti
martti
martti
martti
martti
martti
martti
marttiBildbeiträge
ROBOTER-FOREN
Foren werden geladen...
BEWERTUNGEN
HÄUFIG GESTELLTE FRAGEN
What is the Barakuda?
Barakuda is an all-terrain wheeled mule robot from Shark Robotics of La Rochelle, France, built to carry equipment for defence, security and emergency teams over ground that would exhaust a person.
Who makes the Barakuda?
The Barakuda is made by Shark Robotics, a robotics company based in France.
How much does the Barakuda cost?
Shark Robotics has not publicly announced pricing for the Barakuda. You can enquire through RobotAIGeek for current pricing.
What is the Barakuda used for?
The Barakuda is designed for erkundung, überwachung, and transport. It is used in verteidigung, sonstige, and sicherheit & patrouille settings.
What is the payload capacity of the Barakuda?
The Barakuda has a payload capacity of 500 kg.
How much does the Barakuda weigh?
The Barakuda weighs 590 kg.
How fast is the Barakuda?
The Barakuda can move at speeds of up to 20 km/h.
What is the battery life of the Barakuda?
The Barakuda runs for 10 hours on a charge.
