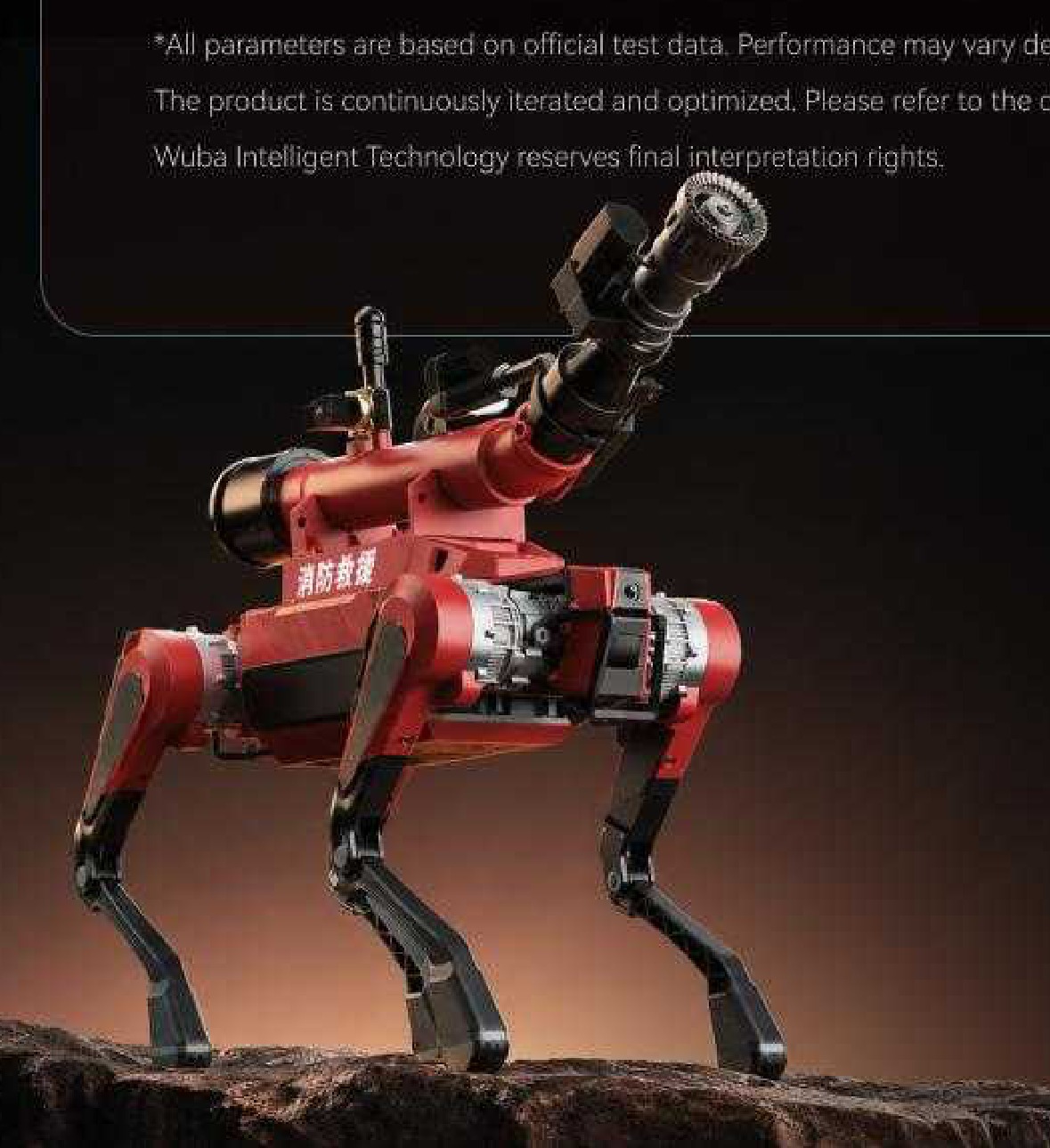

The Fire Extinguishing dog is the heaviest machine on WUBA's large quadruped platform at 85 kg or less, and the extra mass is the fire monitor it carries: a water cannon reaching up to 55 metres, adjustable in pitch across 10 to 50 degrees or 20 to 60 degrees depending on configuration, and available at three flow rates of 20, 30 or 40 litres per second. That combination lets it stand off from a fire and still reach it, which is the entire point of sending a robot rather than a person. The platform underneath matches its siblings — 1100 mm long, 7.2 km/h, 30-degree slopes and stairs, two hours or more of endurance, and radio, WiFi or optional cellular communications — and it is rated to work from -20 to 50 degrees Celsius.
功能特色
- Total weight 85 kg or less, the heaviest of the platform
- Standing dimensions up to 1100 (L) x 490 (W) x 1000 (H) mm
- Fire monitor range up to 55 metres
- Fire monitor flow rate options: 20 L/s, 30 L/s or 40 L/s
- Fire monitor pitch adjustment: 10 to 50 degrees, or 20 to 60 degrees
- Maximum speed 7.2 km/h
- Maximum slope climbing incline 30 degrees or more
- stair-climbing angle 30 degrees or more
- Endurance 2 hours or more
- Working temperature -20 to 50 degrees Celsius
- Communication options: 4G, 5G, WiFi and radio (optional)
技術規格
| 物理參數 | |
| 重量 | 85 kg |
|---|---|
| 外形尺寸 | L 1.1 m × W 490 mm × H 1 m |
| 移動能力 | |
| 移動類型 | 四足動物 |
| 速度 | 7.2 km/h |
| 作業環境 | Fire scenes and hazardous environments; -20 to 50 degrees Celsius |
| 致動器 | Large legged quadruped carrying an adjustable fire monitor |
| 電源與續航 | |
| 續航時間 | ≥2 h |
技術規格
| 物理參數 | |
| 重量 | 85 kg |
|---|---|
| 外形尺寸 | L 1.1 m × W 490 mm × H 1 m |
| 移動能力 | |
| 移動類型 | 四足動物 |
| 速度 | 7.2 km/h |
| 作業環境 | Fire scenes and hazardous environments; -20 to 50 degrees Celsius |
| 致動器 | Large legged quadruped carrying an adjustable fire monitor |
| 電源與續航 | |
| 續航時間 | ≥2 h |
圖片
martti
圖片貢獻
影片
機器人論壇
正在載入論壇...
評分
常見問題
What is the WUBA Fire Extinguishing Robotic Dog?
The Fire Extinguishing dog is the heaviest machine on WUBA's large quadruped platform at 85 kg or less, and the extra mass is the fire monitor it carries: a water cannon reaching up to 55 metres, adjustable in pitch across 10 to 50 degrees or 20 to 60 degrees depending on configuration, and available at three flow rate…
Who makes the WUBA Fire Extinguishing Robotic Dog?
The WUBA Fire Extinguishing Robotic Dog is made by WUBA Intelligent Technology, a robotics company based in China.
How much does the WUBA Fire Extinguishing Robotic Dog cost?
WUBA Intelligent Technology has not publicly announced pricing for the WUBA Fire Extinguishing Robotic Dog. You can enquire through RobotAIGeek for current pricing.
What is the WUBA Fire Extinguishing Robotic Dog used for?
The WUBA Fire Extinguishing Robotic Dog is designed for 檢查, 監測, firefighting from standoff distance, and industrial and warehouse fire response. It is used in 能源, 製造業, and 安全 settings.
How much does the WUBA Fire Extinguishing Robotic Dog weigh?
The WUBA Fire Extinguishing Robotic Dog weighs 85 kg.
How fast is the WUBA Fire Extinguishing Robotic Dog?
The WUBA Fire Extinguishing Robotic Dog can move at speeds of up to 7.2 km/h.
What is the battery life of the WUBA Fire Extinguishing Robotic Dog?
The WUBA Fire Extinguishing Robotic Dog runs for ≥2 h on a charge.
